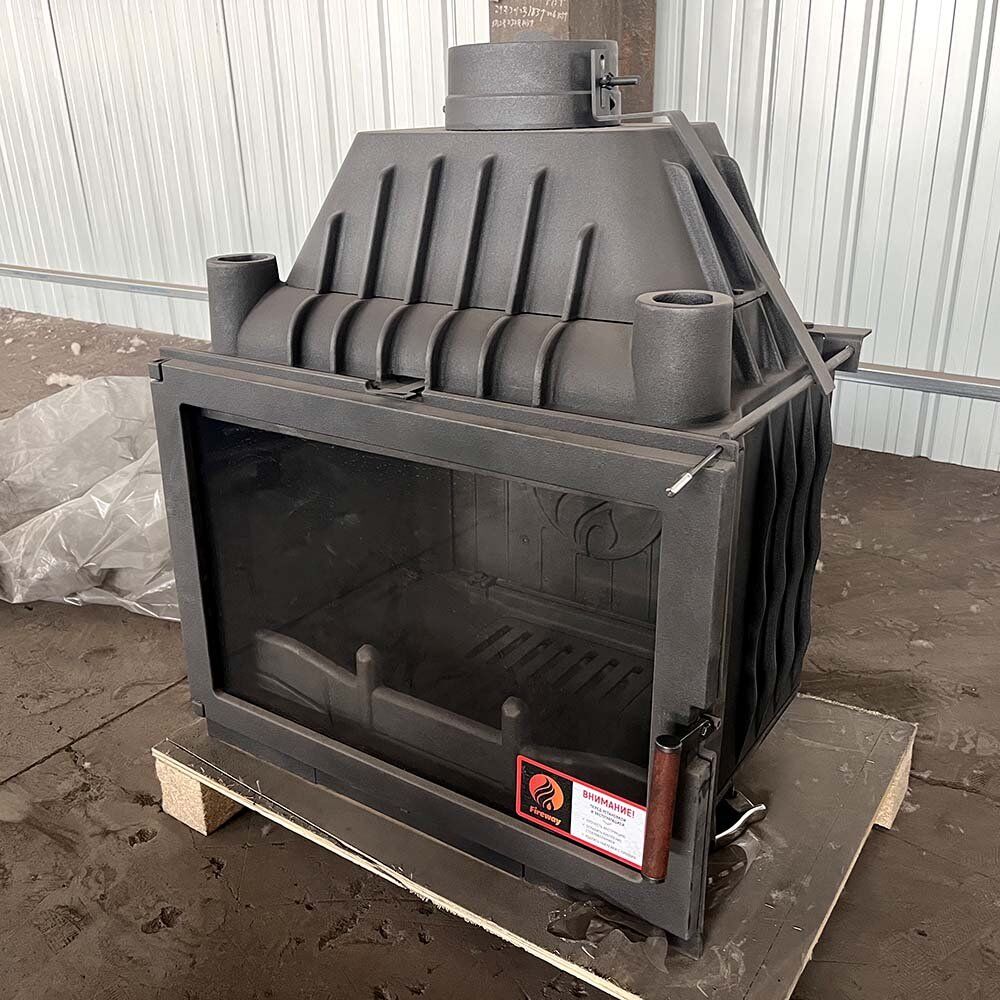

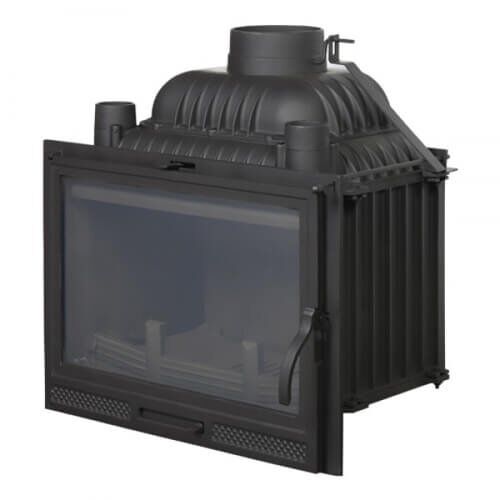

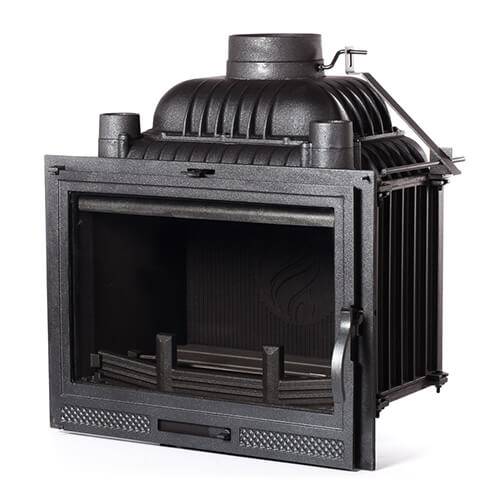

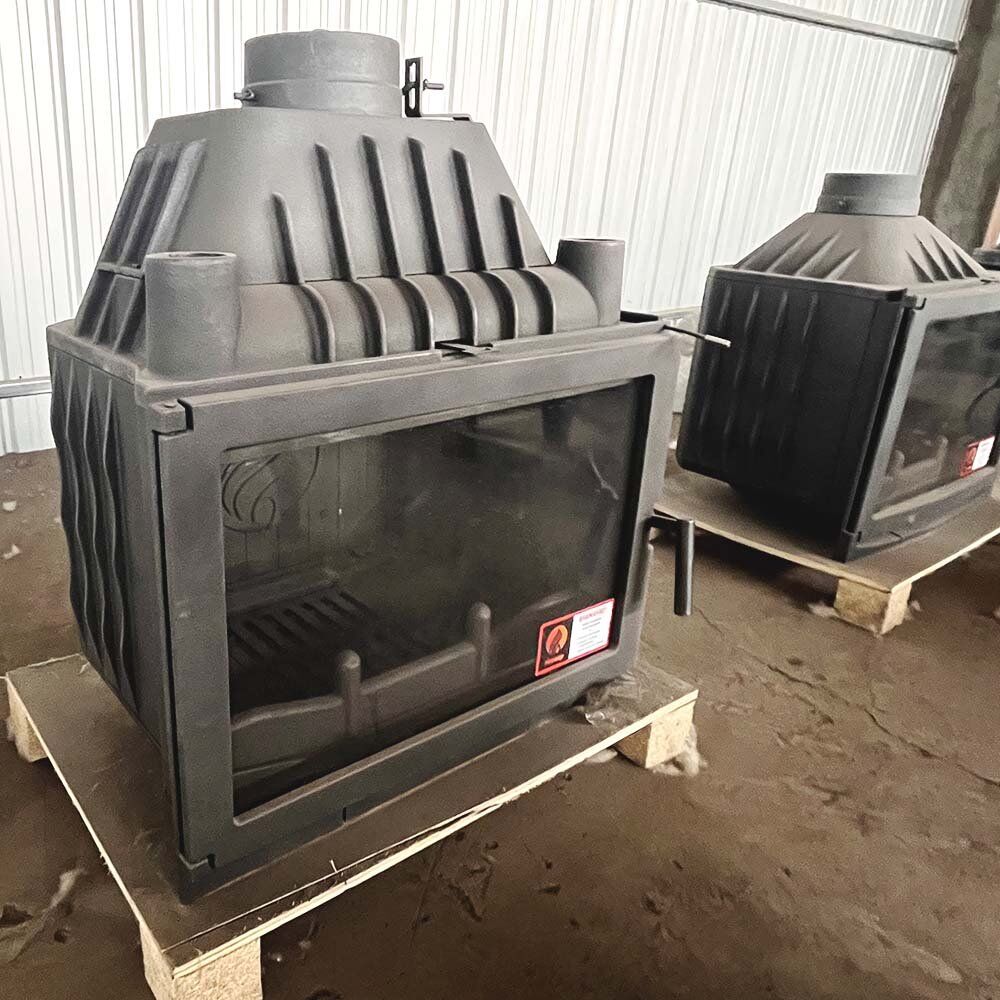

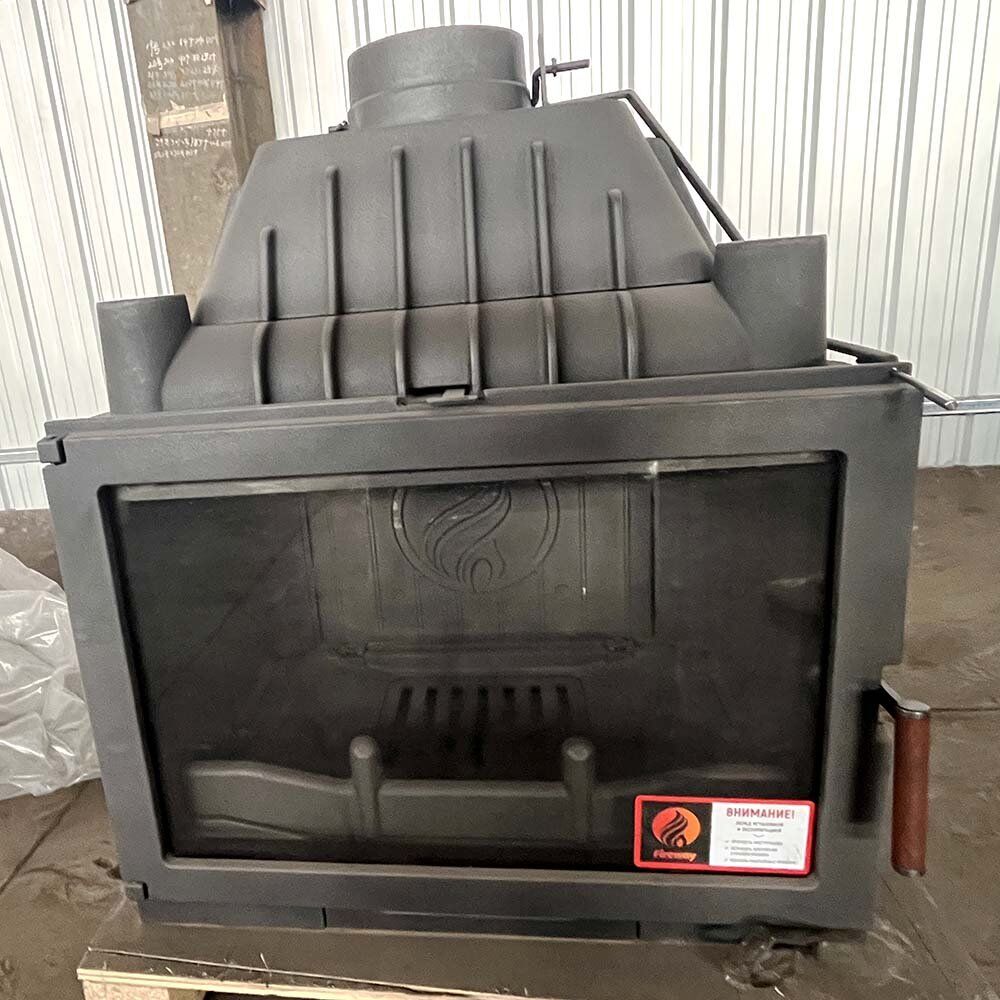

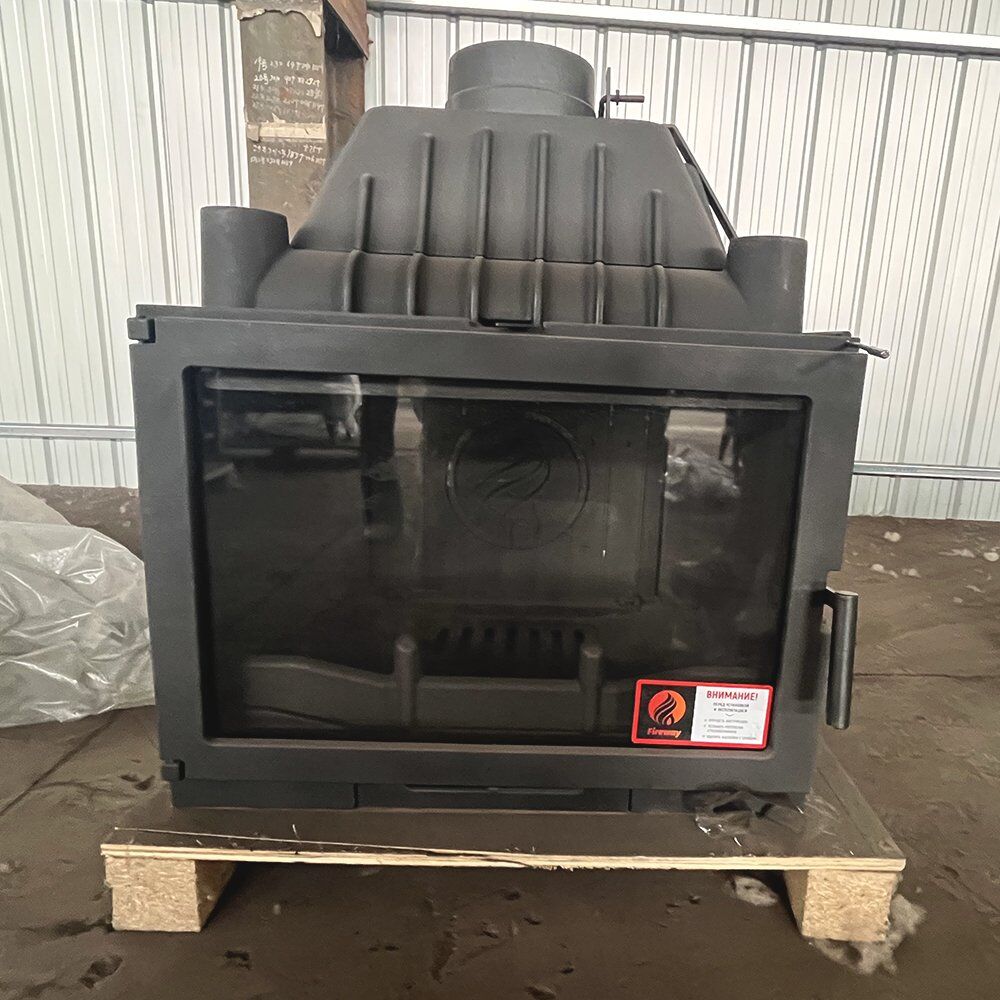

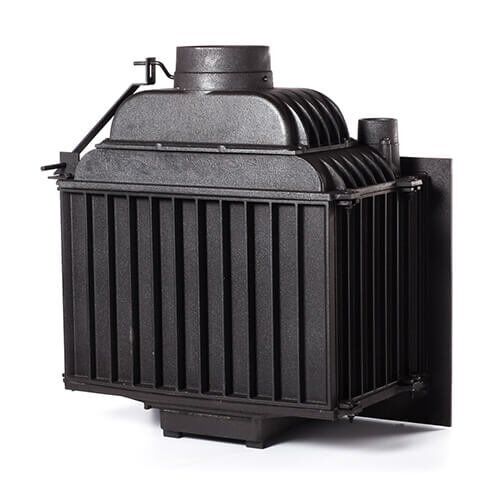

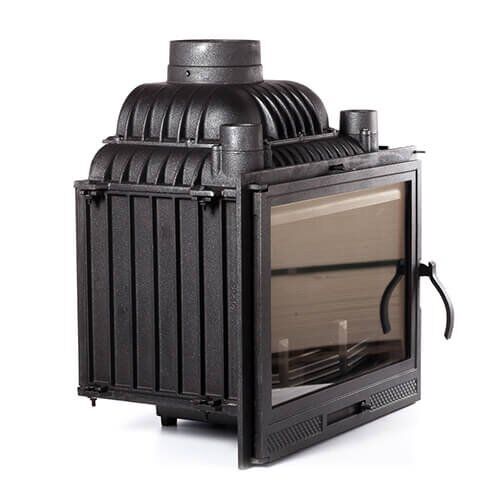

Manufactured from high-strength cast iron, this fireplace insert delivers a nominal heat output of 14 kW and is capable of heating
spaces up to 280 m³ under proper insulation conditions.
Equipped with a shutter damper system, external air intake, and a durable flat ceramic glass door,
the Main fireplace insert achieves an efficiency of up to 75%, ensuring stable combustion,
reduced fuel consumption, and compliance with Ecodesign requirements.
Key Features
- EN13240 and EN16510 certified cast iron fireplace insert
- Ecodesign compliant for the European market
- High thermal output of 14 kW
- Efficiency up to 75% with dry wood fuel
- Durable cast iron construction with groove-and-bolt assembly
- Shutter damper for precise combustion control
- External air intake system (two Ø80 mm air inlets)
- Front-loading firewood design
- Heat-resistant flat ceramic glass with self-cleaning airflow
- Anthracite black finish suitable for modern and classic interiors
Technical Specifications
| Heating Power | 14 kW |
|---|---|
| Efficiency | 75% |
| Heated Volume | Up to 280 m³ |
| Heated Area | Up to 140 m² |
| Material | Cast Iron |
| Weight | 184 kg |
| Dimensions (W × H × D) | 700 × 840 × 490 mm |
| Flue Outlet Diameter | 180 mm |
| Flue Connection | Top |
| Glass Size | 614 × 404 × 5 mm |
| Door Opening | Side opening |
| Fuel Type | Wood logs |
| Finish Color | Black (Anthracite) |
| Packaging Size (W × D × H) | 730 × 650 × 900 mm |
Installation and Usage Guidelines
Installation must be performed by a qualified professional in accordance with local building regulations.
A 180 mm chimney system and adequate external air supply are required.
- Connect to a compliant flue system
- Ensure sufficient external combustion air
- Use only dry, seasoned firewood
- Clean ash drawer and chimney regularly
Customer Reviews
★★★★★ Excellent heating performance
Solid cast iron build, efficient combustion and stable output.
★★★★★ Reliable and durable
Works perfectly with external air intake and modern chimney systems.
Frequently Asked Questions (FAQ)
Is this fireplace insert Ecodesign compliant?
Yes. The Main model fully complies with Ecodesign, EN13240 and EN16510 standards.
What fuel can be used?
This fireplace insert is designed exclusively for dry wood logs.
Can it take air from outside?
Yes. Two Ø80 mm external air connections are integrated.
What room size is suitable?
Up to 140 m² or 280 m³ depending on insulation.
