| Heat Output | 12 kW |
|---|---|
| Coverage Volume | 250 m³ |
| Efficiency | 82% |
| Dimensions (W × D × H) | 722 × 555 × 840 mm |
| Weight | 240 kg |
| Chimney Connection | Rear; diameter 150 mm |
| Burn Technology | Double combustion + airwash |
| Thermal System | Infrared cast-iron + convection panel |

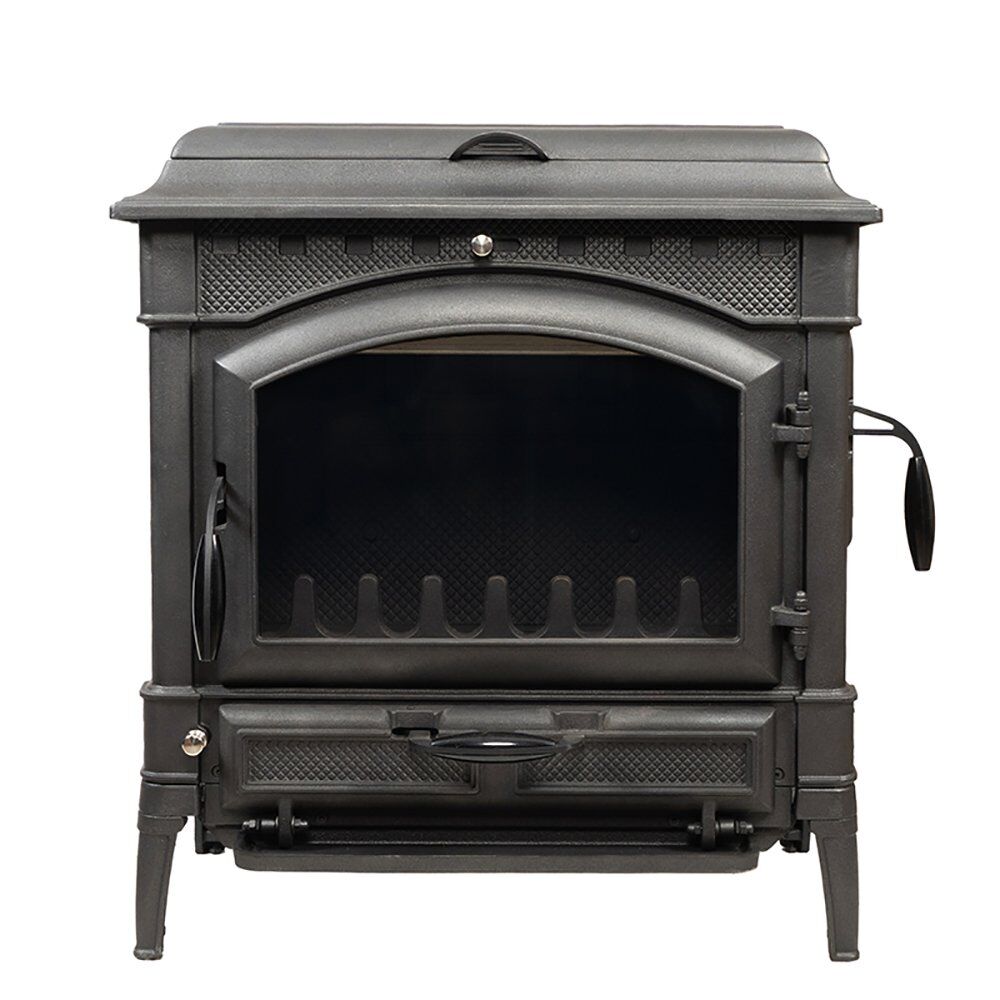

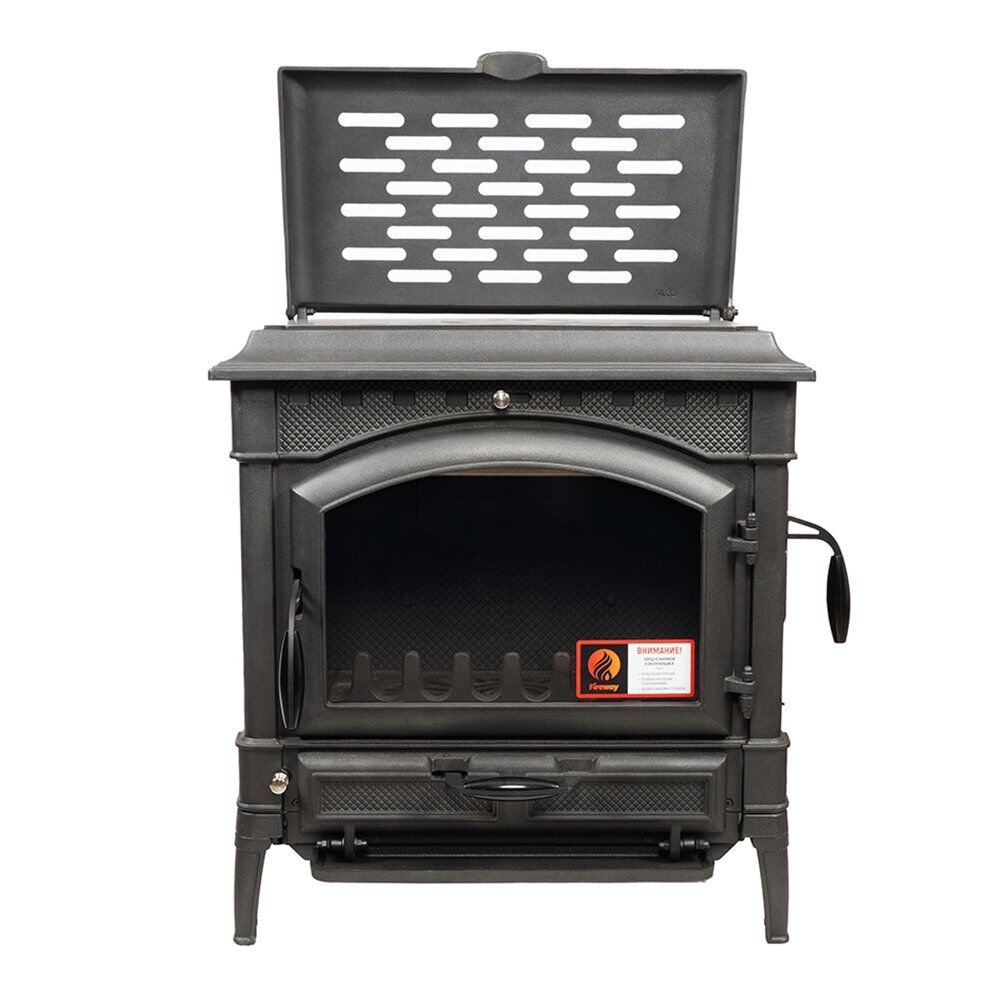

The Jazz II is a high-performance cast iron stove, certified to EN13240 and EN16510 standards and Ecodesign compliant. With a heating capacity of 12 kW, it efficiently warms spaces up to 250 m³. Its rear chimney connection allows flexible installation, and the stove supports long logs up to 50 cm. Constructed with premium cast iron (СЧ20), Jazz II offers durability, excellent heat retention, and elegant design suitable for any interior.
| Specification | Value |
|---|---|
| Power | 12 kW |
| Heated Volume | 250 m³ |
| Height | 840 mm |
| Width | 743 mm |
| Depth | 495 mm |
| Weight | 240 kg |
| Chimney Diameter | 150 mm |
| Chimney Outlet | Rear |
| Fuel Type | Wood |
| Efficiency | 82% |
| Max Log Length | 50 cm |
| Material | Cast iron СЧ20 |

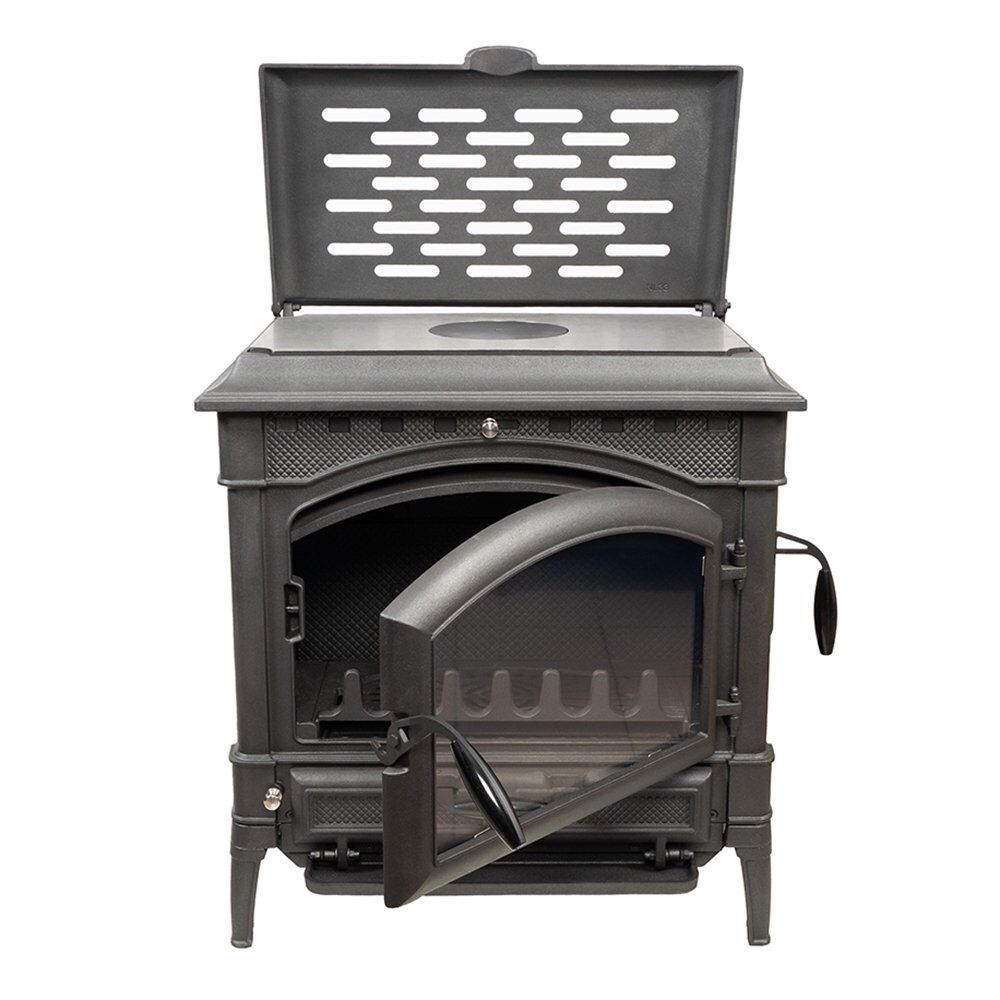

| Glass Door | Yes |

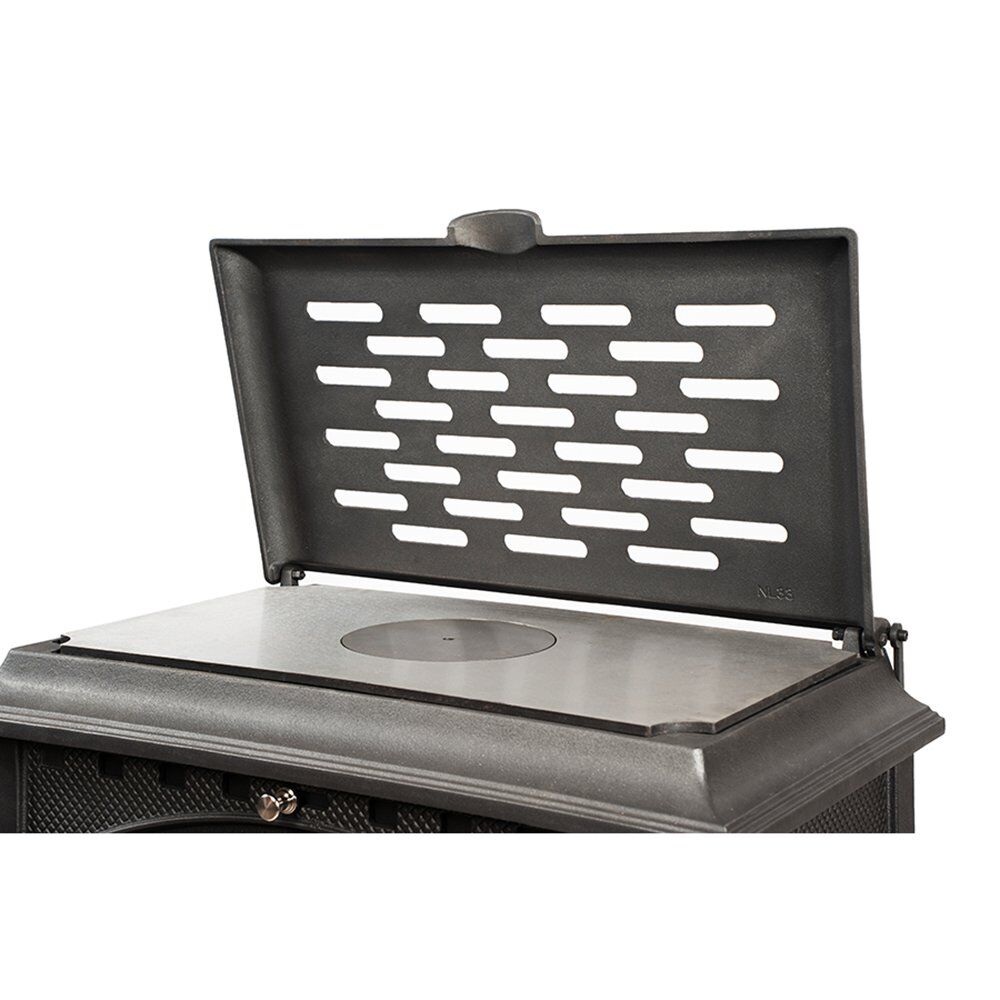

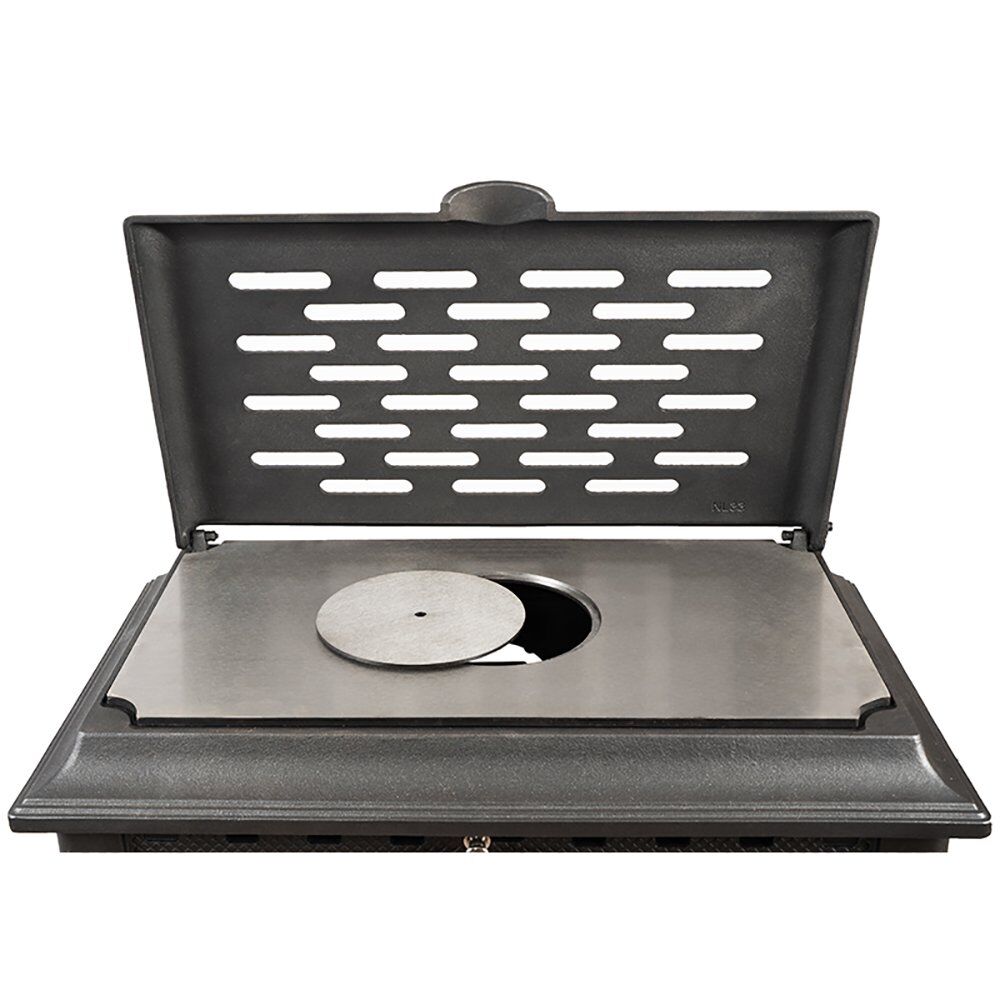

| Cooking Surface | Yes |
| Placement | Against wall |
Install Jazz II on a non-combustible surface with sufficient clearance from walls. Connect to a 150 mm diameter rear chimney flue. Use seasoned wood only, with logs up to 50 cm in length. Regularly clean the ash and chimney to maintain optimal efficiency. Follow local fire and safety regulations for installation.
John D.: “Jazz II is a robust stove with excellent heat output. Easy to install and the glass window gives a cozy fire view.”
Maria S.: “Highly satisfied with the stove. It heats my 250 m³ room efficiently and the cooking surface is a nice bonus.”
Q1: Can Jazz II burn different types of wood?
A1: Yes, Jazz II is optimized for seasoned hardwood, but softwood can also be used.
Q2: What is the warranty period?
A2: Jazz II comes with a 60-month warranty covering manufacturing defects.
Q3: Can it be installed in corners?
A3: Yes, but ensure proper clearance from combustible materials as per safety guidelines.
