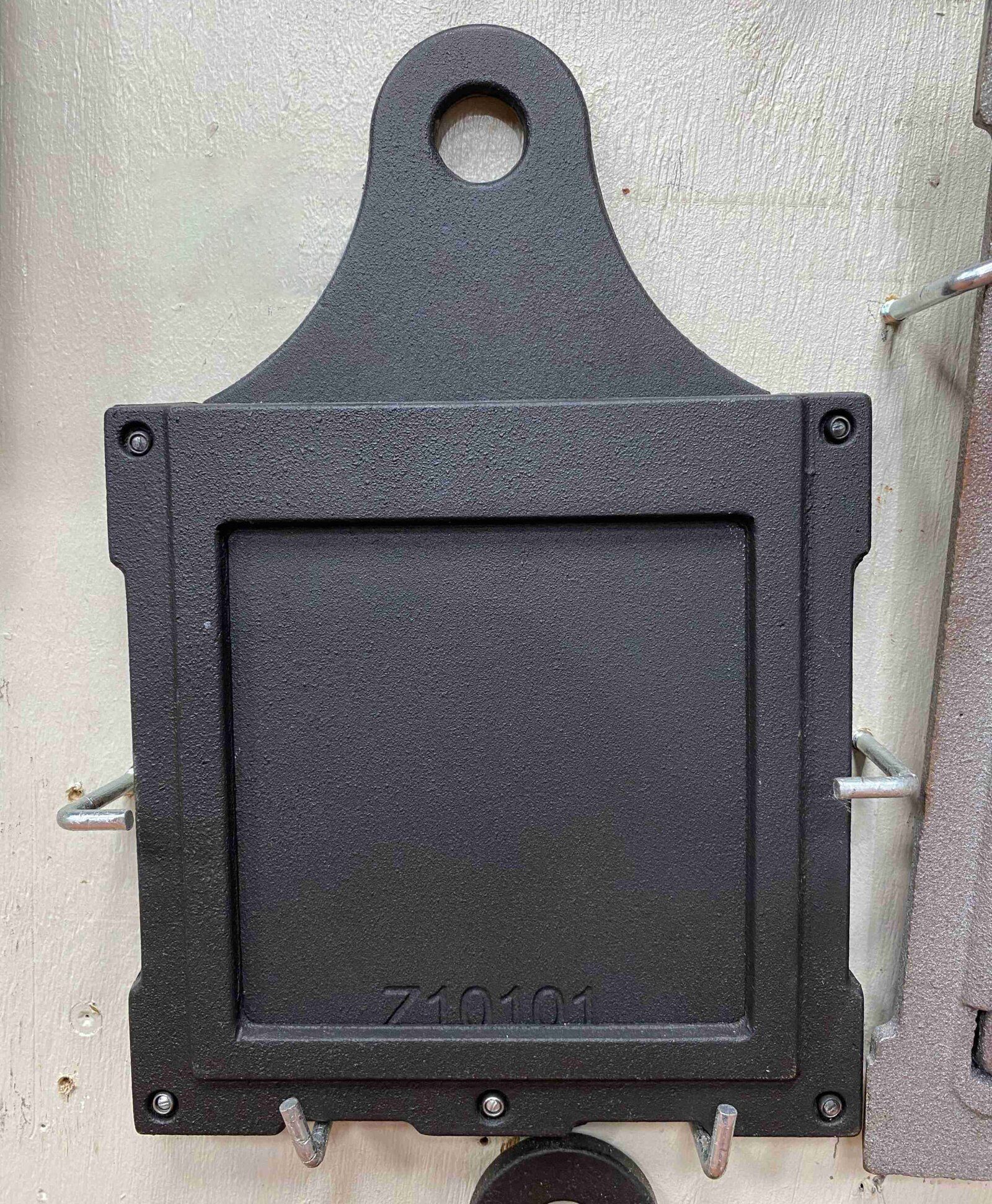

Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm)

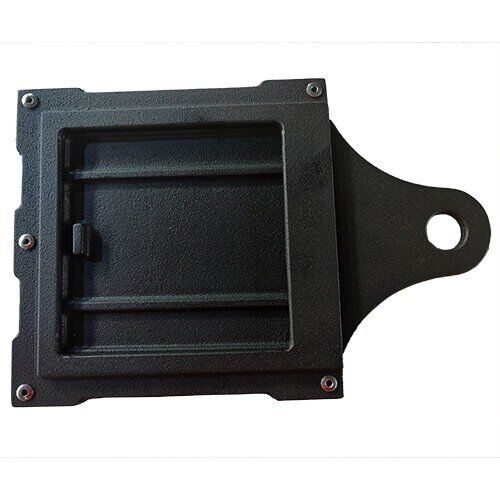

New Z101 chimney valve (3)

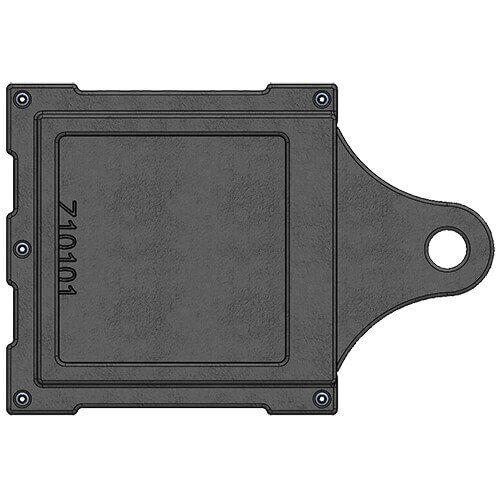

New Z101 chimney valve design (3)
New Z101 chimney valve (1)

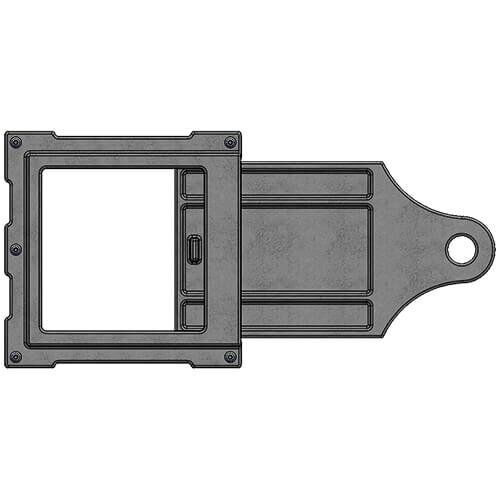

New Z101 chimney valve design (4)
New Z101 chimney valve (4)

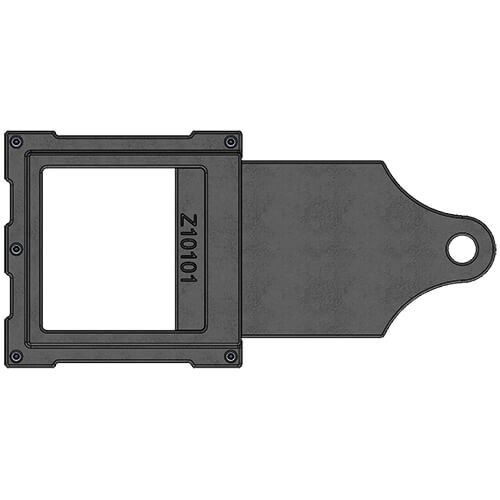

New Z101 chimney valve design (1)

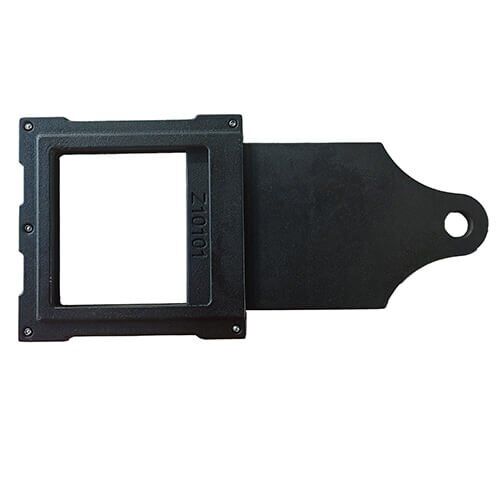

New Z101 chimney valve (2)

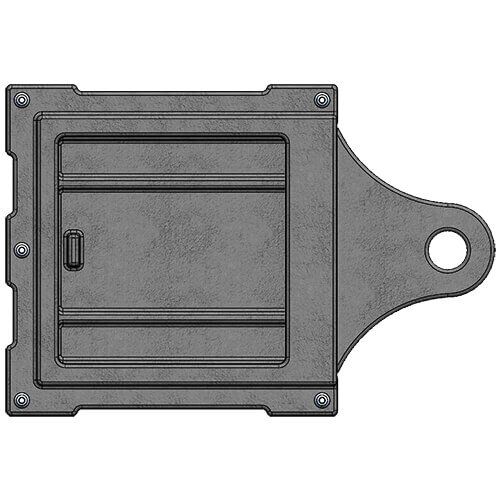

New Z101 chimney valve design (2)
New Z101 chimney valve (3)
Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm) (1)

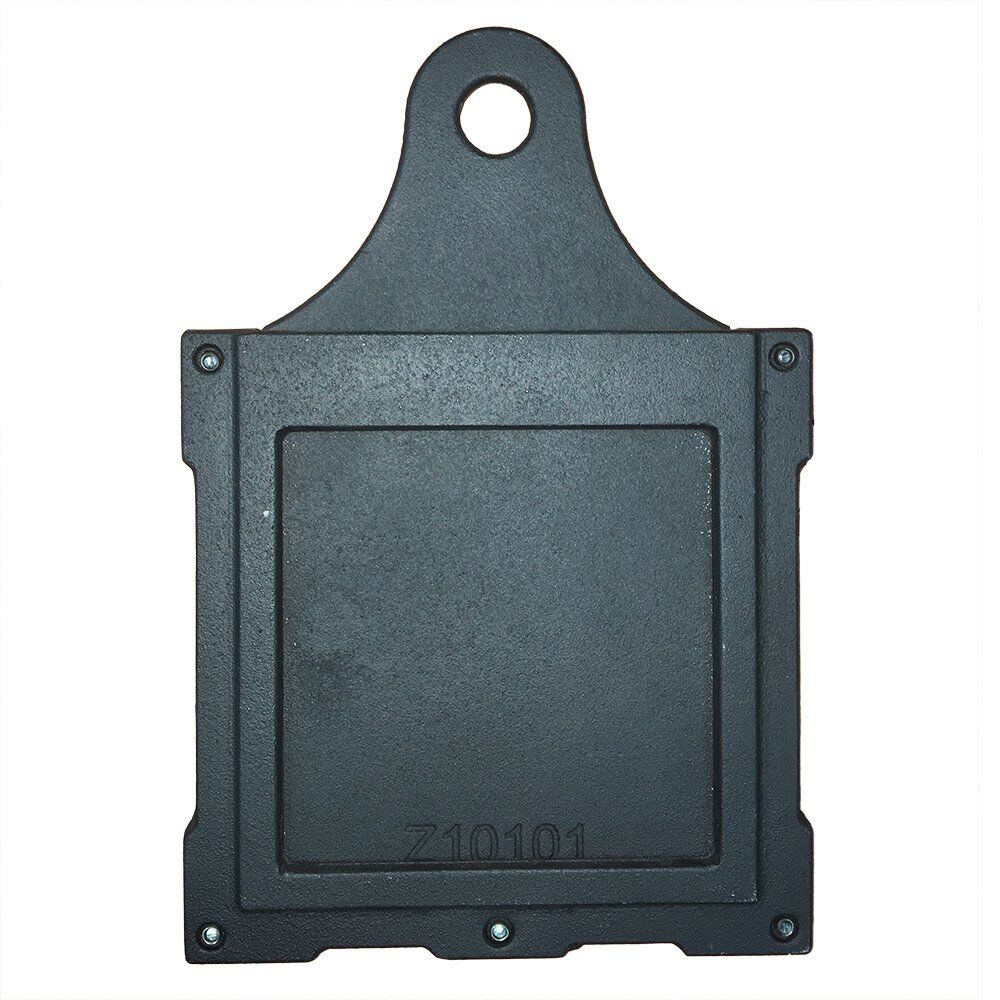

Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm) (1)
Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm) - Image 12

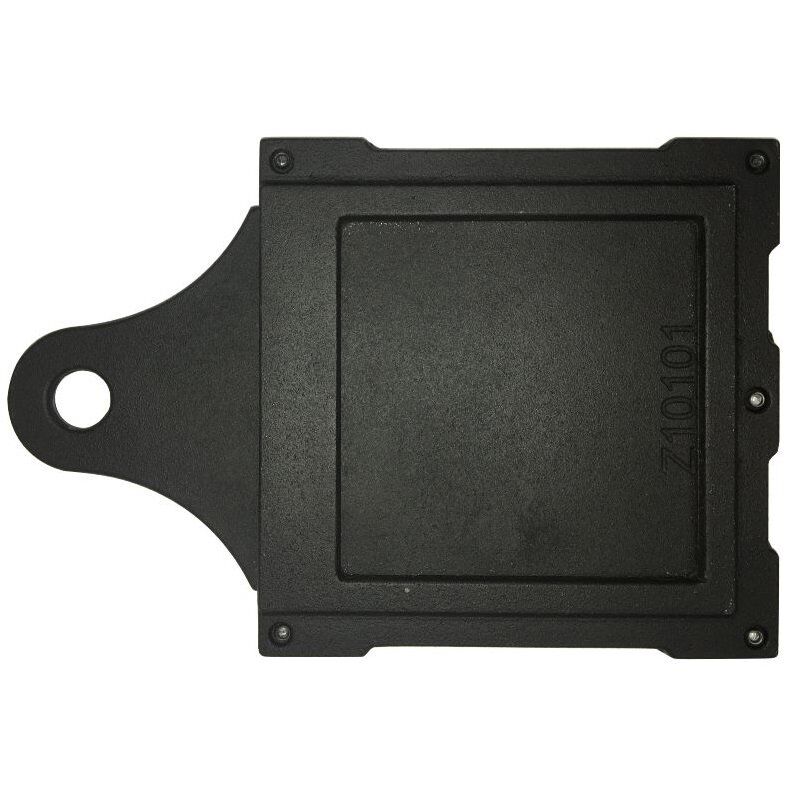

Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm) (3)

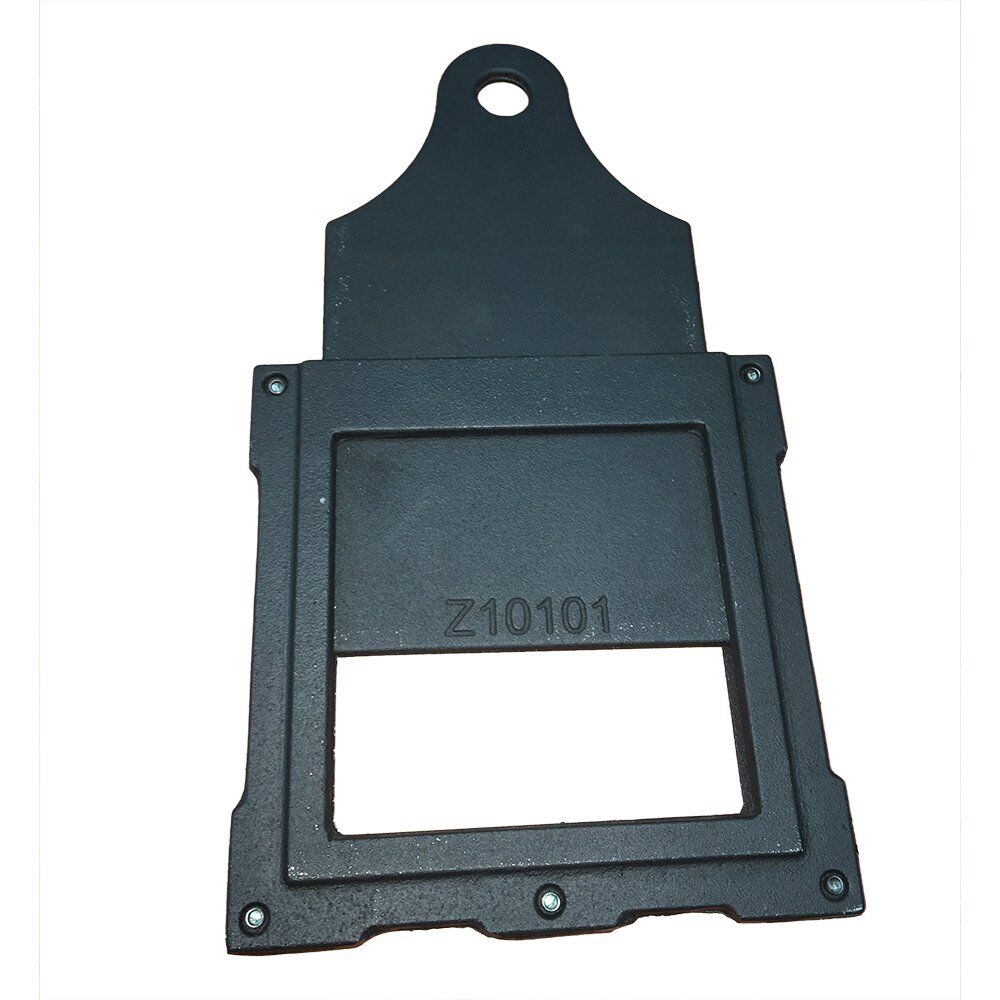

Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm) - Image 14
Fireway Cast Iron Stove Damper – New Z101 (130 × 130 mm) - Image 15
Categories , , Brand:

Additional information

Flue Opening Size (W × H)

130 × 130 mm
Overall Dimensions

190 × 180 / 280 mm
Plate Thickness

6 mm
Color

Dark Gray
Weight

2.12 kg
Call to action

Product Description

The Fireway New Z101 cast iron stove damper is an essential functional component for
brick stoves, cast iron stoves, fireplaces, and combined heating-cooking ovens.
Its primary purpose is to close the chimney flue after combustion,
retaining heat inside the stove and improving overall thermal efficiency.Manufactured from high-quality cast iron using industrial casting processes,
the damper consists of a solid cast iron frame and a precisely fitted sliding plate.
This design ensures reliable operation, high heat resistance, and minimal air leakage.
The damper is installed directly into masonry during stove construction,
fixed securely between brick layers.For enhanced airtightness, two dampers may be installed vertically one above the other.
Proper sealing prevents heat loss, condensation, and frost formation inside the chimney.

Key Features

  • Durable cast iron construction with high thermal stability
  • One-piece cast iron frame for structural integrity
  • Precise sliding plate for smooth operation
  • Effective chimney sealing after stove firing
  • Suitable for brick stoves, cast iron stoves, fireplaces
  • Factory-painted, supplied in branded packaging
  • Designed for long-term residential and country house use

Technical Specifications

Parameter Value
Product Type Stove Damper / Chimney Valve
Brand Fireway
Model New Z101
Material Cast Iron
Flue Opening Size (W × H) 130 × 130 mm
Overall Dimensions 190 × 180 / 280 mm
Plate Thickness 6 mm
Weight 2.12 kg
Color Dark Gray
Installation Type Built-in (masonry installation)

Installation & Usage Guide

  1. Install the damper during stove masonry construction.
  2. Position the cast iron frame between brick rows at the chimney channel.
  3. Ensure the sliding plate moves freely within the frame grooves.
  4. After stove firing, close the damper only when combustion has fully stopped.
  5. For higher airtightness, consider installing a second damper above the first.

Important: Never fully close the damper while active combustion is ongoing.

Customer Reviews

★★★★★ – “Solid casting and excellent fit. Installed in a brick stove, works smoothly and seals well.”

★★★★★ – “Good quality cast iron, no visible gaps. Heat retention improved noticeably.”

Frequently Asked Questions (FAQ)

Is this damper suitable for fireplaces?

Yes, the New Z101 is suitable for fireplaces, brick stoves, and combined heating-cooking ovens.

Can it be installed in an existing stove?

Installation is recommended during masonry work. Retrofitting may require partial disassembly.

Why is airtight sealing important?

Proper sealing prevents heat loss, reduces condensation, and avoids frost formation inside the chimney.

Manufacturer & Expertise (E-E-A-T)

Fireway is a professional manufacturer specializing in cast iron stove components
for residential heating systems. With extensive experience in industrial casting,
Fireway focuses on durability, dimensional accuracy, and long-term reliability.

All products are manufactured under controlled factory conditions and designed
to meet the practical requirements of stove builders, distributors, and B2B buyers
in international markets.
