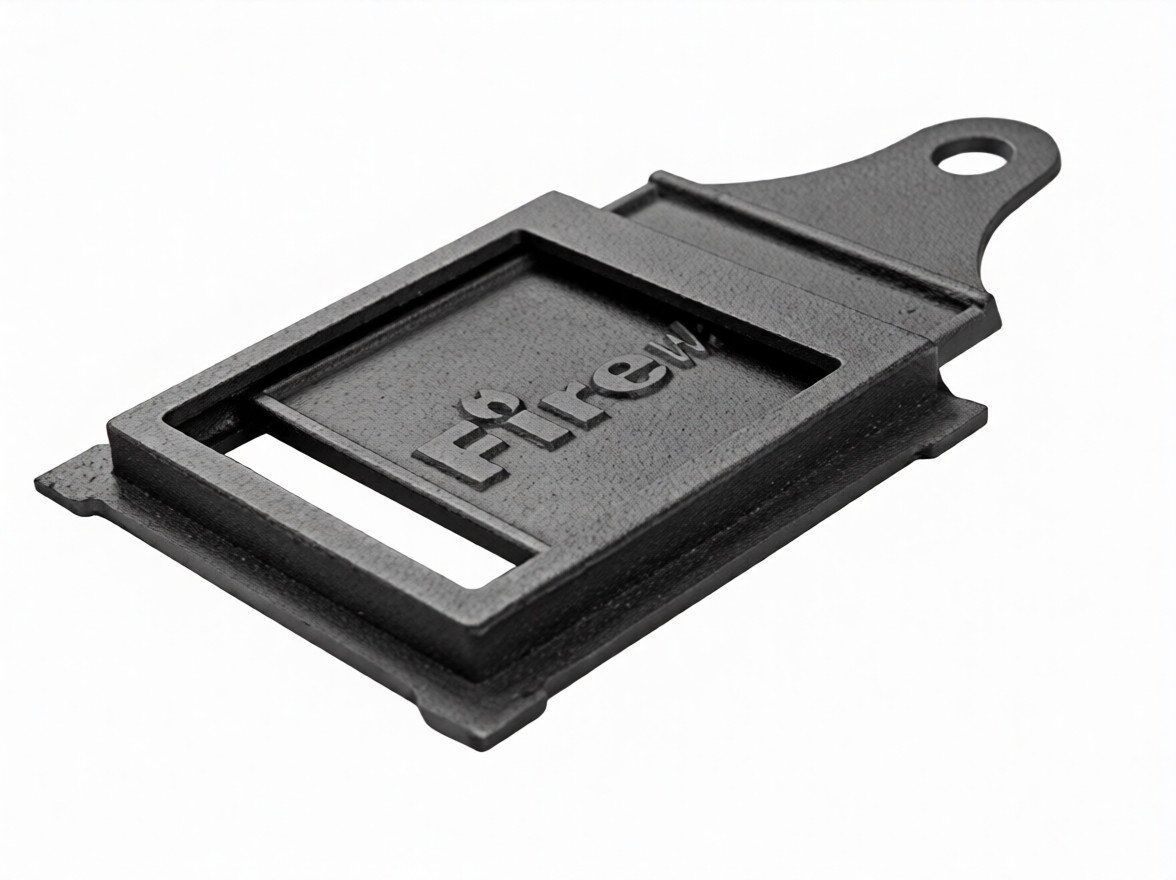

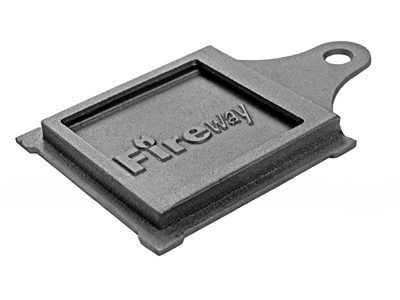

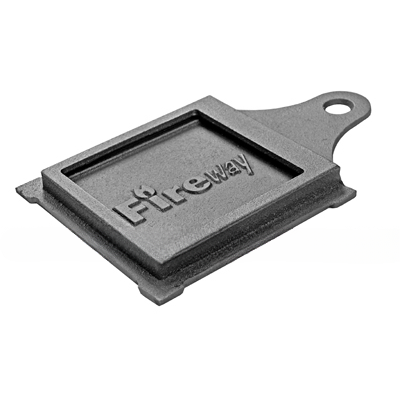

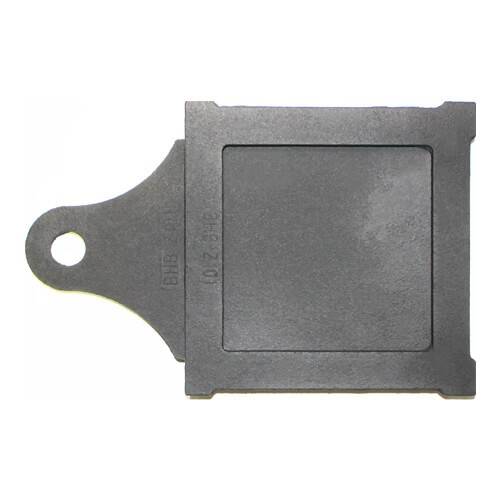

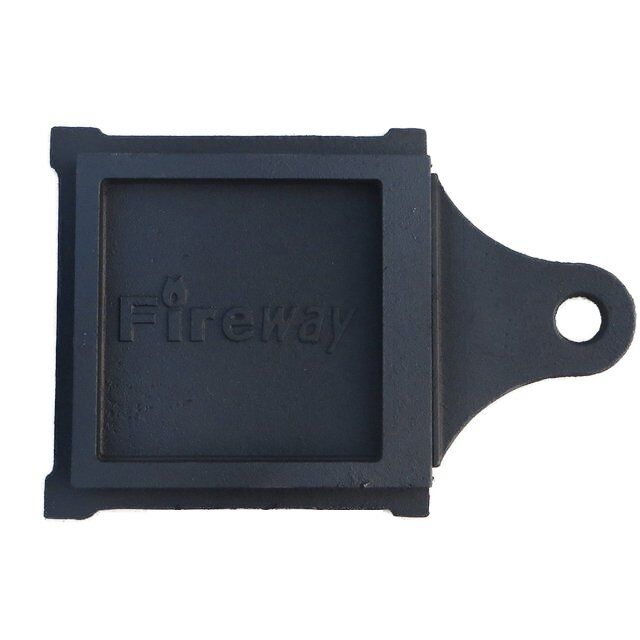

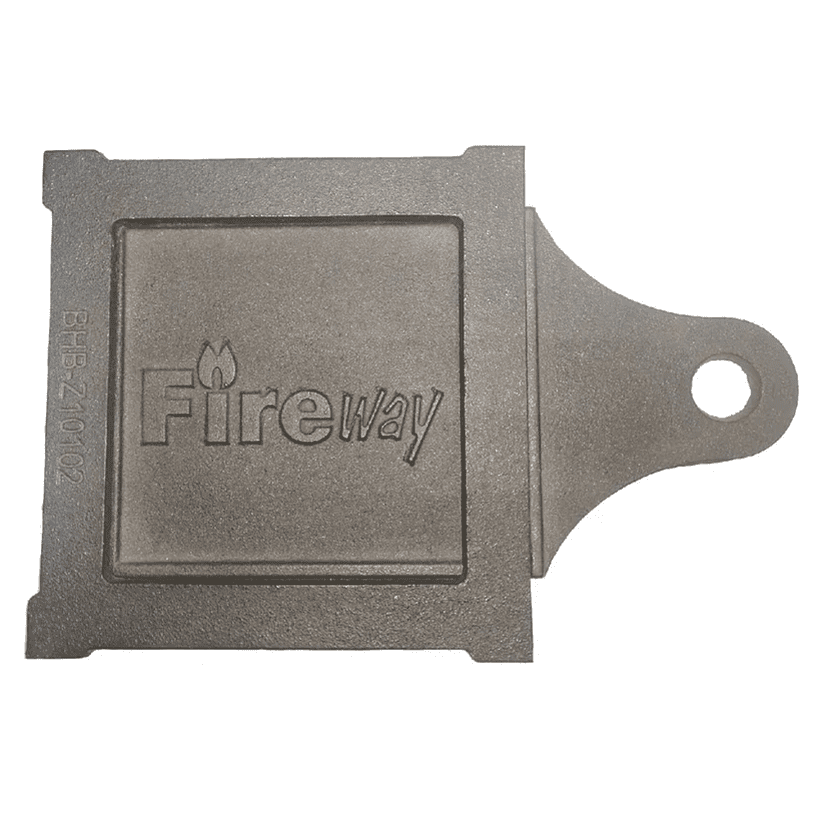

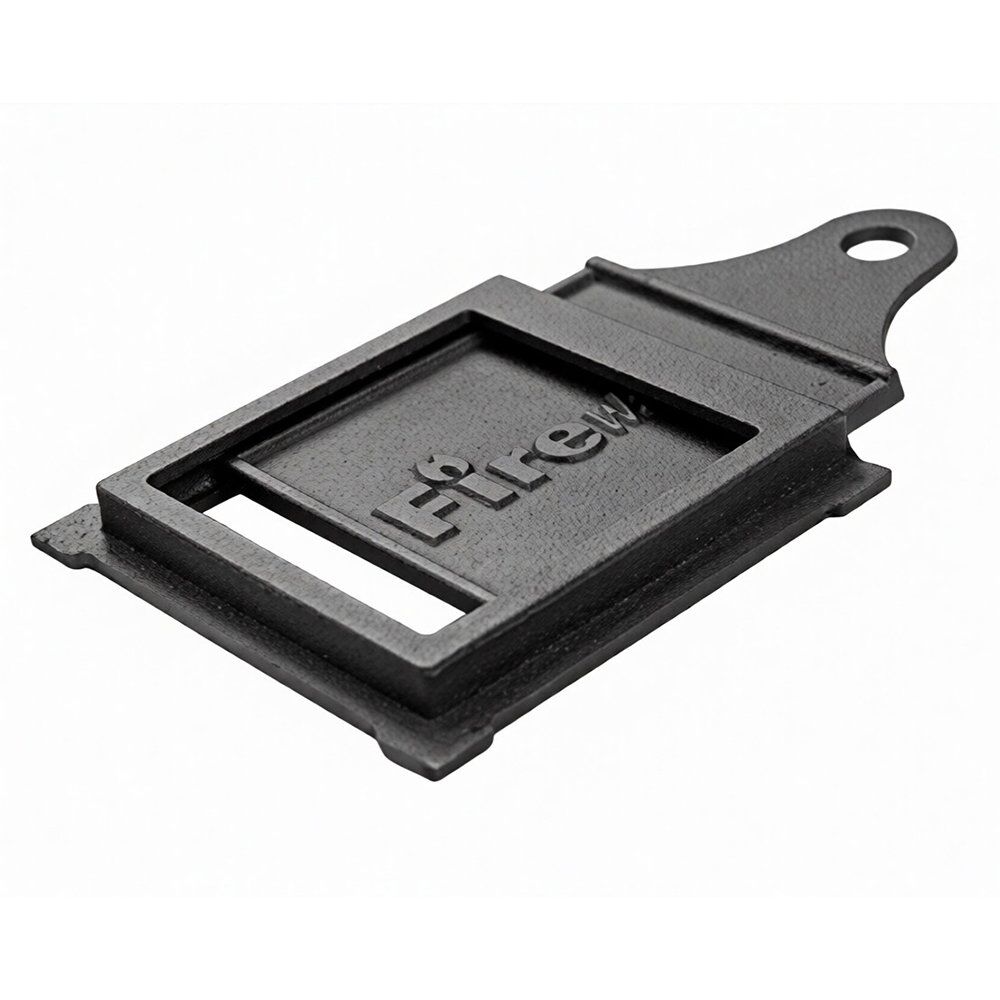

The Fireway Z101 damper is designed for closing the flue pipe after stove use and for switching smoke channels in heating-cooking stoves and fireplaces. This high-quality cast iron damper ensures a tight seal and long-lasting durability.
| Model | Z101 |
| Material | Cast Iron (SЧ20) |
| Dimensions (W x H) | 280mm x 190mm |
| Passage Channel Size | 130mm x 130mm |
| Weight | 2.12kg |
| Color | Gray |
| Packaging | Branded Packaging |
The Z101 damper is easy to install and can be mounted in a flue pipe with a passage channel size of 130mm x 130mm. It is recommended to install the damper at the base of the flue pipe, ensuring a snug fit. If needed, a second damper can be installed slightly higher to enhance the sealing effect for better air-tightness.
Ensure the damper moves smoothly along the frame’s grooves to maintain proper functionality.
“High-quality damper! It fits perfectly and works smoothly in my stove. The installation was straightforward, and it creates a great seal.” – John D.
“Excellent product! I’ve been using it for months, and it still performs well. The cast iron is very durable.” – Sarah W.
A: Yes, you can install a second damper slightly higher to improve sealing and reduce smoke leakage.
A: The Z101 damper is ideal for stoves and fireplaces with a flue pipe size of 130mm x 130mm. Ensure compatibility before installation.
QUALITY. CERTIFICATION A EXPORT SUPPORT
Fireway adheres to international standards and export requirements, and provides certifications, technical documentation, product photos, loading photos, and other relevant materials based on the needs of its partners.
