| Fit size (Height) | 280 |
|---|---|
| Overall dimension (Height) | 340 |
| Material | Cast iron grade SCh20 |
| Color | Black |
| Landing size (Width) | 250 |
| Overall dimension (Width) | 310 |
The hinged door design ensures convenient operation, reliable sealing, and long service life under high-temperature conditions.
This model is widely used in European-style masonry heaters and custom-built fireplaces.
| Parameter | Specification |
|---|---|

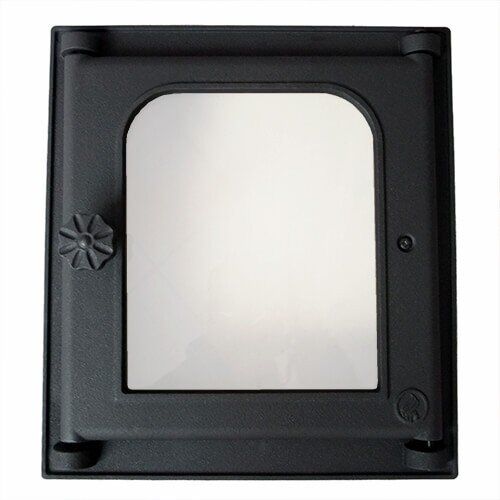

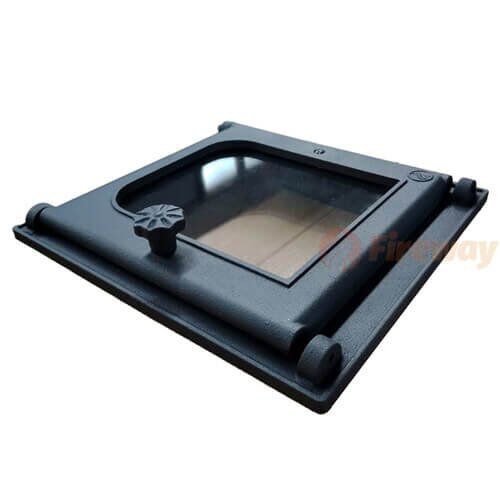

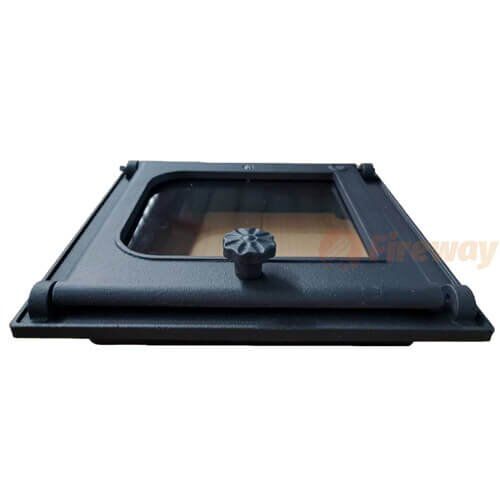

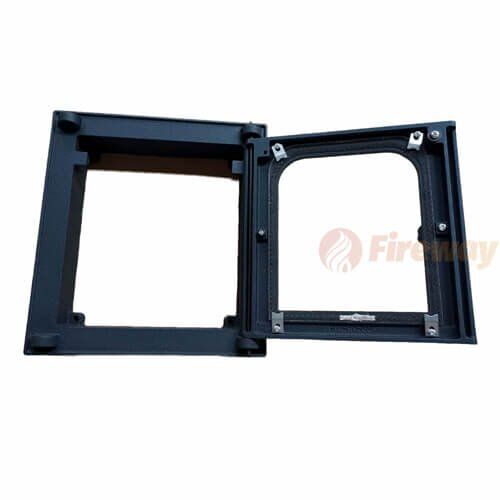

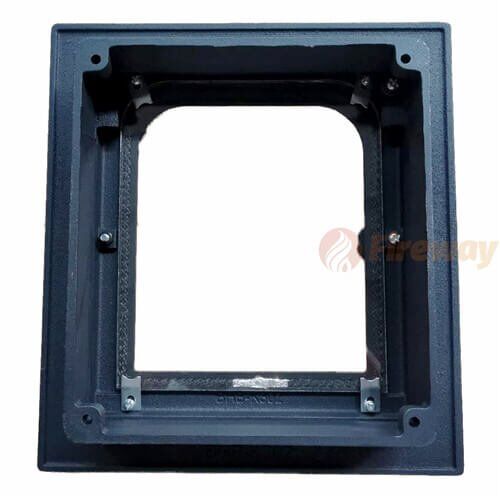

| Model | K302 |
| Material | Cast Iron (SCH20) |
| Mounting Size (Width × Height) | 250 × 280 mm |
| Overall Size (Width × Height) | 310 × 340 mm |
| Weight | 7.5 kg |
| Color | Gray |
| Opening Type | Hinged |
The K302 fireplace door should be installed into a prepared masonry opening matching the mounting dimensions.
It is recommended to fix the door frame using heat-resistant mortar or mechanical anchors designed for high-temperature applications.
Ensure the door is level during installation to guarantee proper sealing and smooth opening.
After installation, allow sufficient curing time for masonry materials before first use.
Regular inspection of hinges and sealing surfaces is recommended to maintain optimal performance.
★★★★★ “Solid construction and perfect fit for our brick fireplace. The glass allows us to enjoy the fire safely.”
★★★★★ “High-quality cast iron door, easy to install, and very durable under continuous use.”
Yes. The K302 is specifically designed for masonry heaters, brick fireplaces, and wood-burning stoves.
The door is made from SCH20 grade cast iron, offering excellent heat resistance and durability.
Yes. The glass panel is heat-resistant and suitable for continuous fireplace operation.
Yes. OEM and private label production is available for bulk orders.
