| Flue Channel Size | 160 × 300 mm |
|---|---|
| Overall Dimensions | 215 × 350 / 655 mm |
| Frame Type | One-piece cast iron frame |
| Damper Plate Thickness | 6 mm |
| Weight | 5.3 kg |
| Material | Cast Iron |
|---|---|
| Flue Channel Size | 160 × 300 mm |
| Overall Dimensions | 215 × 350 / 655 mm |
| Frame Type | One-piece cast iron frame |
| Damper Plate Thickness | 6 mm |
| Weight | 5.3 kg |
| Surface Finish | Painted, heat-resistant coating |
| Packaging | Branded factory packaging |

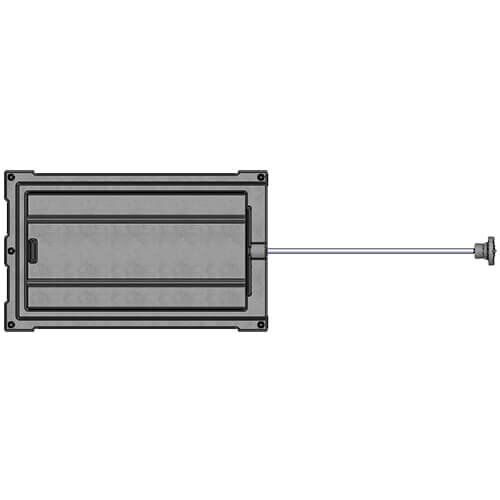

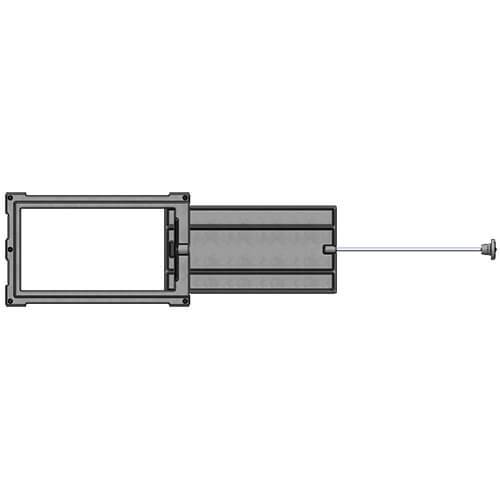

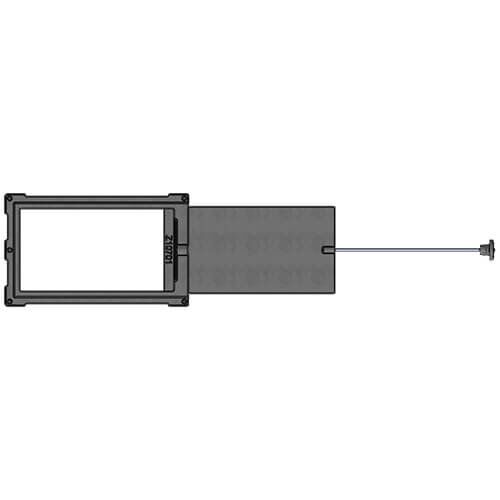

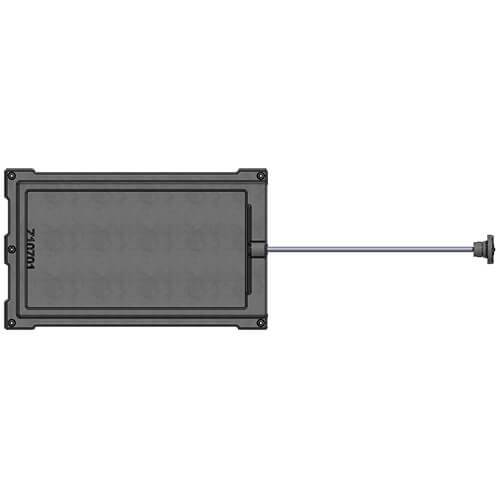

The New Z107 damper consists of a cast iron frame and a sliding cast iron plate moving within the frame grooves.
The damper size should be selected strictly according to the internal dimensions of the chimney flue.
For improved sealing performance, especially in large masonry stoves, a second damper may be installed above
the first one. This configuration enhances airtightness and thermal efficiency.
“Solid cast iron quality and perfect fit for deep flue installations. Reliable performance after long-term use.”
“The extended shaft makes installation much easier in traditional masonry stoves. Professional-grade product.”
It is suitable for masonry heating stoves, heating-cooking stoves, and fireplaces with a 160×300 mm flue channel.

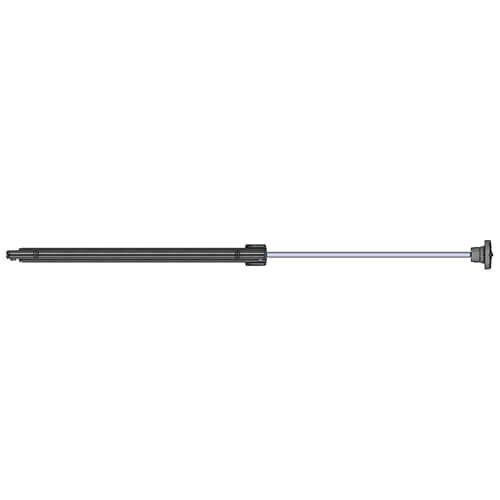

The extended shaft allows safe and convenient operation when the damper is installed deep inside thick masonry
or recessed flue channels.
Yes. Installing a second damper above the first can improve sealing performance and reduce heat loss.
No. Decorative frames are optional accessories and supplied separately.
BHB Group is a professional manufacturer of cast iron stove components, specializing in flue dampers,
stove hardware, and fireplace accessories. All products are factory-produced using controlled casting
processes to ensure dimensional accuracy, material consistency, and long service life.
BHB Group supplies OEM and B2B partners with standardized and custom-designed cast iron components,
suitable for European and international markets.
