| Steam room volume | 14 – 24 m3 |
|---|---|
| Furnace material | Cast iron grade SCh20 |
| Size (WxHxD) | 680x660x650 mm. |
| Mass of stones | 200 kg |
| Furnace weight | 124 kg. |
| Chimney diameter | 115; 130 mm. |
| Remote firebox | Yes |
Model: Parovar 24 K505

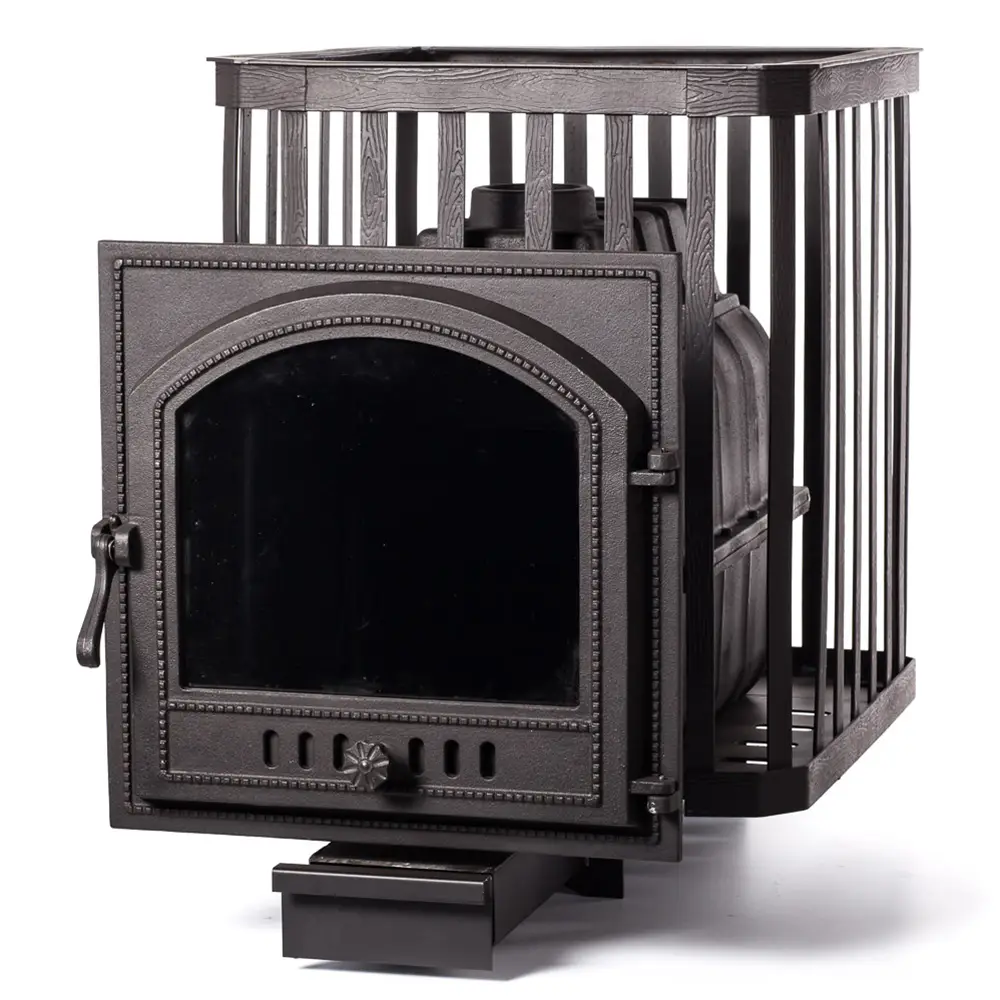

Parovar 24 K505 is a cast iron wood burning sauna stove designed for 14-24 m3 sauna rooms,
Russian banya rooms, and commercial sauna heating projects. It features a durable SCh20 cast iron firebox,
open forged steel stone basket, 200 kg stone capacity, 115 mm top flue outlet, K505 cast iron fire door
with heat-resistant glass, 30 cm remote fuel channel for loading from an adjacent room, and compatibility
with wood logs, briquettes, and brown coal. Parovar 24 K505 is suitable for sauna stove importers,
distributors, sauna equipment retailers, private label buyers, and OEM cast iron sauna stove projects.
| Product Type | Cast Iron Wood Burning Sauna Stove |
|---|---|
| Model | Parovar 24 K505 |
| Sauna Room Volume | 14-24 m3 |
| Stone Capacity | 200 kg |
| Firebox Material | Cast Iron / SCh20 Cast Iron |
| Stone Basket | Open Forged Steel Stone Basket / Mesh Cladding |
| Fire Door | K505 Cast Iron Fire Door with Heat-Resistant Glass |
| Fuel Channel | 30 cm Remote Fuel Channel |
| Chimney Diameter | 115 mm |
The Parovar 24 K505 Cast Iron Sauna Stove is a wood burning sauna heater designed for steam rooms
with a volume of 14-24 m3. It is suitable for Russian banya rooms, private saunas, cabin saunas,
commercial sauna rooms, sauna equipment retailers, and sauna stove distribution programs.
The stove uses a cast iron / SCh20 cast iron firebox for high-temperature resistance, structural stability,
and long-term heating performance. Around the firebox, the open forged steel stone basket and mesh cladding
allow sauna stones to be loaded around the heating body, supporting heat accumulation, steam generation,
and traditional banya-style sauna heating.
Parovar 24 K505 uses a large K505 cast iron fire door with heat-resistant glass and a 30 cm remote fuel channel
for loading from an adjacent room. This configuration separates fuel loading from the steam room area,
helps keep the sauna room cleaner during operation, and creates a fireplace-style visual effect from the loading side.
With a 115 mm top flue outlet, 200 kg stone capacity, 14-24 m3 sauna room positioning, and solid fuel compatibility,
this model is suitable for importers, distributors, private label buyers, and OEM cast iron sauna stove projects.
Designed for medium to larger sauna rooms and Russian banya heating applications.
Durable firebox structure for high-temperature sauna stove operation.
Large stone mass supports heat accumulation and steam generation for traditional sauna use.
Designed for loading fuel from an adjacent room or dressing area.
Large cast iron fire door with heat-resistant glass for flame visibility from the loading side.
Suitable for sauna stove importers, distributors, and private label projects.
Parovar 24 K505 is built with a cast iron / SCh20 cast iron firebox designed for high-temperature sauna operation.
Cast iron provides strong heat resistance, dimensional stability, and reliable heat retention during repeated heating cycles.
This model is designed for sauna rooms and Russian banya rooms with a volume of 14-24 m3.
It is suitable for private sauna rooms, cabin saunas, countryside saunas, commercial sauna rooms,
and sauna equipment retail ranges.

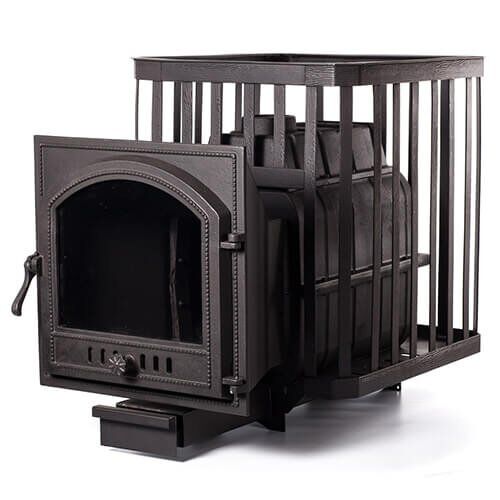

The open forged steel stone basket allows approximately 200 kg of sauna stones to be loaded.
A large stone mass helps accumulate heat, stabilize sauna temperature, and support steam generation
when water is poured onto the heated stones.

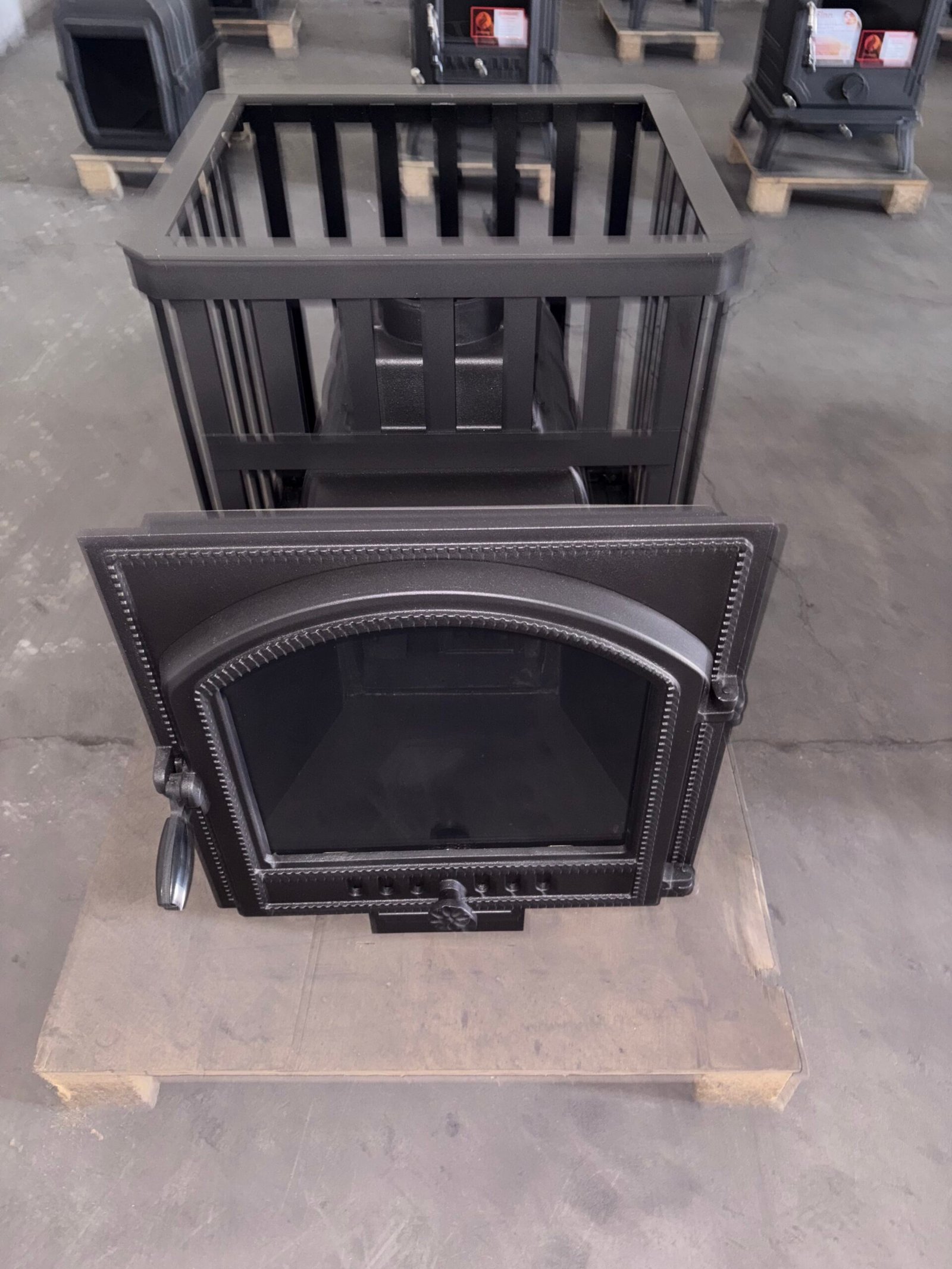

The open forged steel stone basket and mesh cladding surround the cast iron firebox and create a practical stone compartment.
This structure helps air circulate around the stones and supports efficient heating and drying of the stone mass.

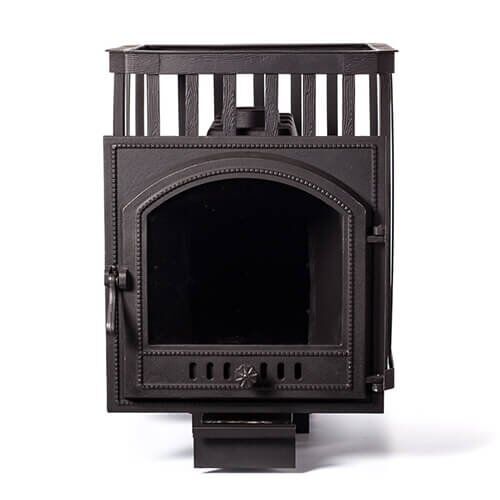

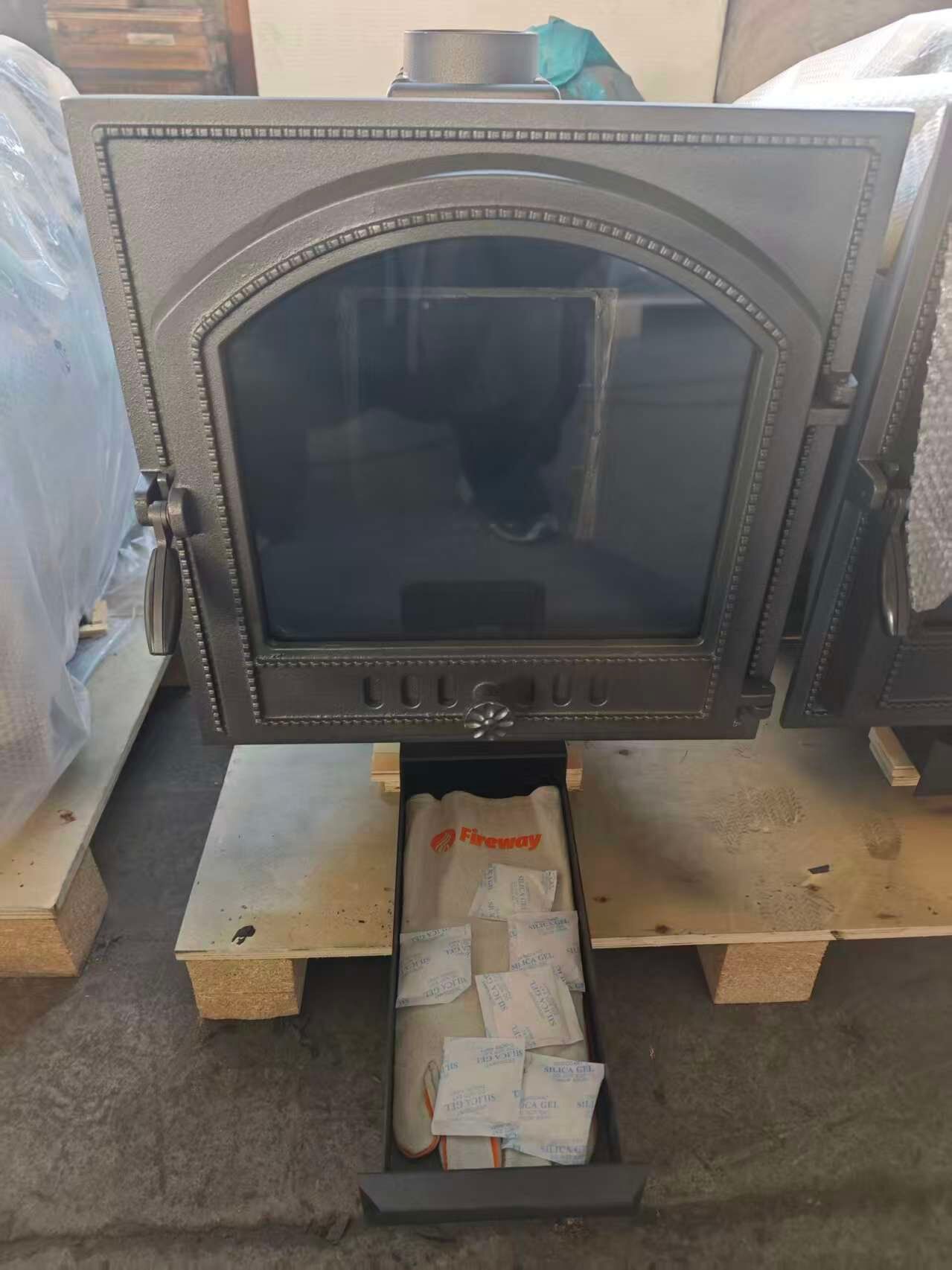

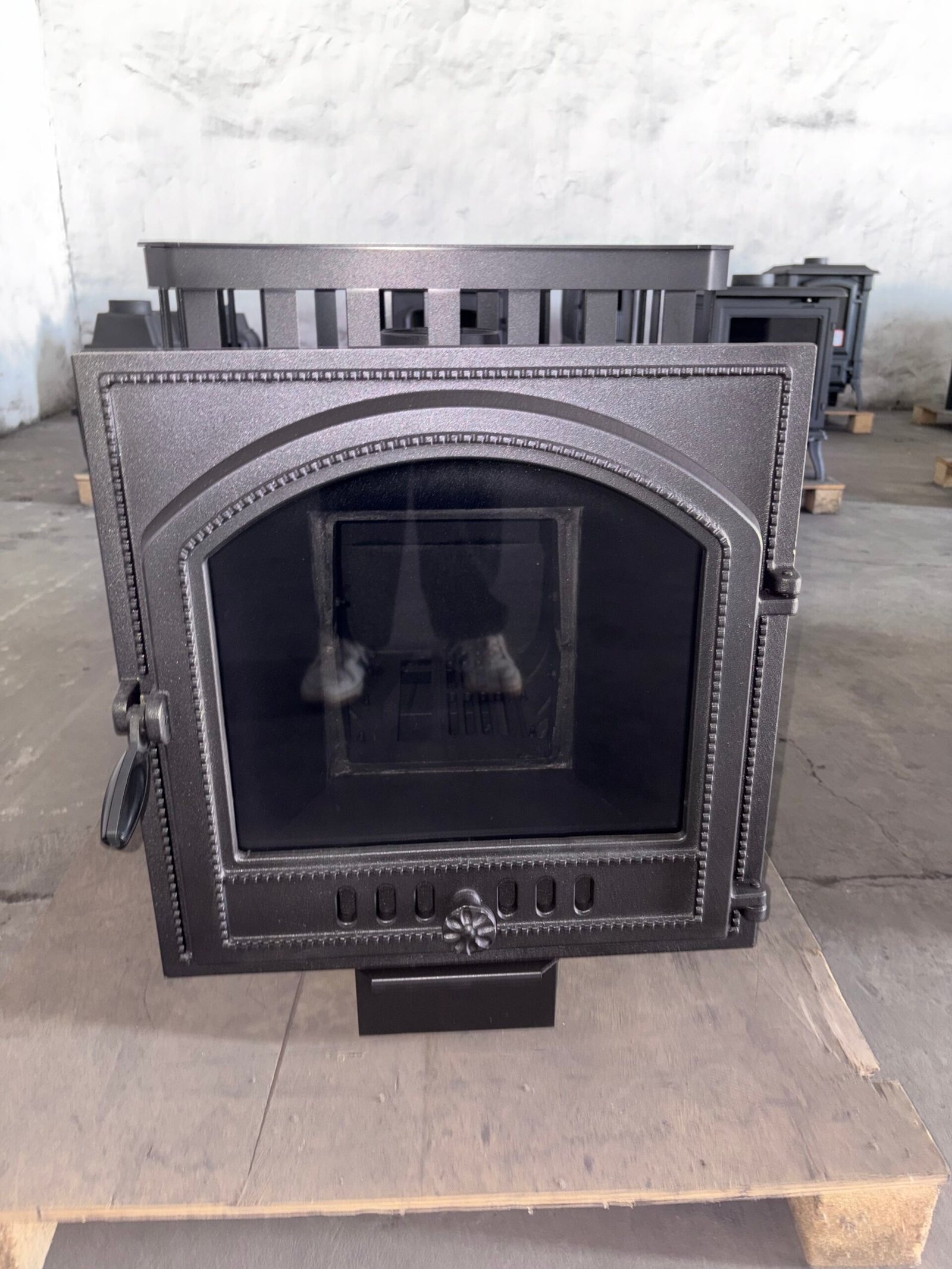

The K505 cast iron fire door includes heat-resistant glass for flame visibility from the loading side.
The large door design gives the stove a fireplace-style appearance from the adjacent room or dressing area.

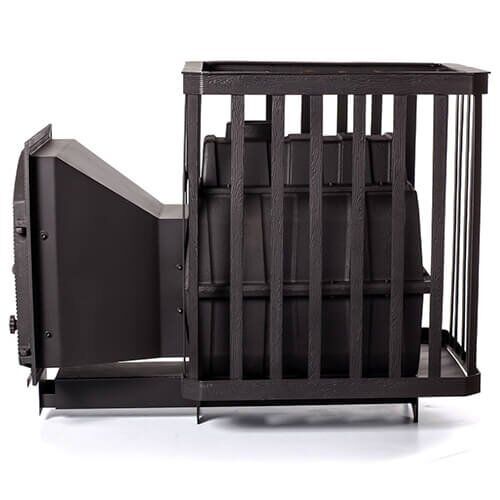

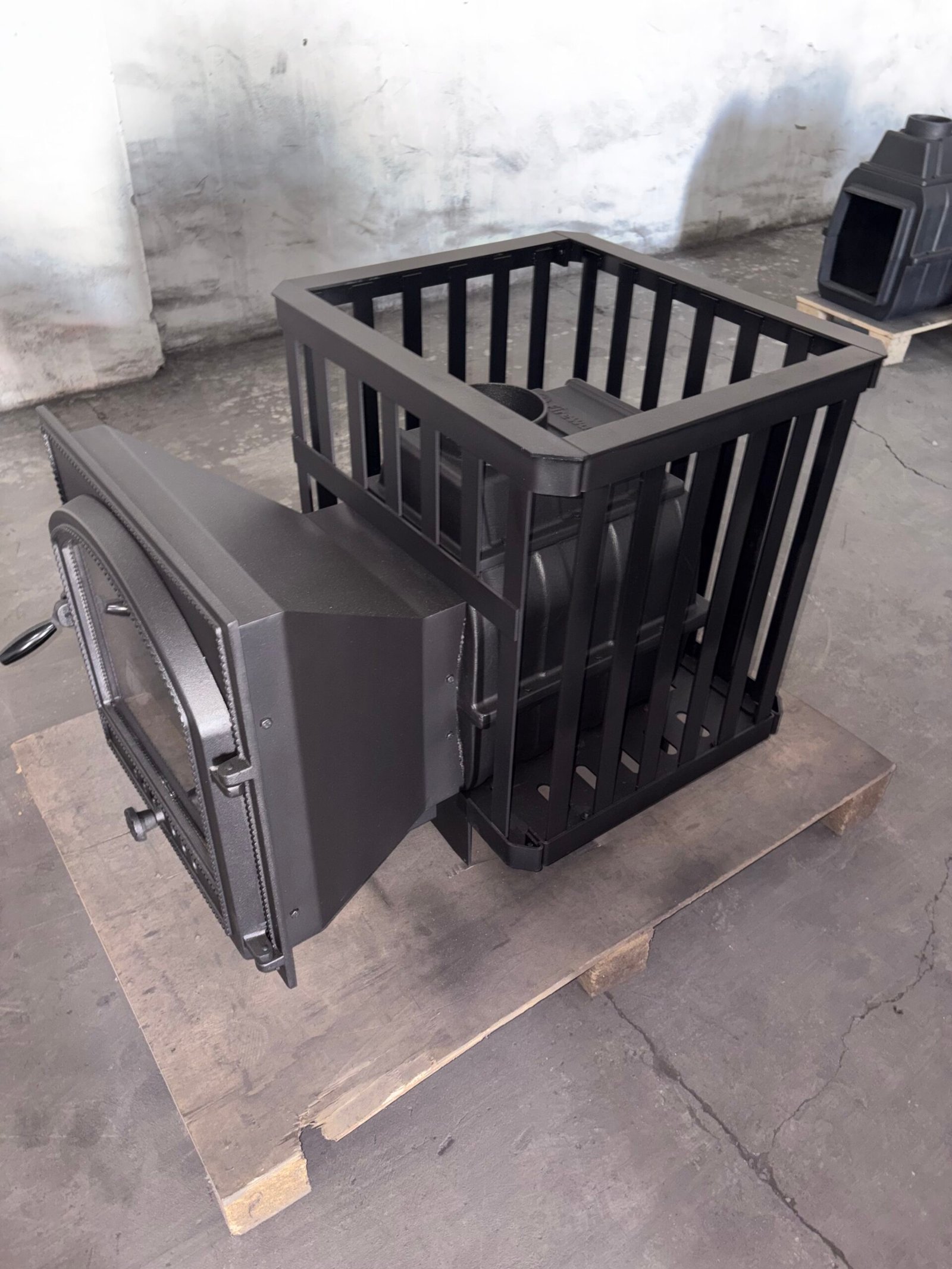

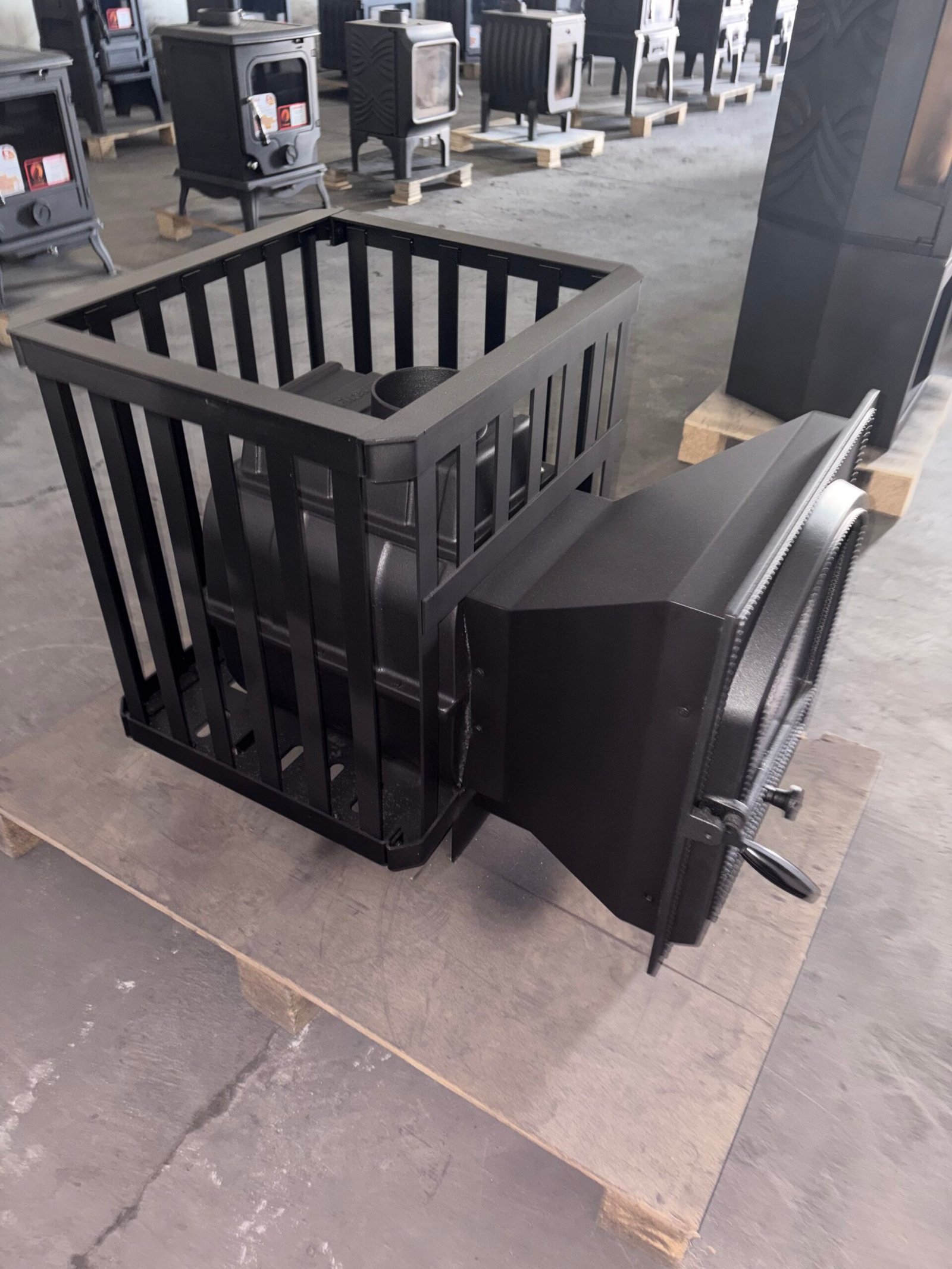

Parovar 24 K505 is equipped with a 30 cm remote fuel channel. This design allows fuel loading from an adjacent room
and helps keep the sauna room cleaner during operation.

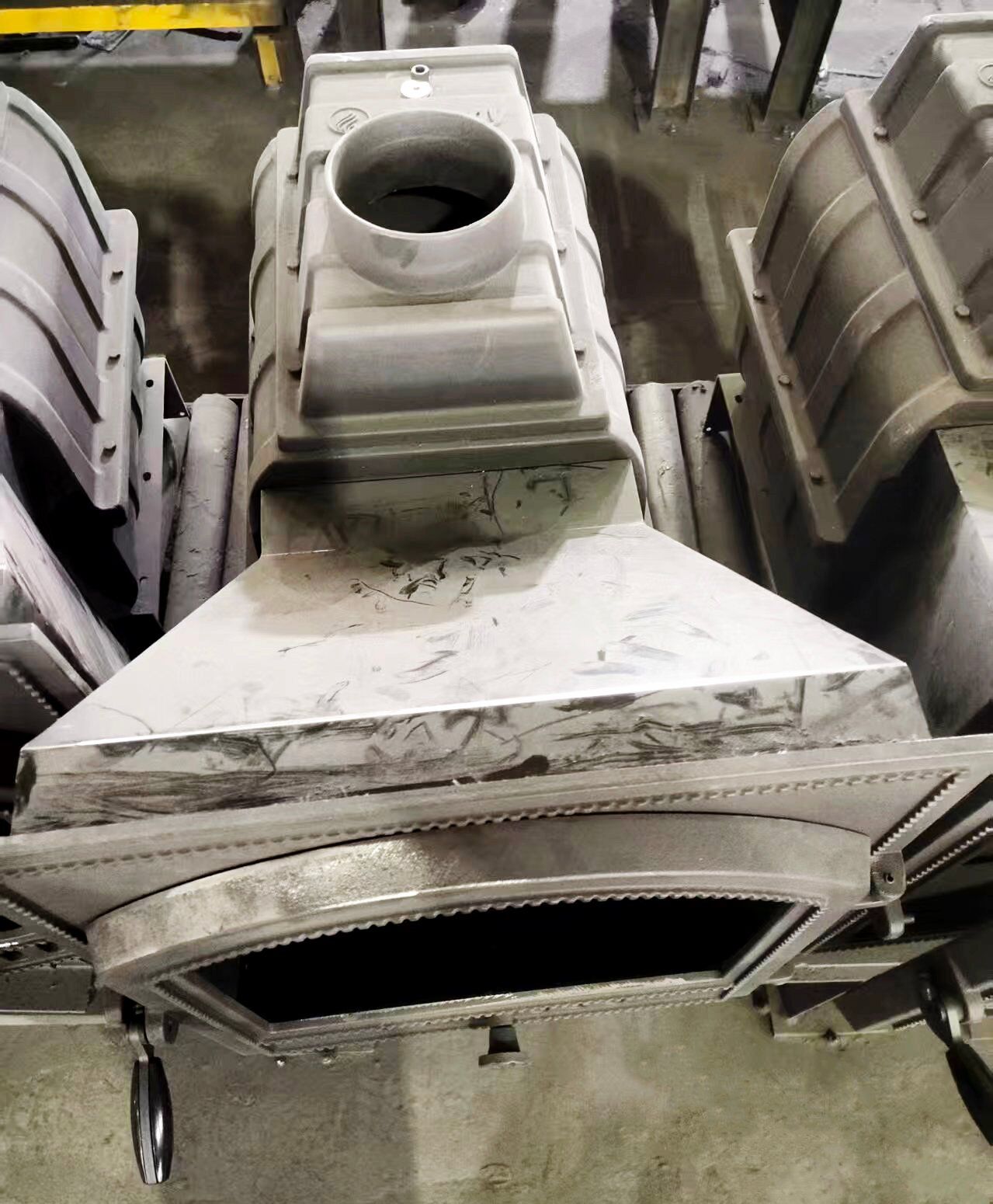

The stove uses a 115 mm top flue outlet. This top chimney connection is suitable for common vertical flue installation
in sauna rooms and banya heating systems.
Parovar 24 K505 is compatible with wood logs, briquettes, and brown coal, offering flexibility for different solid fuel markets
and regional sauna heating preferences.
Parovar 24 K505 can be used as a reference model for private label development, sauna stove distribution programs,
door configuration projects, stone basket customization, remote fuel channel projects, appearance adjustment,
and OEM cast iron sauna stove cooperation.
| Item | Specification |
|---|---|
| Product Name | Cast Iron Wood Burning Sauna Stove (Parovar 24 K505) |
| Model | Parovar 24 K505 |
| Sauna Room Volume | 14-24 m3 |
| Firebox Material | Cast Iron / SCh20 Cast Iron |
| Stone Basket | Open Forged Steel Stone Basket / Mesh Cladding |
| Stone Capacity | 200 kg |
| Fuel Type | Wood Logs, Briquettes, Brown Coal |
| Fire Door | K505 Cast Iron Fire Door with Heat-Resistant Glass |
| K505 Door Size | 490 x 490 mm |
| Glass Size | 362 x 313 x 4 mm |
| Fuel Loading | Front Loading from Adjacent Room |
| Fuel Channel | 30 cm Remote Fuel Channel |
| Remote Firebox | Yes |
| Chimney Diameter | 115 mm |
| Flue Outlet | Top |
| Heater Type | Open |
| Dimensions | 680 x 650 x 660 mm |
| Width | 680 mm |
| Depth | 650 mm |
| Height | 660 mm |
| Weight | 124 kg |
| Application | Sauna Room Heating, Russian Banya, Steam Room, Sauna Retail, OEM Sauna Stove Projects |
Place the sauna stove on a stable, heat-resistant, and non-combustible floor or sauna stove base before operation.
Use a 115 mm chimney system that follows local building, ventilation, chimney, and fire safety requirements.
Parovar 24 K505 uses a top flue outlet. Confirm the chimney position, draft condition, and sauna room layout before installation.
The 30 cm remote fuel channel should be installed through a suitable wall opening according to local building and fire safety requirements.
The loading door should remain accessible from the adjacent room or dressing area.
Place suitable sauna stones into the open forged steel stone basket. Do not exceed the recommended 200 kg stone capacity
and keep air circulation space.
Keep sufficient distance from wooden sauna walls, benches, insulation materials, and other heat-sensitive surfaces.
Use protective shields where required by local rules.
Use suitable wood logs, briquettes, or brown coal according to the product manual and local rules.
Do not use unsuitable fuel or overload the firebox.
Ensure proper chimney draft and sauna room ventilation before regular use.
Clean ash, firebox, flue path, chimney, glass door area, and stone compartment regularly to maintain safe sauna heating performance.

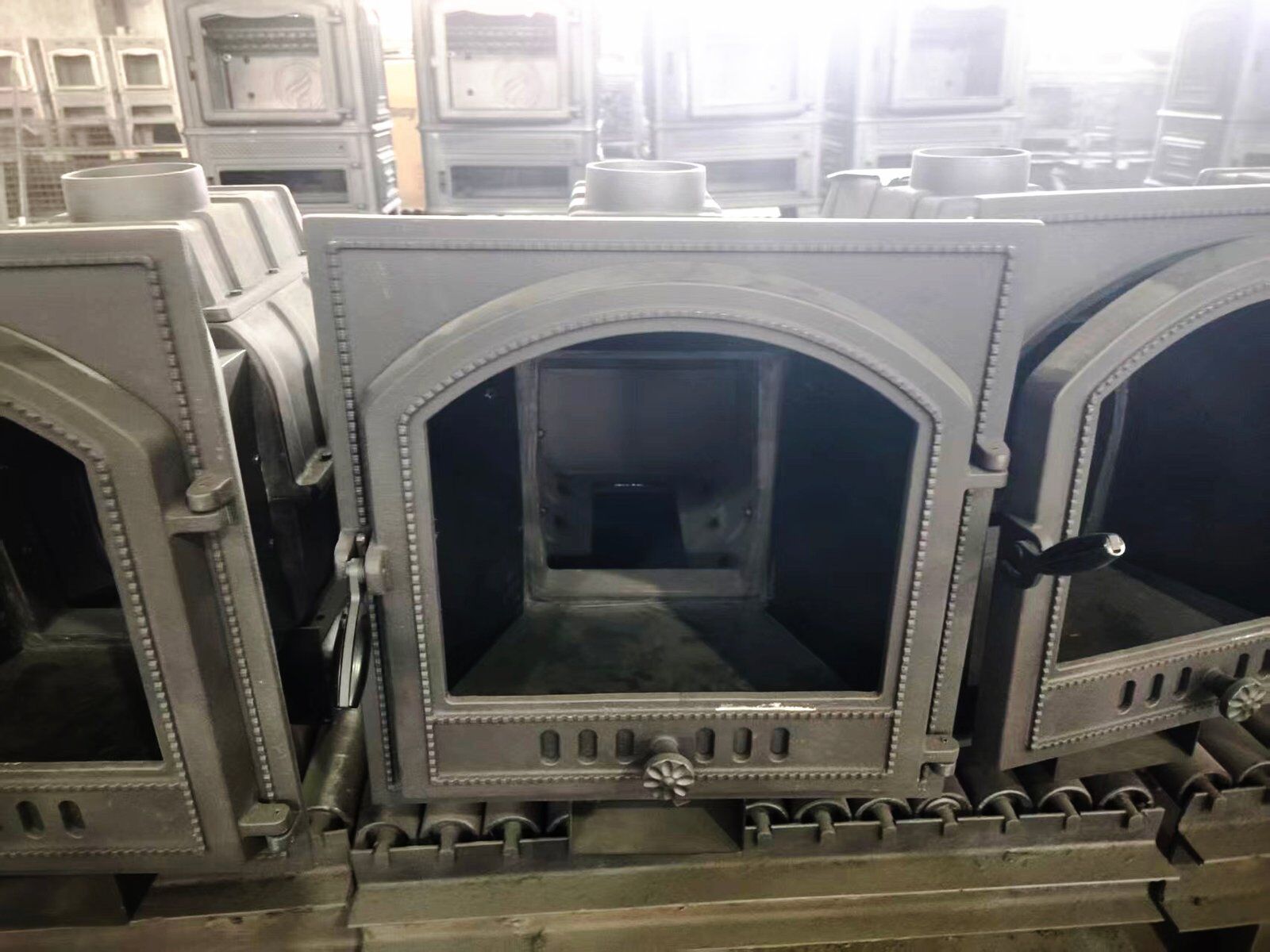

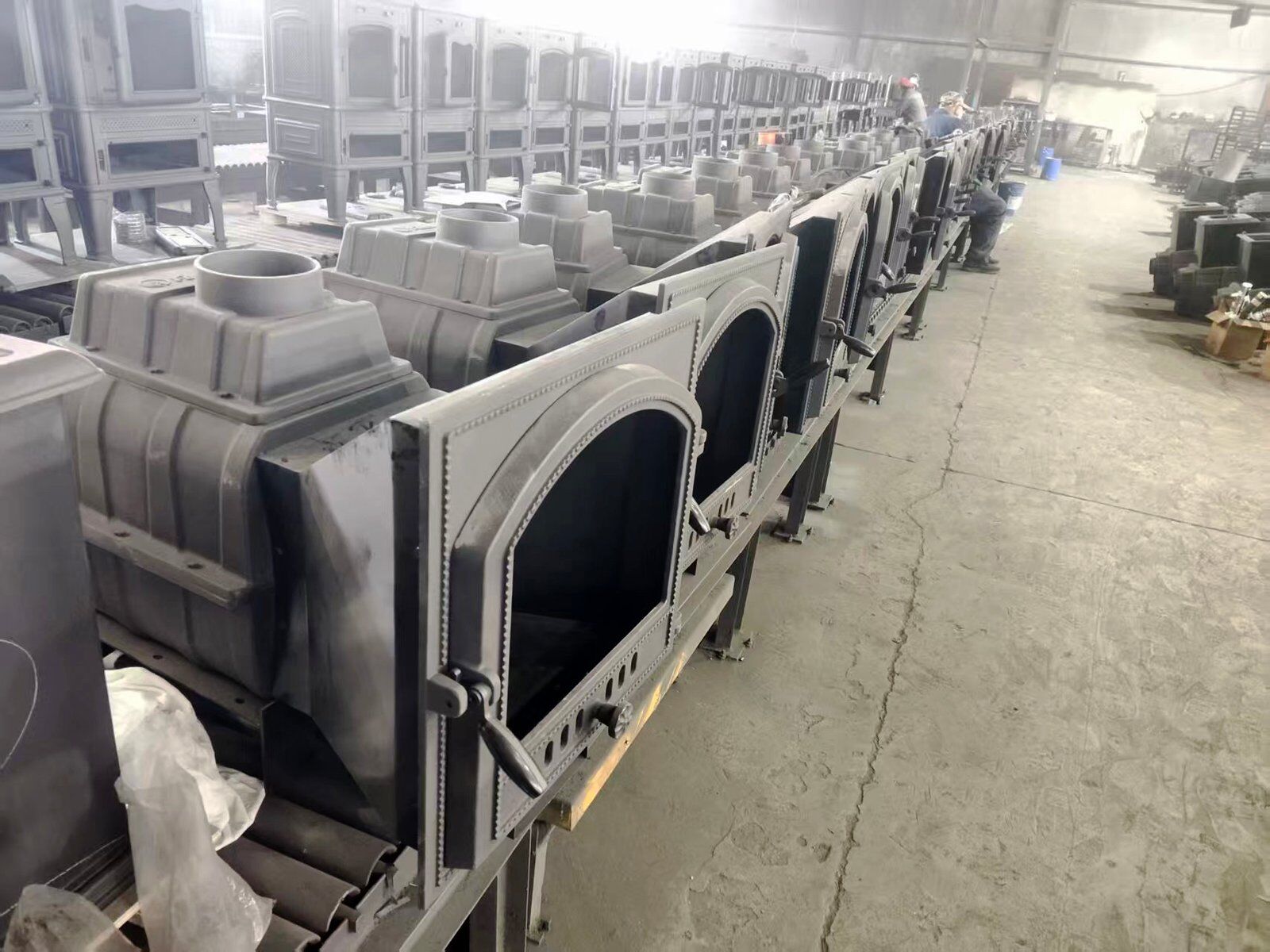

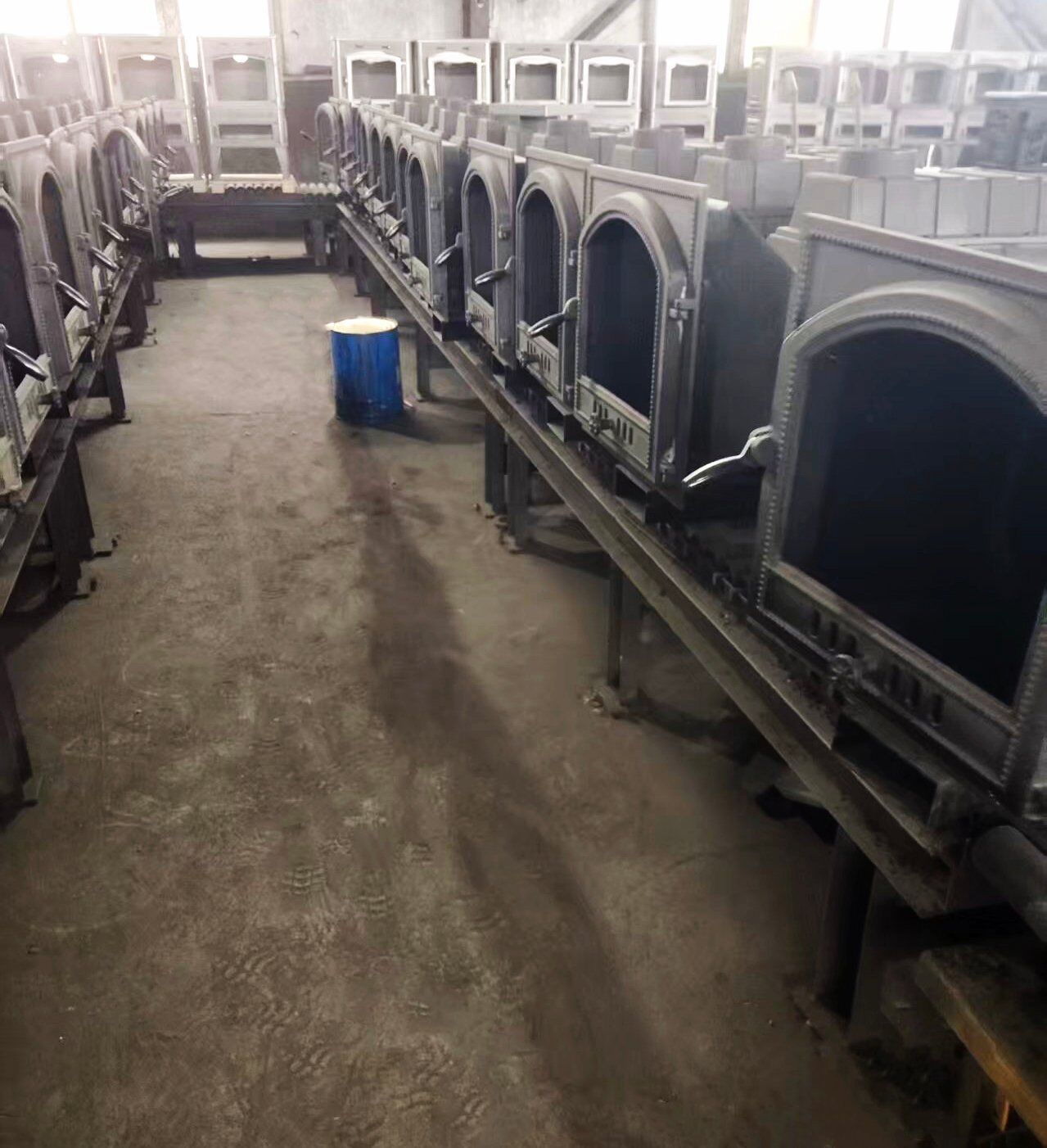

Fireway supports sauna stove importers, distributors, sauna equipment brands, and OEM buyers with integrated cast iron manufacturing capability.
Parovar 24 K505 is suitable for buyers who require a cast iron sauna stove for 14-24 m3 sauna rooms,
with 200 kg stone capacity, open forged steel stone basket, K505 glass fire door,
30 cm remote fuel channel, and solid fuel compatibility.
The model combines SCh20 cast iron firebox, K505 glass fire door, 200 kg stone capacity,
115 mm top flue outlet, 30 cm adjacent-room fuel loading design, and Russian banya positioning,
making it suitable for sauna stove retail and distribution programs.
Parovar 24 K505 can be used as a reference model for private label development, door configuration projects,
stone basket customization, remote fuel channel projects, appearance adjustment, and OEM cast iron sauna stove programs.
Parovar 24 K505 is designed for sauna rooms and steam rooms with a volume of 14-24 m3.
The stove can hold approximately 200 kg of sauna stones.
The firebox is made from cast iron / SCh20 cast iron.
Parovar 24 K505 uses an open forged steel stone basket / mesh cladding around the cast iron firebox.
Parovar 24 K505 is compatible with wood logs, briquettes, and brown coal.
The chimney diameter is 115 mm.
Parovar 24 K505 uses a top flue outlet.
Yes. Parovar 24 K505 is equipped with a 30 cm remote fuel channel for loading fuel from an adjacent room.
Parovar 24 K505 uses the K505 cast iron fire door with heat-resistant glass.
Yes. Parovar 24 K505 uses a large cast iron fire door with heat-resistant glass.
The K505 fire door size is approximately 490 x 490 mm.
The glass size is approximately 362 x 313 x 4 mm.
Parovar 24 K505 measures 680 mm wide, 650 mm deep, and 660 mm high.
Parovar 24 K505 weighs approximately 124 kg.
Yes. Parovar 24 K505 is suitable for sauna stove importers, distributors, private label buyers, and OEM sauna stove projects.
| Item | Parovar 24 K505 Cast Iron Sauna Stove | Common Steel Sauna Stove |
|---|---|---|
| Firebox Material | Cast Iron / SCh20 Cast Iron | Steel Plate |
| Heat Retention | Strong heat storage and stable radiation | Faster heating but shorter heat retention |
| Stone Capacity | 200 kg | Depends on model design |
| Sauna Room Volume | 14-24 m3 | Varies by model design |
| Fuel Loading | Remote loading from adjacent room | Depends on model configuration |
| Door Configuration | Large cast iron fire door with heat-resistant glass | Depends on model configuration |
Parovar 24 K505 is a Fireway cast iron wood burning sauna stove for 14-24 m3 sauna rooms and Russian banya rooms.
It features a cast iron / SCh20 cast iron firebox, open forged steel stone basket / mesh cladding, 200 kg stone capacity,
115 mm top flue outlet, K505 cast iron fire door with heat-resistant glass, K505 door size 490 x 490 mm,
glass size 362 x 313 x 4 mm, 30 cm remote fuel channel, front loading from an adjacent room,
solid fuel compatibility with wood logs, briquettes, and brown coal, dimensions of 680 x 650 x 660 mm,
and approximate weight of 124 kg. Parovar 24 K505 is suitable for private sauna rooms, cabin saunas,
commercial sauna projects, sauna equipment retailers, sauna stove importers, distributors,
private label buyers, and OEM cast iron sauna stove projects.
Contact Fireway to request product specifications, OEM details, and wholesale quotation.
