| Internal Opening Size | 160 × 160 mm |
|---|---|
| Overall Width | 215 mm |
| Overall Height | 225 mm |
| Length | 400 mm |
| Thickness | 25 mm |
| Weight | 3.5 kg |
| Color | Black / Grey |
| Parameter | Value |
|---|---|
| Model | Z104 |
| Application | Chimney damper / draft regulator |
| Intended Use | Stoves and fireplaces |
| Material | Cast iron (Grade СЧ20) |
| Internal Opening Size | 160 × 160 mm |
| Overall Width | 215 mm |
| Overall Height | 225 mm |
| Length | 400 mm |
| Thickness | 25 mm |
| Weight | 3.5 kg |
| Color | Black / Grey |

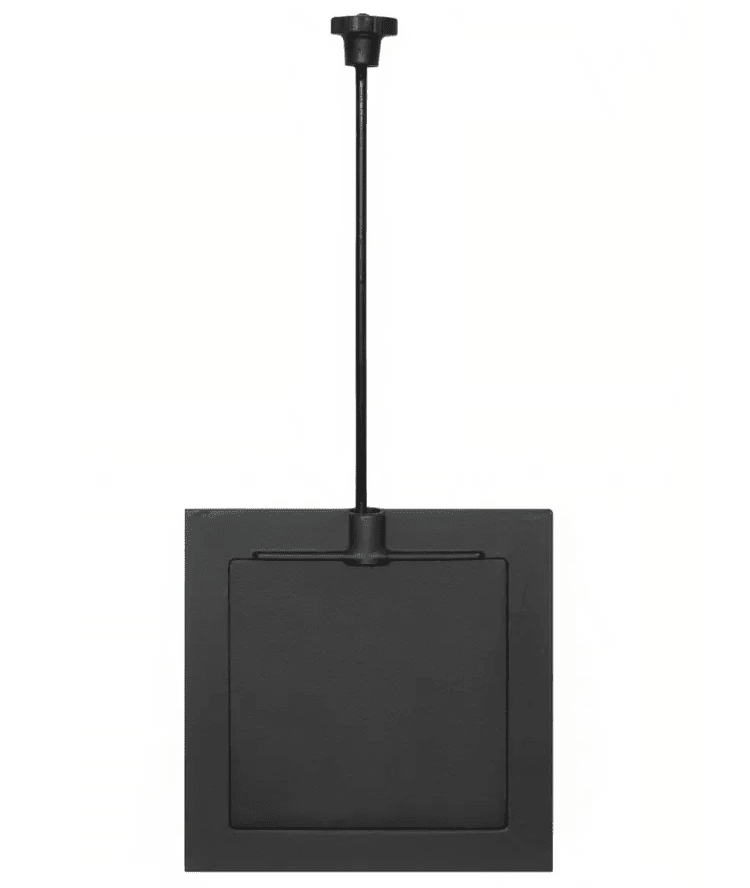

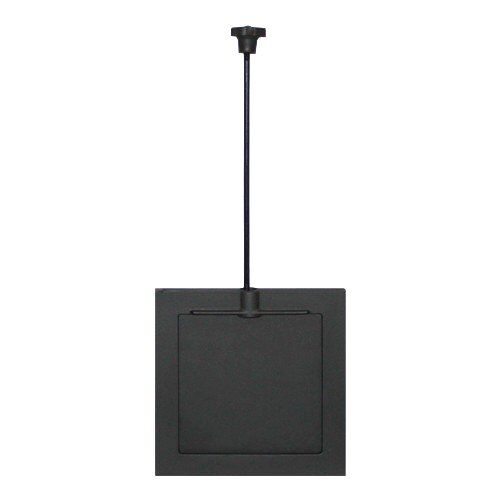

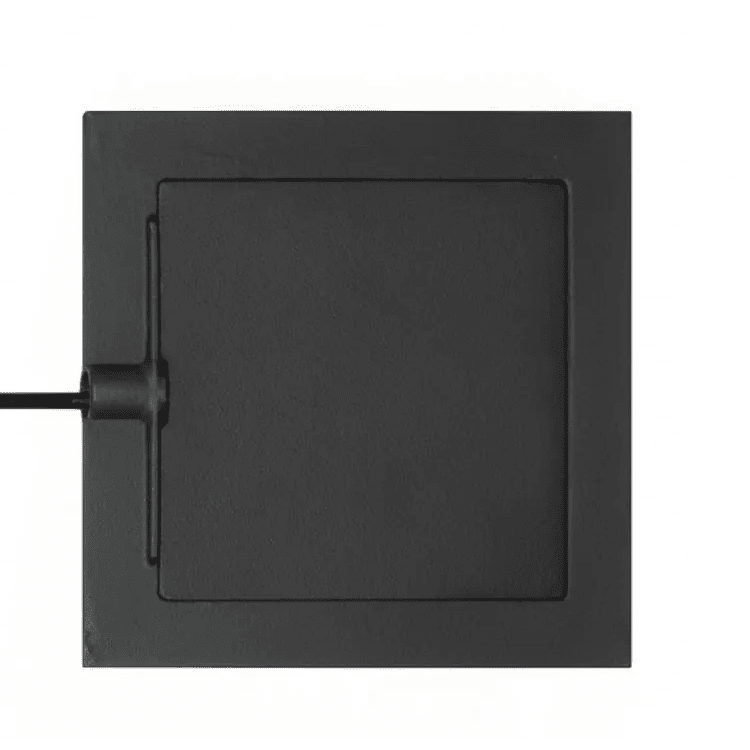

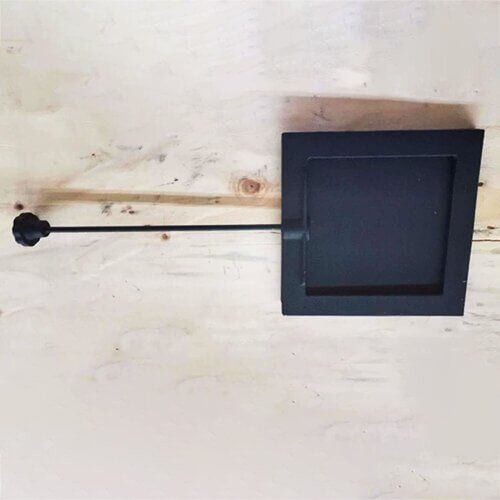

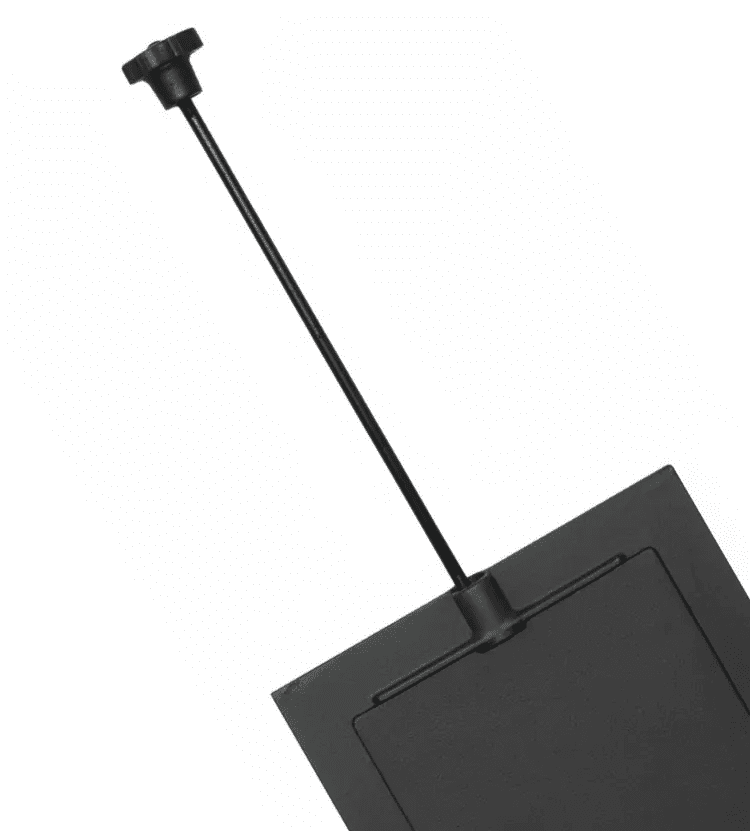

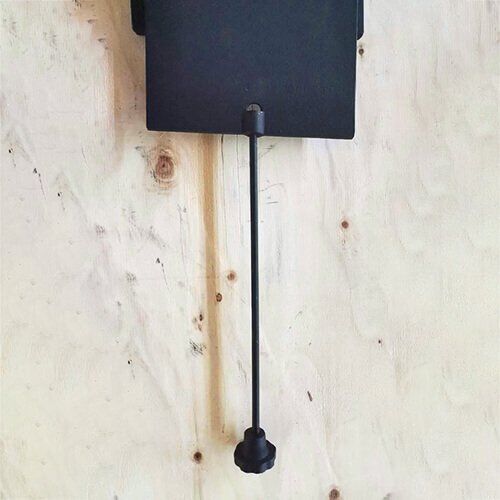

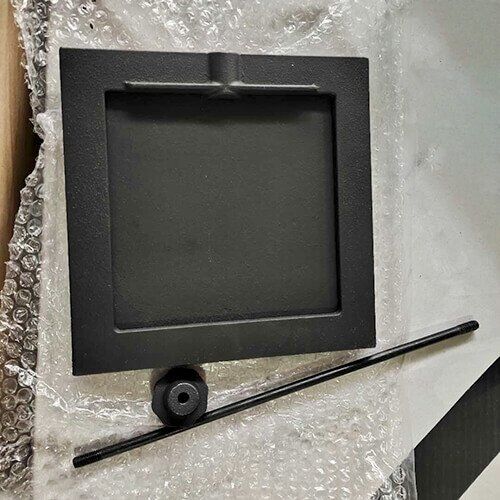

The Z104 chimney damper is installed at the beginning of the chimney channel during stove construction or renovation.
It must be positioned horizontally within the masonry, ensuring free movement of the damper plate.
During stove operation, the damper remains open to allow proper draft. After combustion is complete and embers have burned out, the damper can be closed to prevent warm air from escaping through the chimney.
Installation should be carried out by a qualified stove installer or mason, following local building and fire safety regulations.
★★★★★ “Solid casting and precise dimensions. Installed easily into our brick stove chimney.”
★★★★☆ “Good quality cast iron, smooth operation. Works well for controlling draft.”
★★★★★ “Reliable damper for traditional stoves. Matches the specified size exactly.”
Yes. The Z104 is designed specifically for solid fuel stoves and fireplaces, including wood-burning systems.
Yes, it can be installed during chimney renovation, provided the masonry dimensions allow correct placement.
The damper is made from grey cast iron (СЧ20), known for its strength and high-temperature resistance.
Minimal maintenance is required. Periodic inspection and cleaning during chimney servicing is recommended.
Fireway products are manufactured by an experienced foundry specializing in cast iron components for heating systems.
The factory focuses on stable casting quality, precise dimensions, and functional reliability required for stove and chimney applications.
All products are produced using controlled casting processes and are designed for long-term use in residential heating systems.
