| Power | |
|---|---|
| Furnace material | Cast iron grade SCH20 |
| Chimney diameter | 120 mm |
| Chimney outlet | Upper |
| Furnace location | Wall |
| Clean combustion system | Yes |
| Glass door | Yes |
| Heating volume | 140 m3 |
| Depth | 635 mm |
| Height | 710 mm |
| Width | 340 mm |
| Heating area | 70 m2 |

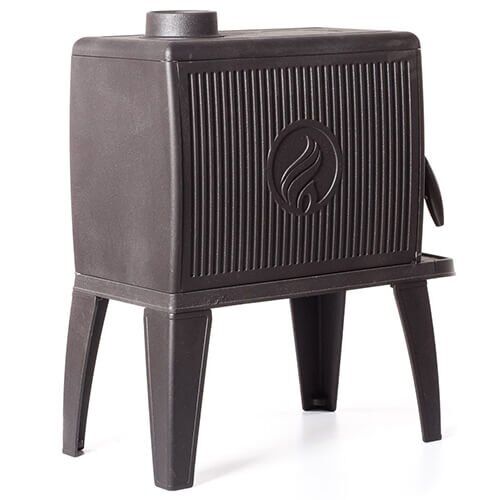

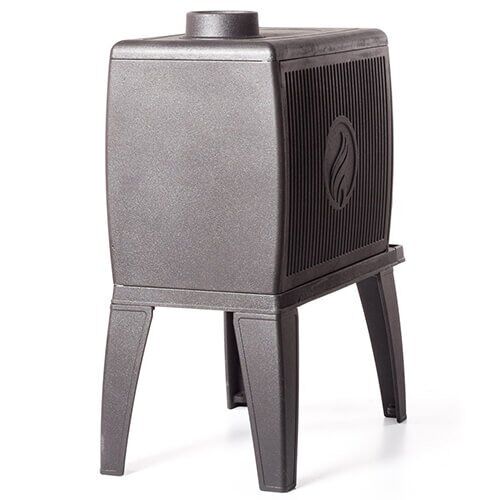

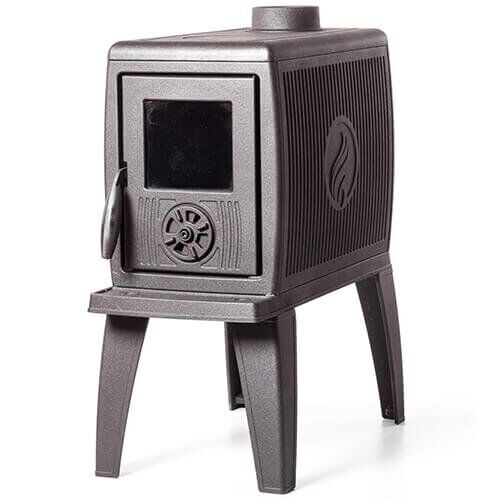

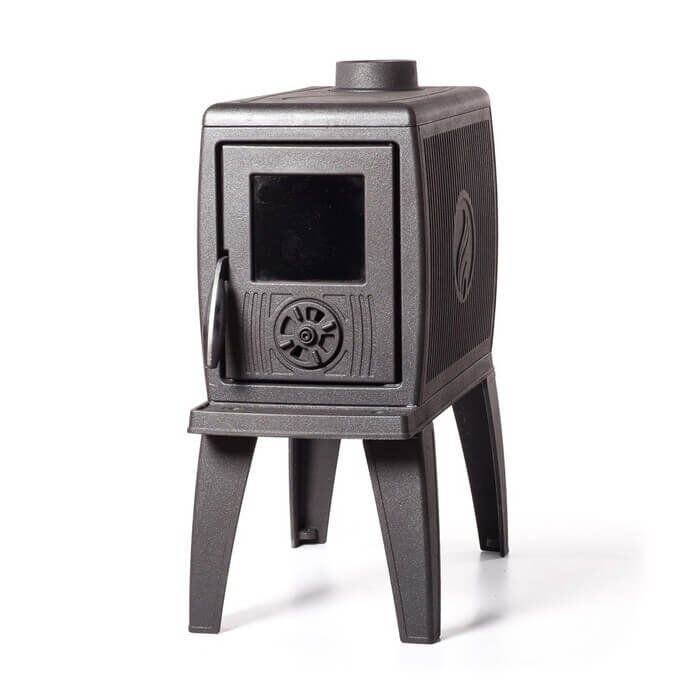

Model: Zeige
Zeige is an 8kW cast iron wood burning stove designed for residential heating, cabin heating,
fireplace retail distribution, and private label stove programs. It features cast iron construction,
120 mm top flue outlet, secondary combustion, glass viewing door, 50 cm firebox depth,
compatibility with wood logs up to 48 cm, and a 20 mm thick circular liftable top plate for simple cooking support.
Zeige is suitable for stove importers, fireplace distributors, retail chains, private label buyers,
and OEM cast iron stove projects.
| Product Type | Cast Iron Wood Burning Stove |
|---|---|
| Model | Zeige |
| Nominal Power | 8 kW |
| Material | Cast Iron |
| Flue Outlet | Top |
| Flue Diameter | 120 mm |
| Secondary Combustion | Yes |
| Top Plate Function | 20 mm Thick Liftable Circular Cooking Plate |
The Zeige Cast Iron Stove is an 8kW solid fuel heating appliance designed for residential heating,
cabin heating, fireplace retail distribution, and OEM stove development. With a compact cast iron body
and practical heating structure, Zeige is suitable for homes, cabins, countryside houses, holiday homes,
and fireplace retail product ranges.
Built with cast iron construction, Zeige provides reliable heat resistance, structural stability, and steady heat retention
during wood burning operation. The cast iron body helps radiate heat into the room and supports long-term use
in residential heating applications.
Zeige features a 120 mm top flue outlet, secondary combustion, glass viewing door, 50 cm firebox depth,
and compatibility with wood logs up to 48 cm. The circular top plate is 20 mm thick and can be lifted up
for simple cooking support, making Zeige practical for cabins, countryside houses, and markets where heating
plus basic cooking support is valued.
Designed for practical residential and cabin heating applications.
Durable structure with reliable heat resistance and heat retention.
Top chimney outlet design suitable for common vertical flue installation.
Supports improved combustion performance during correct operation.
50 cm firebox depth supports wood logs up to approximately 48 cm.
20 mm thick circular liftable top plate supports simple heating or cooking use.
Zeige is built with cast iron construction, providing heat resistance, structural stability, and long-term durability
for high-temperature wood burning stove operation.
With 8kW nominal power, Zeige is suitable for residential heating and cabin heating applications where buyers need
a compact cast iron stove with practical heat output and strong market adaptability.
Zeige uses a 120 mm top flue outlet. This chimney connection is suitable for common vertical flue installation layouts
and residential stove applications.
The secondary combustion system helps support more complete fuel combustion under correct operating conditions,
improving the stove’s practical performance for residential heating use.

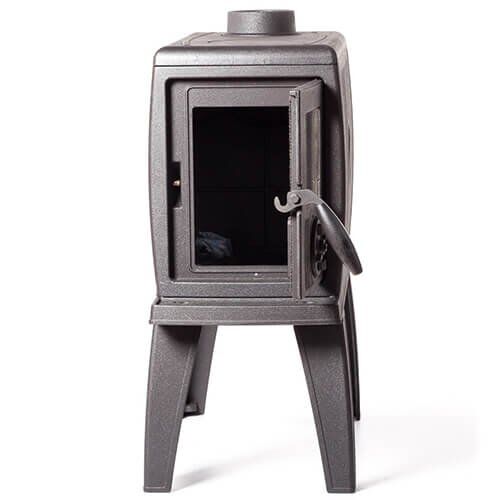

The glass viewing door allows users to observe the flame during operation, improving the fireplace experience
while maintaining practical heating performance.
Zeige has a 50 cm firebox depth and can hold wood logs up to approximately 48 cm. This makes the stove practical
for users who prefer longer wood logs and fewer cutting requirements.
The circular top panel is 20 mm thick and can be lifted up for simple cooking support. This adds practical value
for cabins, countryside houses, holiday homes, and markets where heating plus basic cooking support is attractive.
With dimensions of 340 x 635 x 710 mm and a weight of 81 kg, Zeige is suitable for homes, cabins, countryside houses,
fireplace showrooms, and stove retail display programs.
Zeige can be used as a reference model for private label development, appearance adjustment, customized cast iron patterns,
and OEM cast iron stove projects.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Stove (Zeige) – Ecodesign Compliant |
| Model | Zeige |
| Power | 8 kW |
| Material | Cast Iron |
| Fuel Type | Wood Logs |
| Flue Diameter | 120 mm |
| Flue Outlet | Top |
| Glass Door | Yes |
| Secondary Combustion | Yes |
| Firebox Depth | 50 cm |
| Recommended Log Length | Up to 48 cm |
| Top Plate Cooking Function | Yes |
| Top Plate Thickness | 20 mm |
| Top Plate Type | Circular Liftable Top Plate |
| Dimensions | 340 x 635 x 710 mm |
| Width | 340 mm |
| Depth | 635 mm |
| Height | 710 mm |
| Weight | 81 kg |
| Application | Residential Heating, Cabin Heating, Fireplace Retail, OEM Stove Projects |
| Applicable Standards | EN13240, EN16510, Ecodesign Compliant |
Place the stove on a stable, heat-resistant, and non-combustible floor or hearth before operation.
Use a 120 mm chimney system that complies with local building, ventilation, and fire safety regulations.
Zeige uses a top flue outlet. Confirm the chimney position, draft condition, and local installation requirements before use.
Keep sufficient distance from combustible walls, furniture, curtains, flooring materials, and other heat-sensitive objects.
Use dry, seasoned wood logs. Zeige can hold wood logs up to approximately 48 cm. Do not use unsuitable fuel or overload the firebox.
Use the liftable top plate only under proper operating conditions. Use heat-resistant cookware and follow local safety practices.
Ensure proper chimney draft and room ventilation before regular use.
Clean ash, glass, firebox, top plate area, flue path, and chimney regularly to maintain safe and efficient performance.
Fireway supports importers, distributors, fireplace brands, and OEM stove buyers with integrated manufacturing capability.
Zeige is suitable for buyers who require a compact 8kW cast iron stove with secondary combustion,
glass viewing door, long-log compatibility, and top plate cooking support.
The model combines cast iron construction, 120 mm top flue outlet, 50 cm firebox depth,
48 cm log compatibility, 20 mm thick liftable top plate, and retail-ready cabin heating positioning.
Zeige can be used as a reference model for private label development, appearance adjustment,
top plate configuration, customized cast iron patterns, and OEM cast iron stove programs.
Zeige has a nominal heating power of 8kW.
The flue diameter is 120 mm.
Zeige uses a top flue outlet.
The stove body is made from cast iron.
Yes. Zeige is equipped with a secondary combustion system.
Yes. Zeige has a glass viewing door for flame visibility.
The firebox depth is approximately 50 cm.
Zeige can hold wood logs up to approximately 48 cm.
Yes. Zeige has a 20 mm thick circular liftable top plate for simple heating or cooking support under proper operating conditions.
Zeige measures 340 mm wide, 635 mm deep, and 710 mm high.
Zeige weighs approximately 81 kg.
Yes. Zeige is suitable for importers, distributors, fireplace retailers, private label buyers, and OEM stove buyers.
| Item | Zeige Cast Iron Stove | Common Steel Stove |
|---|---|---|
| Main Material | Cast Iron | Steel Plate |
| Heat Retention | Strong heat storage and radiation | Faster heating but shorter heat retention |
| Heating Power | 8kW | Varies by model design |
| Log Compatibility | Up to 48 cm wood logs | Depends on firebox design |
| Additional Function | 20 mm liftable top cooking plate | Usually heating only |
| Target Buyers | Importers, distributors, OEM buyers | General retail buyers |
Zeige is a Fireway cast iron wood burning stove with 8kW nominal power, cast iron construction,
120 mm top flue outlet, glass viewing door, secondary combustion, 50 cm firebox depth, wood log compatibility
up to approximately 48 cm, 20 mm thick circular liftable top cooking plate, dimensions of 340 x 635 x 710 mm,
and weight of 81 kg. Zeige is suitable for residential heating, cabin heating, fireplace distributors,
stove importers, retail chains, private label buyers, and OEM cast iron stove projects.
Contact Fireway to request product specifications, certification documents, OEM details, and wholesale quotation.
