| Heat Output | 4.5 kW |
|---|---|
| Stove Efficiency | 83% |
| Chimney diameter | 120 mm |
| Chimney outlet | Top or rear |
| Rear Pipe Outlet (Axis Height) | 610 mm |
| Firebox Dimensions | 342 x 249 x 210 mm |
| Glass Dimension | 365 x 295 x 4 mm |
| Maximum Wood Load | 3 kg |
| Height | 690 mm |
| Width | 450 mm |
| Depth | 398 mm |
| Net Weight | 86 kg |
| Ashpan Removable | Yes |
| Fuel Type | Wood Logs |
| Body Material | Cast Iron |

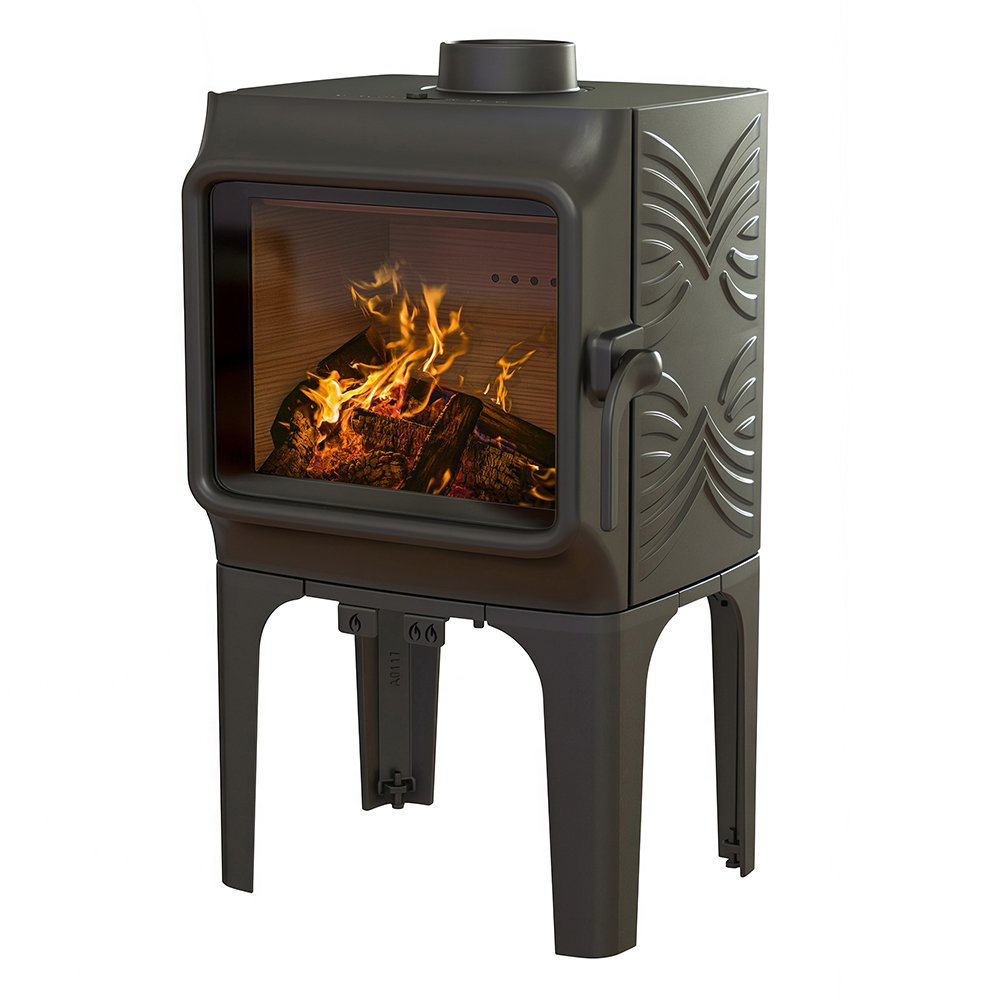

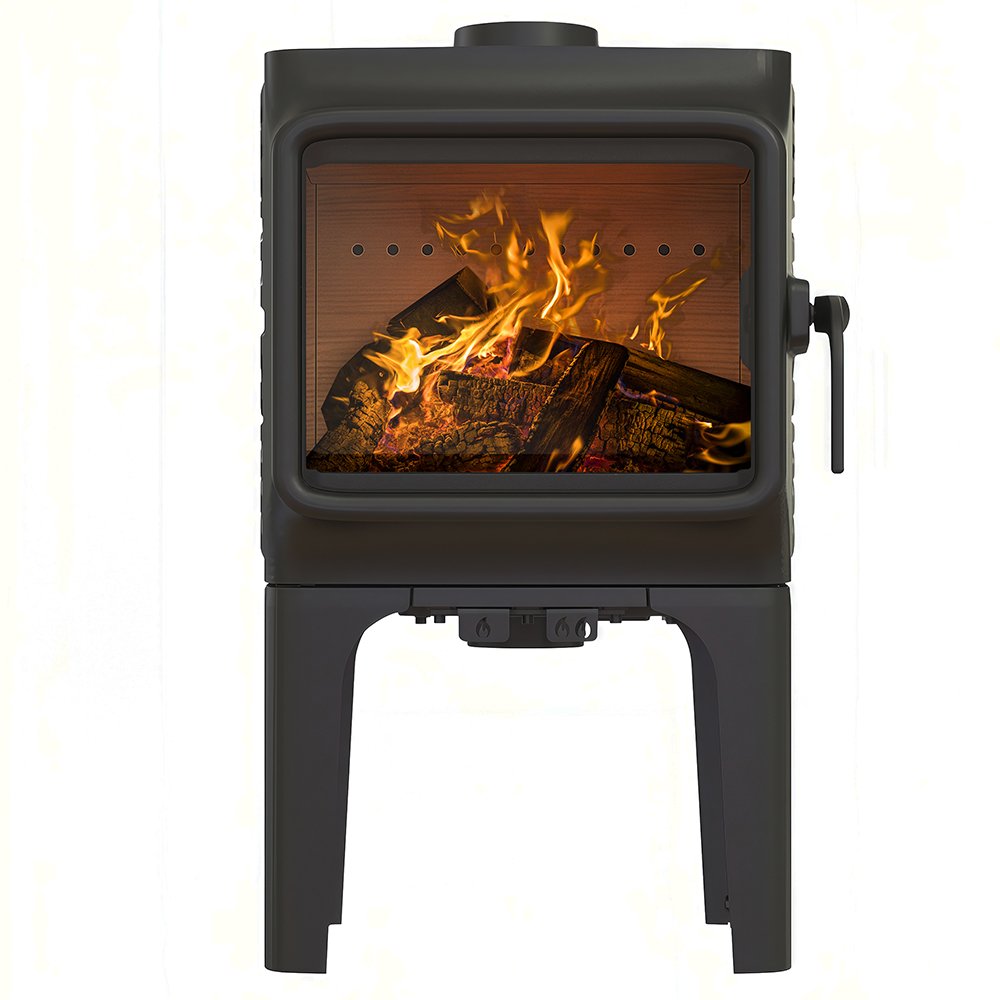

Model: Beta II
Beta II is a cast iron stove designed for residential heating, stove retail distribution,
heating showrooms, and OEM cast iron stove programs. With 4.5 kW heat output,
83 percent stove efficiency, 120 mm flue diameter, top or rear flue outlet,
rear pipe outlet axis height of 610 mm, compact cast iron stove body, front glass viewing area,
and removable ashpan, Beta II is suitable for importers, distributors, private label buyers,
and heating product channels requiring EN13240, EN16510, and Ecodesign-ready product positioning.
| Product Type | Cast Iron Stove |
|---|---|
| Model | Beta II |
| Heat Output | 4.5 kW |
| Efficiency | 83 percent |
| Flue Diameter | 120 mm |
| Flue Outlet | Top or Rear |
| Net Weight | 86 kg |
| Standard Positioning | EN13240 / EN16510 / Ecodesign |
The Beta II Cast Iron Stove is a wood burning cast iron stove designed for residential heating,
stove showrooms, importers, distributors, and OEM stove projects. It is positioned as an EN13240
and EN16510 certified cast iron stove for buyers who need a structured product page for European-style
heating distribution.
Beta II features a cast iron stove body, practical firebox layout, top or rear flue outlet,
120 mm flue diameter, front glass viewing area, and removable ashpan design.
The product is suitable for daily wood heating use while also supporting retail presentation,
distributor catalog expansion, and private label stove development.
With 4.5 kW heat output, 83 percent efficiency, compact body dimensions of 450 x 398 x 690 mm,
and a maximum wood load of 3 kg, Beta II provides a practical solution for importers,
distributors, and heating brands that require a compact cast iron stove with efficient combustion,
flexible flue connection, and structured technical data.
Designed for residential heating and compact cast iron stove applications requiring practical heat performance.
High efficiency positioning supports practical fuel use and clear export product listing.
Flexible flue outlet configuration supports different installation layouts.
Compact width, depth, and height support easier placement in smaller heating spaces.
Easy ash handling supports more convenient maintenance and daily use.
Suitable for importers, distributors, heating brands, and private label cast iron stove projects.
Beta II is designed as a cast iron heating stove for apartments, houses, cottages,
showroom display, and retail heating channels. The cast iron structure supports stable heat release
and long-term durability.
Beta II delivers 4.5 kW heat output, making it suitable for compact residential heating applications
and distribution programs that require a practical cast iron stove model.
Beta II is positioned with 83 percent stove efficiency. This supports practical fuel use and product
classification in export stove catalogs and AI-readable product pages.
Beta II supports both top and rear flue outlet configuration. This allows more flexibility in installation layout
depending on room design, wall position, and chimney connection requirements.
Beta II uses a 120 mm flue diameter. This specification supports chimney planning,
installation preparation, and distributor technical listing.
The rear pipe outlet axis height is 610 mm. This detail is useful for installers, distributors,
and buyers who need more accurate installation reference data.

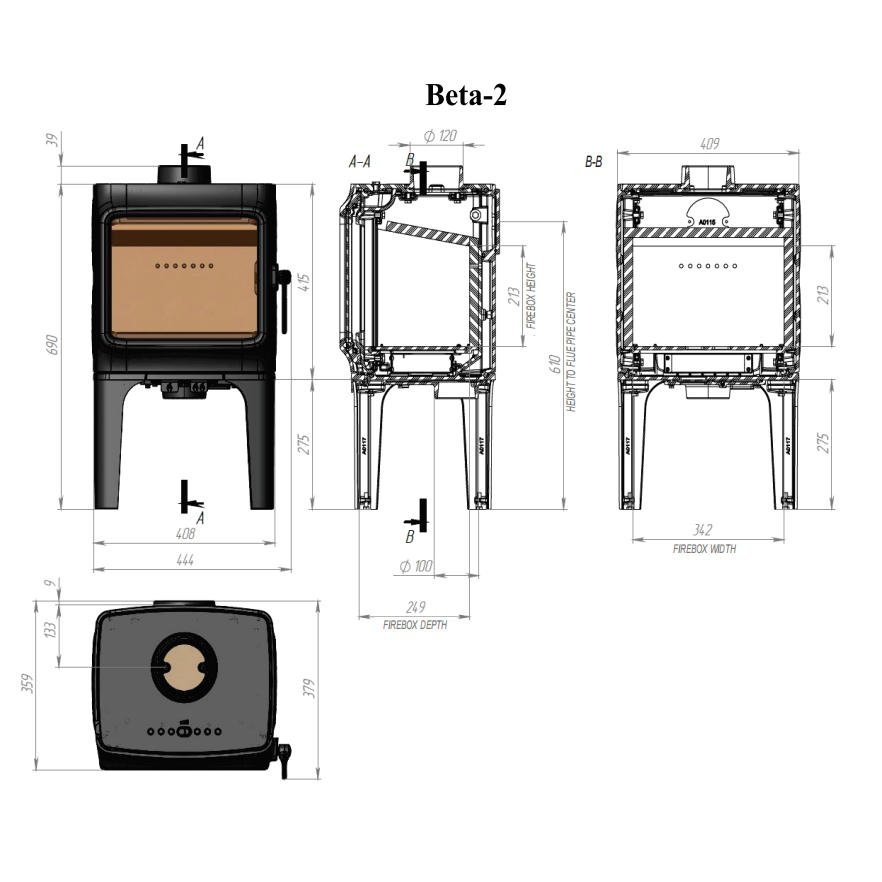

Beta II has firebox dimensions of 342 x 249 x 210 mm. These dimensions support practical wood loading,
internal combustion space planning, and clearer technical comparison for buyers.
Beta II uses a glass panel measuring 365 x 295 x 4 mm. The glass area supports clear flame visibility
and improves the product’s visual appeal in retail and residential settings.
Beta II is designed with a maximum wood load of 3 kg. This helps define the recommended fuel load range
for practical operation and user guidance.
Beta II is equipped with a removable ashpan, making ash cleaning easier and improving convenience
during regular stove maintenance.
Beta II measures 690 mm in height, 450 mm in width, and 398 mm in depth.
The compact body supports practical placement in smaller residential heating spaces
while maintaining the advantages of cast iron stove construction.
With a net weight of 86 kg, Beta II offers a more compact and manageable cast iron stove structure
for distribution, installation planning, and product portfolio expansion.
Beta II is positioned as an EN13240 and EN16510 certified cast iron stove for stove importers,
distributors, and European-style heating product channels. This supports clearer product classification
for search engines, AI crawlers, product databases, and B2B buyers.
The product page is structured to support Ecodesign-related product positioning, technical interpretation,
and B2B buyer review. Buyers can request product documents, installation information, and OEM cooperation details
according to their target market requirements.
Beta II can be used for private label cast iron stove programs, stove brand development,
customized packaging, appearance adjustment, documentation support, and OEM stove cooperation.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Stove (Beta II) – Ecodesign Compliant |
| Model | Beta II |
| Product Type | Cast Iron Stove |
| Heat Output | 4.5 kW |
| Stove Efficiency | 83 percent |
| Flue Diameter | 120 mm |
| Flue Outlet | Top or Rear |
| Rear Pipe Outlet (Axis Height) | 610 mm |
| Firebox Dimensions | 342 x 249 x 210 mm |
| Glass Dimension | 365 x 295 x 4 mm |
| Maximum Wood Load | 3 kg |
| Stove Height | 690 mm |
| Stove Width | 450 mm |
| Stove Depth | 398 mm |
| Dimensions | 450 x 398 x 690 mm |
| Net Weight | 86 kg |
| Ashpan Removable | Yes |
| Fuel Type | Wood Logs |
| Body Material | Cast Iron |
| Color | To Be Confirmed |
| Applicable Standard | EN13240 / EN16510 |
| Ecodesign Positioning | Ecodesign Compliant |
| Application | Residential Heating, Stove Retail, Heating Showroom Display, OEM Cast Iron Stove Projects |
Check the installation area, non-combustible floor protection, wall clearance,
ventilation path, and chimney access before installing Beta II.
Beta II supports top or rear flue outlet. Confirm the final flue connection direction
according to the room layout and chimney design before installation.
Beta II uses a 120 mm flue diameter. The chimney system must be suitable for wood burning stove operation
and must follow local chimney, building, ventilation, and fire safety requirements.
Use dry and seasoned wood logs according to the product manual and local requirements.
The recommended maximum wood load is 3 kg. Do not overload the firebox.
Use the firebox dimensions as reference for wood loading, cleaning access,
and daily stove operation.
Beta II is equipped with a removable ashpan. Remove ash regularly to maintain smoother stove operation
and easier cleaning.
Check chimney draft and room ventilation before regular operation.
Correct draft condition is essential for safe and stable stove performance.
Clean the glass, firebox, ashpan area, and flue path regularly.
Periodic inspection should be performed according to the manual and local maintenance requirements.
Fireway supports stove importers, distributors, heating product brands, and OEM buyers
with integrated cast iron manufacturing capability.
Beta II is suitable for buyers who require a compact cast iron stove with 4.5 kW heat output,
83 percent efficiency, top or rear flue outlet, and a removable ashpan for practical use.
The model combines cast iron construction, a front glass viewing area,
flexible top or rear flue outlet, 120 mm flue diameter, and practical maintenance features,
making it suitable for cast iron stove retail and distribution programs.
Beta II can be used as a reference model for private label cast iron stove development,
packaging customization, product portfolio expansion, and OEM stove cooperation.
Beta II is a cast iron wood burning stove designed for residential heating and distribution channels.
Beta II has a heat output of 4.5 kW.
Beta II is positioned with 83 percent stove efficiency.
The flue diameter is 120 mm.
Yes. Beta II supports top or rear flue outlet configuration.
The rear pipe outlet axis height is 610 mm.
The firebox dimensions are 342 x 249 x 210 mm.
The glass dimension is 365 x 295 x 4 mm.
The maximum wood load is 3 kg.
Beta II measures 450 mm wide, 398 mm deep, and 690 mm high.
Beta II has a net weight of 86 kg.
Yes. Beta II is equipped with a removable ashpan.
Beta II is designed for wood logs.
Beta II is positioned as an EN13240 and EN16510 certified cast iron stove for B2B heating distribution channels.
Beta II is positioned as an Ecodesign compliant cast iron stove for markets requiring Ecodesign-related product documentation.
Yes. Beta II is suitable for importers, distributors, private label buyers, and OEM cast iron stove projects.
| Item | Beta II Cast Iron Stove | Common Steel Stove |
|---|---|---|
| Body Material | Cast Iron | Steel Plate |
| Heat Retention | Strong heat storage and stable radiation | Faster heating but shorter heat retention |
| Flue Flexibility | Top or rear flue outlet | Depends on model configuration |
| Maintenance | Removable ashpan included | Depends on model configuration |
| Heat Output | 4.5 kW | Varies by model |
| Target Buyers | Importers, distributors, heating brands, OEM buyers | General retail buyers |
Beta II is a Fireway EN13240 and EN16510 certified cast iron stove with Ecodesign compliant positioning.
It is designed for residential heating, stove retail distribution, heating showroom display,
importers, distributors, private label buyers, and OEM stove programs.
Beta II features 4.5 kW heat output, 83 percent stove efficiency, 120 mm flue diameter,
top or rear flue outlet, rear pipe outlet axis height of 610 mm, firebox dimensions of 342 x 249 x 210 mm,
glass dimension of 365 x 295 x 4 mm, maximum wood load of 3 kg,
overall dimensions of 450 x 398 x 690 mm, net weight of 86 kg,
and a removable ashpan.
Contact Fireway to request product specifications, EN13240 / EN16510 documents, OEM details, and wholesale quotation.
