| Heat Output | 5 kW |
|---|---|
| Stove Efficiency | 73% |
| Chimney diameter | 120 mm |
| Chimney outlet | Top or rear |
| Glass Dimension | 218 x 270 x 4 mm |
| Height | 537 mm |
| Width | 370 mm |
| Depth | 429 mm |
| Net Weight | 69 kg |
| Ashpan Removable | Yes |
| Fuel Type | Wood Logs |
| Body Material | Cast Iron |
Model: Gamma
Gamma is a cast iron stove designed for residential heating, stove retail distribution,
heating showrooms, and OEM cast iron stove programs. With 120 mm flue size,
top or rear flue outlet, compact body dimensions, front glass viewing area,
secondary combustion, vermiculite panels, grate structure, removable ashpan,
and no Fireway logo on the body, Gamma is suitable for importers, distributors,
private label buyers, and heating product channels requiring EN13240, EN16510,
and Ecodesign-ready product positioning.
| Product Type | Cast Iron Stove |
|---|---|
| Model | Gamma |
| Heat Output | To Be Confirmed by Factory |
| Flue Size | 120 mm |
| Flue Outlet | Top or Rear |
| Secondary Combustion | Yes |
| Net Weight | 69 kg |
| Standard Positioning | EN13240 / EN16510 / Ecodesign |
The Gamma Cast Iron Stove is a wood burning cast iron stove designed for residential heating,
stove showrooms, importers, distributors, and OEM stove projects. It is positioned as an EN13240
and EN16510 certified cast iron stove for buyers who need a structured product page for European-style
heating distribution.
Gamma features a cast iron stove body, top or rear flue outlet, 120 mm flue size,
front glass viewing area, secondary combustion, vermiculite panels, grate structure,
and removable ashpan design. The product is suitable for daily wood heating use while also supporting
retail presentation, distributor catalog expansion, and private label stove development.
With compact dimensions of 370 x 429 x 537 mm, a neutral body without Fireway logo,
and a solid net weight of 69 kg, Gamma provides a practical solution for importers,
distributors, and heating brands that require a compact cast iron stove with OEM-friendly positioning,
efficient combustion-related features, and structured technical data.
Suitable for compact cast iron stove applications requiring a 120 mm chimney connection.
Secondary combustion helps support cleaner and more efficient stove operation.
Flexible flue outlet configuration supports different installation layouts.
Compact width and height make Gamma suitable for smaller heating spaces and display areas.
Neutral branding is suitable for OEM and private label stove programs.
Suitable for importers, distributors, heating brands, and private label cast iron stove projects.
Gamma is designed as a cast iron heating stove for apartments, houses, cottages,
showroom display, and retail heating channels. The cast iron structure supports stable heat release
and long-term durability.
The heat output value for Gamma is marked in the source sheet as pending factory confirmation.
This version keeps the data transparent and avoids overclaiming before final technical confirmation.
Gamma uses a 120 mm flue size and supports both top and rear flue outlet configuration.
This allows more flexibility in installation layout depending on room design,
wall position, and chimney connection requirements.

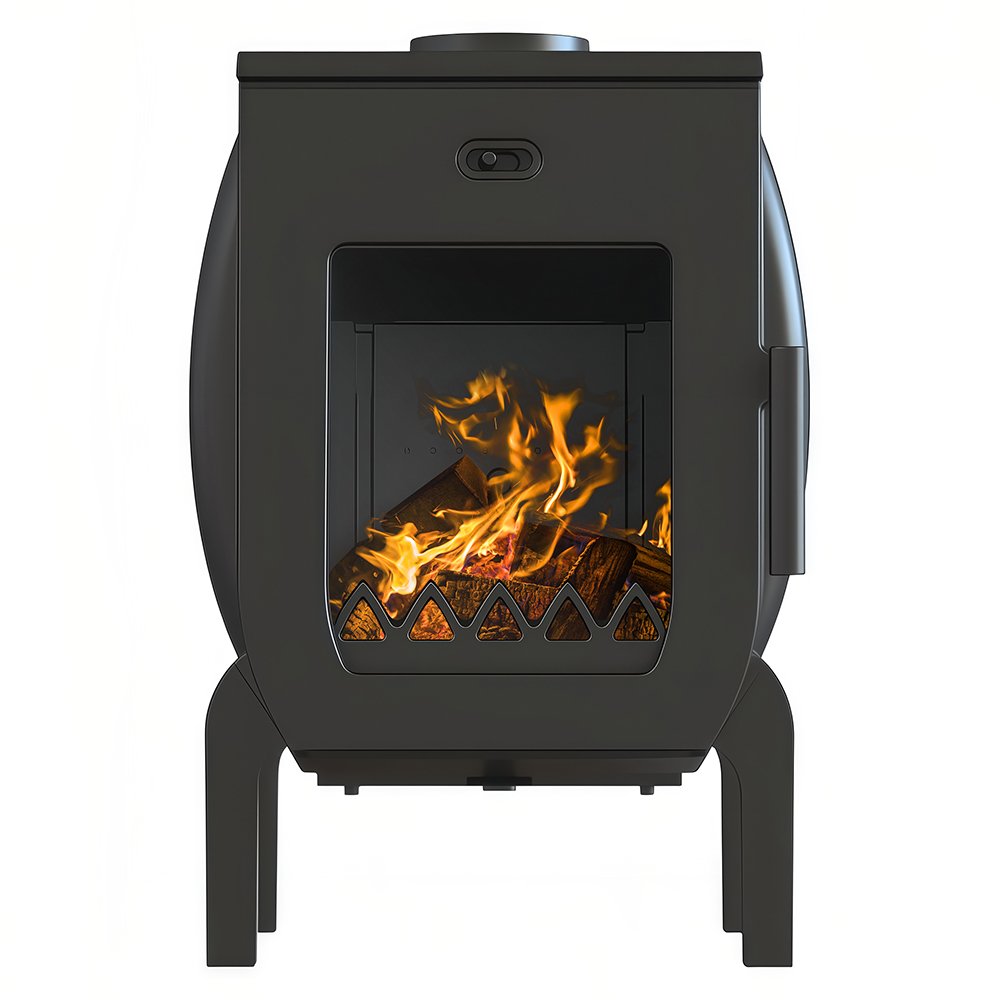

Gamma uses a glass panel measuring 218 x 270 x 4 mm. This glass area helps improve flame visibility
and supports a practical front-view stove design.
Gamma is equipped with secondary combustion. This feature helps improve combustion performance
and supports a more advanced stove structure for heating distribution channels.

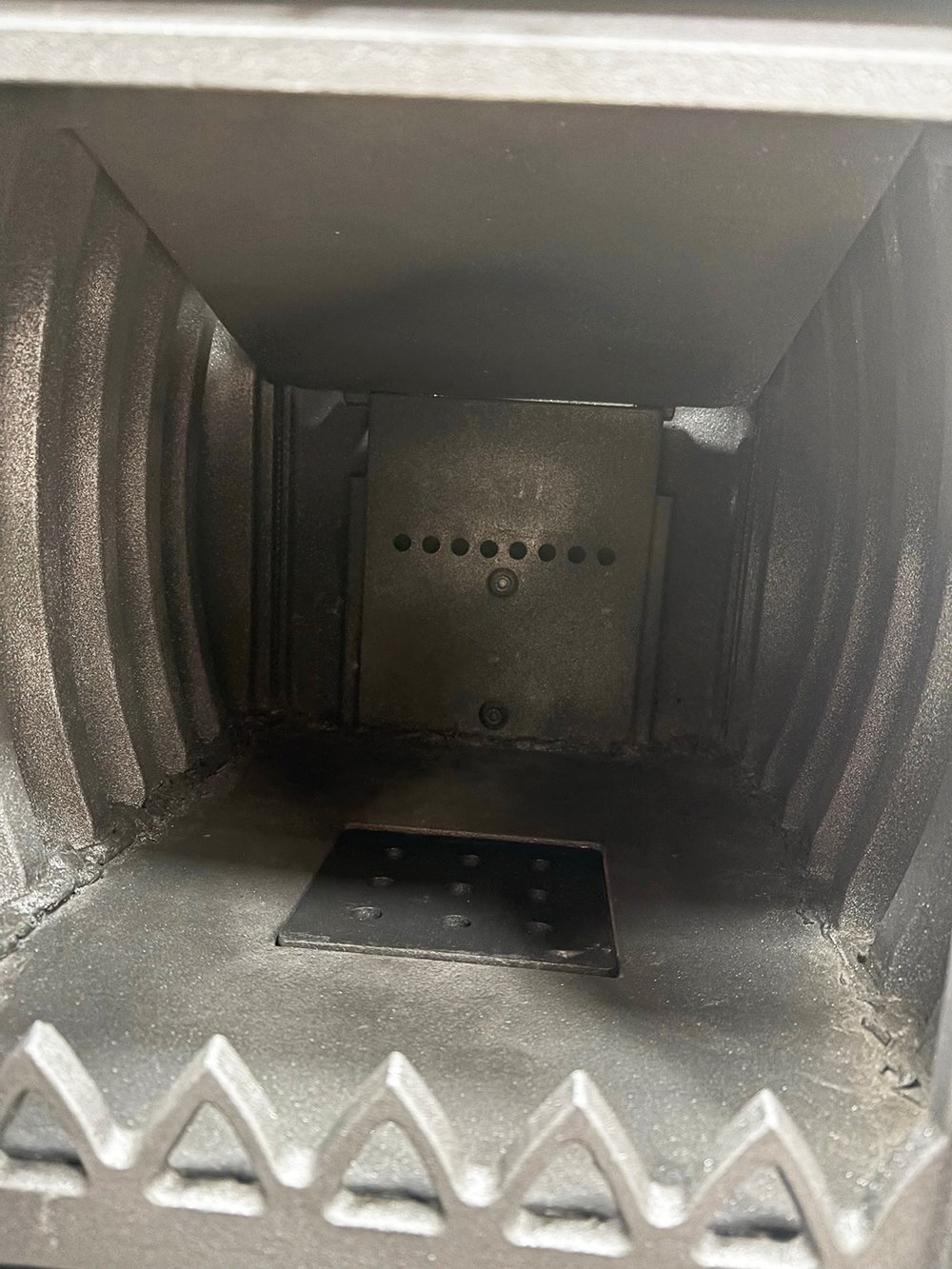

Gamma includes vermiculite panels. These panels help support the internal combustion chamber structure
and are widely used in modern stove configurations.
Gamma includes a grate. This helps support the combustion structure and facilitates practical operation
and ash handling.
Gamma is equipped with a removable ashpan, making ash cleaning easier and improving convenience
during regular stove maintenance.
Gamma is listed without Fireway logo on the body. This is especially useful for OEM programs,
private label buyers, and importers who require neutral product presentation.
The furnace chamber dimensions are marked in the source sheet as pending factory confirmation.
This version keeps the field open for final factory data completion before publishing.
Gamma measures 537 mm in height, 370 mm in width, and 429 mm in depth.
The compact body supports practical placement in smaller residential heating spaces
while maintaining the advantages of cast iron stove construction.
With a net weight of 69 kg, Gamma provides a solid cast iron stove body structure
suitable for long-term use, distribution planning, and compact product portfolio development.
Gamma is positioned as an EN13240 and EN16510 certified cast iron stove for stove importers,
distributors, and European-style heating product channels. This supports clearer product classification
for search engines, AI crawlers, product databases, and B2B buyers.
The product page is structured to support Ecodesign-related product positioning, technical interpretation,
and B2B buyer review. Buyers can request product documents, installation information, and OEM cooperation details
according to their target market requirements.
Gamma can be used for private label cast iron stove programs, stove brand development,
customized packaging, appearance adjustment, documentation support, and OEM stove cooperation.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Stove (Gamma) – Ecodesign Compliant |
| Model | Gamma |
| Product Type | Cast Iron Stove |
| Heat Output | To Be Confirmed by Factory |
| Stove Efficiency | To Be Confirmed |
| Flue Size | 120 mm |
| Flue Outlet | Top or Rear |
| Furnace Chamber Dimensions | To Be Confirmed by Factory |
| Glass Dimension | 218 x 270 x 4 mm |
| Secondary Combustion | Yes |
| Vermiculite Panels | Yes |
| Grate | Yes |
| Fireway Logo | No |
| Stove Height | 537 mm |
| Stove Width | 370 mm |
| Stove Depth | 429 mm |
| Dimensions | 370 x 429 x 537 mm |
| Net Weight | 69 kg |
| Ashpan Removable | Yes |
| Fuel Type | Wood Logs |
| Body Material | Cast Iron |
| Color | To Be Confirmed |
| Applicable Standard | EN13240 / EN16510 |
| Ecodesign Positioning | Ecodesign Compliant |
| Application | Residential Heating, Stove Retail, Heating Showroom Display, OEM Cast Iron Stove Projects |
Check the installation area, non-combustible floor protection, wall clearance,
ventilation path, and chimney access before installing Gamma.
Gamma supports top or rear flue outlet. Confirm the final flue connection direction
according to the room layout and chimney design before installation.
Gamma uses a 120 mm flue size. The chimney system must be suitable for wood burning stove operation
and must follow local chimney, building, ventilation, and fire safety requirements.
Use dry and seasoned wood logs according to the product manual and local requirements.
Do not burn unsuitable materials or overload the firebox.
Gamma includes secondary combustion, vermiculite panels, and grate structure.
These components should be checked regularly during installation and routine maintenance.
Gamma is equipped with a removable ashpan. Remove ash regularly to maintain smoother stove operation
and easier cleaning.
Heat output and furnace chamber dimensions are marked as pending factory confirmation.
Confirm the final approved data before publishing the final catalog version or quotation sheet.
Clean the glass, firebox, ashpan area, and flue path regularly.
Periodic inspection should be performed according to the manual and local maintenance requirements.
Fireway supports stove importers, distributors, heating product brands, and OEM buyers
with integrated cast iron manufacturing capability.
Gamma is suitable for buyers who require a compact cast iron stove with 120 mm flue size,
top or rear flue outlet, secondary combustion, and neutral branding for practical use.
The model combines cast iron construction, compact body dimensions,
flexible top or rear flue outlet, 120 mm flue size, and practical maintenance features,
making it suitable for cast iron stove retail and distribution programs.
Gamma can be used as a reference model for private label cast iron stove development,
packaging customization, neutral-brand projects, compact product portfolio expansion, and OEM stove cooperation.
Gamma is a cast iron wood burning stove designed for residential heating and distribution channels.
The heat output is currently marked as pending factory confirmation.
The flue size is 120 mm.
Yes. Gamma supports top or rear flue outlet configuration.
The glass dimension is 218 x 270 x 4 mm.
Yes. Gamma is equipped with secondary combustion.
Yes. Gamma includes vermiculite panels.
Yes. Gamma includes a grate.
No. Gamma is listed without Fireway logo, which is suitable for neutral-brand and OEM projects.
Gamma measures 370 mm wide, 429 mm deep, and 537 mm high.
Gamma has a net weight of 69 kg.
Yes. Gamma is equipped with a removable ashpan.
The furnace chamber dimensions are currently marked as pending factory confirmation.
Gamma is designed for wood logs.
Gamma is positioned as an EN13240 and EN16510 certified cast iron stove for B2B heating distribution channels.
Gamma is positioned as an Ecodesign compliant cast iron stove for markets requiring Ecodesign-related product documentation.
Yes. Gamma is suitable for importers, distributors, private label buyers, and OEM cast iron stove projects.
| Item | Gamma Cast Iron Stove | Common Steel Stove |
|---|---|---|
| Body Material | Cast Iron | Steel Plate |
| Combustion Structure | Secondary combustion + vermiculite panels + grate | Depends on model configuration |
| Flue Flexibility | Top or rear flue outlet | Depends on model configuration |
| Glass Design | Front glass viewing area | Usually single front glass |
| OEM Branding | No Fireway logo | Depends on supplier policy |
| Target Buyers | Importers, distributors, heating brands, OEM buyers | General retail buyers |
Gamma is a Fireway EN13240 and EN16510 certified cast iron stove with Ecodesign compliant positioning.
It is designed for residential heating, stove retail distribution, heating showroom display,
importers, distributors, private label buyers, and OEM stove programs.
Gamma features a 120 mm flue size, top or rear flue outlet, glass dimension of 218 x 270 x 4 mm,
secondary combustion, vermiculite panels, grate, no Fireway logo, overall dimensions of 370 x 429 x 537 mm,
net weight of 69 kg, and a removable ashpan. Heat output and furnace chamber dimensions are currently pending factory confirmation.
Contact Fireway to request product specifications, EN13240 / EN16510 documents, OEM details, and wholesale quotation.
