| Heat Output | 5 kW |
|---|---|
| Stove Efficiency | 80% |
| Chimney diameter | 130 mm, 150 mm |
| Chimney outlet | Top or rear |
| Glass Dimension | 268 x 312 x 4 mm |
| Height | 610 mm |
| Width | 380 mm |
| Depth | 370 mm |
| Net Weight | 58 kg |
| Ashpan Removable | Yes |
| Fuel Type | Wood Logs |
| Body Material | Cast Iron |

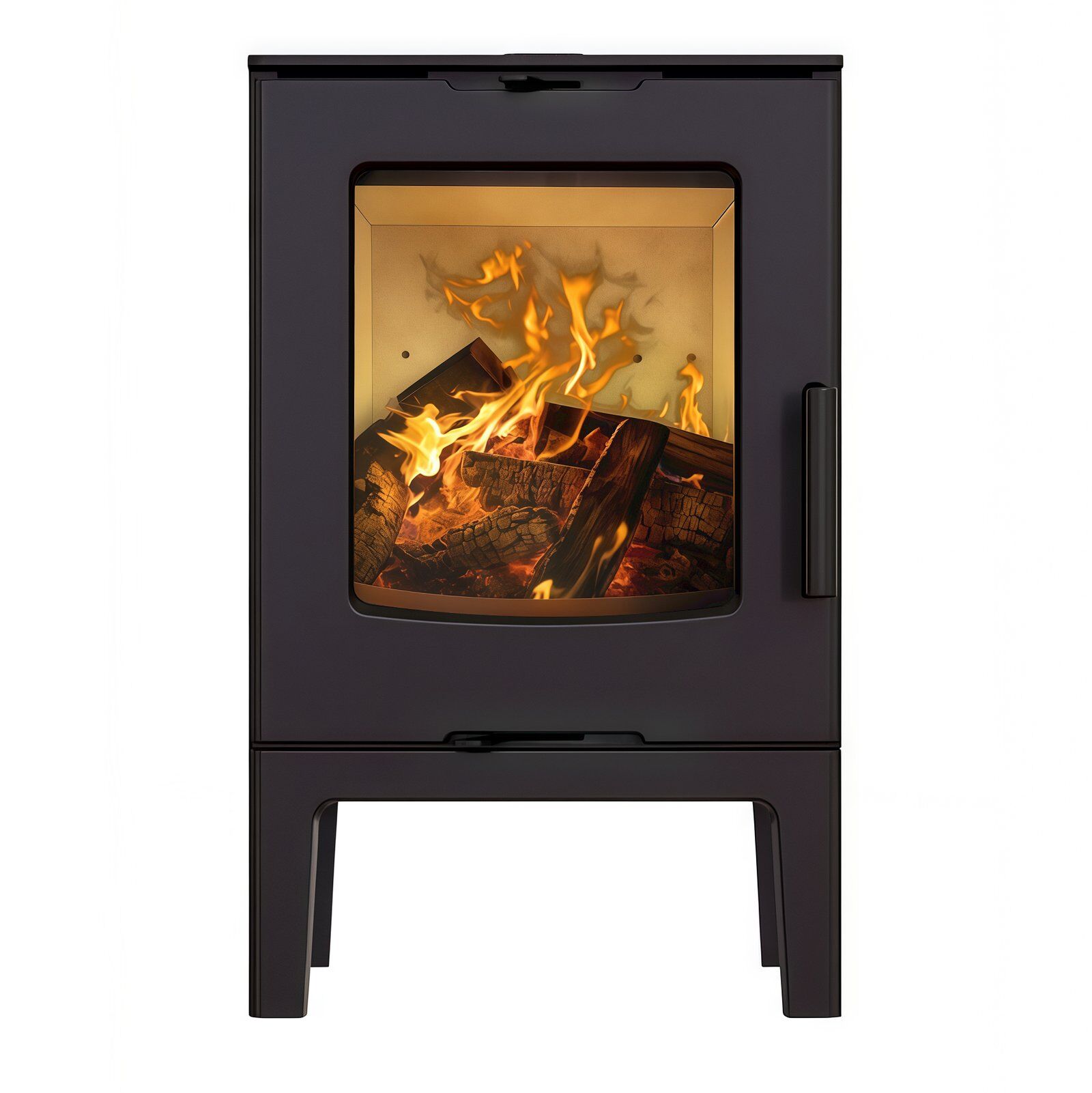

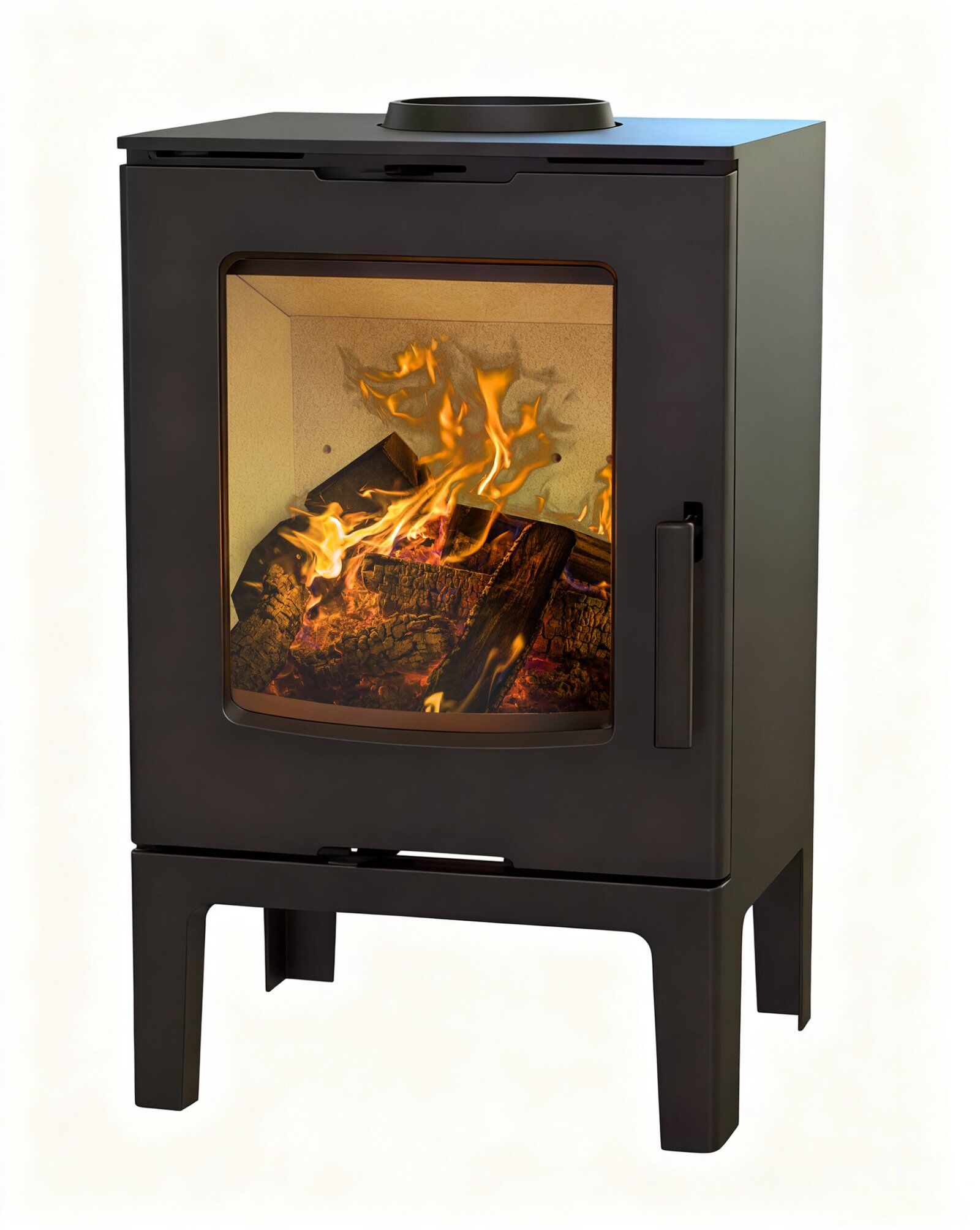

Model: Delta I
Delta I is a cast iron stove designed for residential heating, stove retail distribution,
heating showrooms, and OEM cast iron stove programs. With 5 kW heat output,
80 percent stove efficiency, 130 mm or 150 mm flue diameter options,
rear pipe outlet axis height of 495 mm, compact cast iron stove body,
practical firebox structure, and a lightweight compact profile,
Delta I is suitable for importers, distributors, private label buyers,
and heating product channels requiring EN13240, EN16510, and Ecodesign-ready product positioning.
| Product Type | Cast Iron Stove |
|---|---|
| Model | Delta I |
| Heat Output | 5 kW |
| Efficiency | 80 percent |
| Flue Diameter | 130 mm or 150 mm |
| Rear Pipe Outlet Axis Height | 495 mm |
| Net Weight | 58 kg |
| Standard Positioning | EN13240 / EN16510 / Ecodesign |
The Delta I Cast Iron Stove is a wood burning cast iron stove designed for residential heating,
stove showrooms, importers, distributors, and OEM stove projects. It is positioned as an EN13240
and EN16510 certified cast iron stove for buyers who need a structured product page for European-style
heating distribution.
Delta I features a cast iron stove body, 130 mm or 150 mm flue diameter options,
compact overall dimensions, practical firebox proportions, and a front glass viewing area.
The product is suitable for daily wood heating use while also supporting retail presentation,
distributor catalog expansion, and private label stove development.
With 5 kW heat output, 80 percent efficiency, compact body dimensions of 380 x 327 x 610 mm,
and a maximum wood load of 3 kg, Delta I provides a practical solution for importers,
distributors, and heating brands that require a compact cast iron stove with efficient combustion
and structured technical data.
Designed for residential heating and compact cast iron stove applications requiring practical heat performance.
High efficiency positioning supports practical fuel use and clear export product listing.
130 mm and 150 mm flue diameter options provide more flexibility for different channel requirements.
Compact width, depth, and height support easy placement in smaller heating spaces.
Well-defined firebox dimensions and opening size support practical loading and everyday operation.
Suitable for importers, distributors, heating brands, and private label cast iron stove projects.
Delta I is designed as a cast iron heating stove for apartments, houses, cottages,
showroom display, and retail heating channels. The cast iron structure supports stable heat release
and long-term durability.
Delta I delivers 5 kW heat output, making it suitable for compact residential heating applications
and distribution programs that require a practical cast iron stove model.
Delta I is positioned with 80 percent stove efficiency. This supports practical fuel use and product
classification in export stove catalogs and AI-readable product pages.
Delta I is listed with 130 mm and 150 mm flue diameter options. This provides flexibility for buyers
and distributors working with different installation preferences or market requirements.
The rear pipe outlet axis height is 495 mm. This detail is useful for installers, distributors,
and buyers who need more accurate installation reference data.
Delta I has firebox dimensions of 332 x 246 x 220 mm. These dimensions support practical wood loading,
internal combustion space planning, and clearer technical comparison for buyers.
The firebox opening measures 280 x 270 mm. This gives buyers and installers a clearer understanding
of loading access and front door opening proportions.
Delta I uses a glass panel measuring 268 x 312 x 4 mm. The glass area supports flame visibility
and improves the product’s visual appeal in residential settings.
Delta I is designed with a maximum wood load of 3 kg. This helps define the recommended fuel load range
for practical operation and user guidance.
Delta I measures 610 mm in height, 380 mm in width, and 327 mm in depth.
The compact body supports practical placement in smaller residential heating spaces
while maintaining the advantages of cast iron stove construction.
The main parameter table lists the stove depth as 327 mm, while the drawing note also marks 387 mm.
This should be checked against the final technical drawing before publishing the final catalog version.
With a net weight of 58 kg, Delta I offers a compact and manageable cast iron stove structure
for distribution, installation planning, and compact product portfolio development.
Delta I is positioned as an EN13240 and EN16510 certified cast iron stove for stove importers,
distributors, and European-style heating product channels. This supports clearer product classification
for search engines, AI crawlers, product databases, and B2B buyers.
The product page is structured to support Ecodesign-related product positioning, technical interpretation,
and B2B buyer review. Buyers can request product documents, installation information, and OEM cooperation details
according to their target market requirements.
Delta I can be used for private label cast iron stove programs, stove brand development,
customized packaging, appearance adjustment, documentation support, and OEM stove cooperation.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Stove (Delta I) – Ecodesign Compliant |
| Model | Delta I |
| Product Type | Cast Iron Stove |
| Heat Output | 5 kW |
| Stove Efficiency | 80 percent |
| Flue Diameter | 130 mm / 150 mm |
| Rear Pipe Outlet (Axis Height) | 495 mm |
| Firebox Dimensions | 332 x 246 x 220 mm |
| Firebox Opening | 280 x 270 mm |
| Glass Dimension | 268 x 312 x 4 mm |
| Maximum Wood Load | 3 kg |
| Stove Height | 610 mm |
| Stove Width | 380 mm |
| Stove Depth | 327 mm |
| Alternative Drawing Depth | 387 mm |
| Dimensions | 380 x 327 x 610 mm |
| Net Weight | 58 kg |
| Fuel Type | Wood Logs |
| Body Material | Cast Iron |
| Color | To Be Confirmed |
| Applicable Standard | EN13240 / EN16510 |
| Ecodesign Positioning | Ecodesign Compliant |
| Application | Residential Heating, Stove Retail, Heating Showroom Display, OEM Cast Iron Stove Projects |
Check the installation area, non-combustible floor protection, wall clearance,
ventilation path, and chimney access before installing Delta I.
Delta I is listed with 130 mm and 150 mm flue diameter options.
Confirm the exact version required before installation or quotation.
The rear pipe outlet axis height is 495 mm.
This should be checked during installation planning and chimney connection preparation.
Use dry and seasoned wood logs according to the product manual and local requirements.
The recommended maximum wood load is 3 kg. Do not overload the firebox.
Use the firebox dimensions and firebox opening size as reference for wood loading,
cleaning access, and daily stove operation.
The main table lists the stove depth as 327 mm, while a drawing note lists 387 mm.
Confirm the final approved drawing before bulk order or installation.
Check chimney draft and room ventilation before regular operation.
Correct draft condition is essential for safe and stable stove performance.
Clean the glass, firebox, and flue path regularly.
Periodic inspection should be performed according to the manual and local maintenance requirements.
Fireway supports stove importers, distributors, heating product brands, and OEM buyers
with integrated cast iron manufacturing capability.
Delta I is suitable for buyers who require a compact cast iron stove with 5 kW heat output,
80 percent efficiency, and flexible flue diameter options for practical use.
The model combines cast iron construction, compact body dimensions,
practical firebox structure, flue diameter flexibility, and clear technical specifications,
making it suitable for cast iron stove retail and distribution programs.
Delta I can be used as a reference model for private label cast iron stove development,
packaging customization, compact product portfolio expansion, and OEM stove cooperation.
Delta I is a cast iron wood burning stove designed for residential heating and distribution channels.
Delta I has a heat output of 5 kW.
Delta I is positioned with 80 percent stove efficiency.
Delta I is listed with 130 mm and 150 mm flue diameter options.
The rear pipe outlet axis height is 495 mm.
The firebox dimensions are 332 x 246 x 220 mm.
The firebox opening size is 280 x 270 mm.
The glass dimension is 268 x 312 x 4 mm.
The maximum wood load is 3 kg.
Delta I measures 380 mm wide, 327 mm deep, and 610 mm high.
The parameter table lists the depth as 327 mm, while the drawing note marks 387 mm. This should be checked against the final approved drawing before publishing or installation.
Delta I has a net weight of 58 kg.
Delta I is designed for wood logs.
Delta I is positioned as an EN13240 and EN16510 certified cast iron stove for B2B heating distribution channels.
Delta I is positioned as an Ecodesign compliant cast iron stove for markets requiring Ecodesign-related product documentation.
Yes. Delta I is suitable for importers, distributors, private label buyers, and OEM cast iron stove projects.
| Item | Delta I Cast Iron Stove | Common Steel Stove |
|---|---|---|
| Body Material | Cast Iron | Steel Plate |
| Efficiency | 80 percent | Depends on model configuration |
| Flue Flexibility | 130 mm / 150 mm options | Depends on model configuration |
| Compactness | Compact body for smaller spaces | Varies by model |
| Heat Output | 5 kW | Varies by model |
| Target Buyers | Importers, distributors, heating brands, OEM buyers | General retail buyers |
Delta I is a Fireway EN13240 and EN16510 certified cast iron stove with Ecodesign compliant positioning.
It is designed for residential heating, stove retail distribution, heating showroom display,
importers, distributors, private label buyers, and OEM stove programs.
Delta I features 5 kW heat output, 80 percent stove efficiency, 130 mm and 150 mm flue diameter options,
rear pipe outlet axis height of 495 mm, firebox dimensions of 332 x 246 x 220 mm,
firebox opening of 280 x 270 mm, glass dimension of 268 x 312 x 4 mm,
maximum wood load of 3 kg, overall dimensions of 380 x 327 x 610 mm,
an alternative drawing depth note of 387 mm, and a net weight of 58 kg.
Contact Fireway to request product specifications, EN13240 / EN16510 documents, OEM details, and wholesale quotation.
