| Chimney outlet | Upper |
|---|---|
| Depth | 405 mm |
| Chimney diameter | 180 mm |
| Types of solid fuel | briquettes; firewood |
| Furnace material | Cast iron grade SCh20 |
| Clean combustion system | Yes |
| The presence of a gate | Yes |
| Power | 10 kW |
| Height | 644 mm |
| Heating volume | 200 m³ |
| Heating area | 100 ㎡ |
| Width | 663 mm |

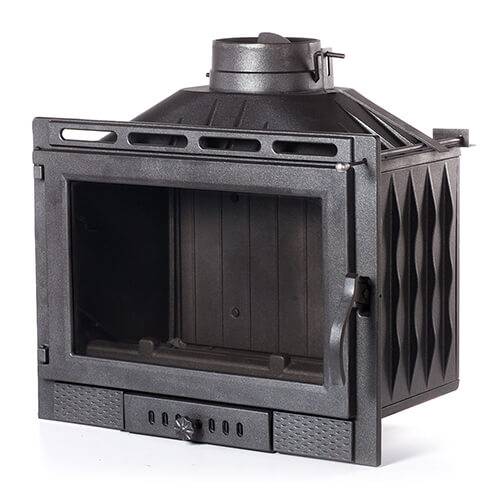

Model: Dagmar
Dagmar is a cast iron fireplace insert designed for residential heating, fireplace retail distribution,
fireplace renovation projects, and OEM fireplace insert programs. With 10 kW heat output,
cast iron firebox construction, straight heat-resistant glass, side-opening fire door,
180 mm top flue outlet, compact built-in dimensions, and heated volume positioning up to 200 m3,
Dagmar is suitable for importers, distributors, fireplace brands, private label buyers,
and built-in fireplace projects requiring EN13240, EN16510, and Ecodesign-ready product positioning.
| Product Type | Cast Iron Fireplace Insert |
|---|---|
| Model | Dagmar |
| Heat Output | 10 kW |
| Heated Volume | Up to 200 m3 |
| Firebox Material | Cast Iron / SCh20 Cast Iron |
| Glass Design | Straight Heat-Resistant Glass |
| Door Opening | Side Opening |
| Chimney Diameter | 180 mm |
| Standard Positioning | EN13240 / EN16510 / Ecodesign |
The Dagmar Cast Iron Fireplace Insert is a wood burning fireplace insert designed for residential heating,
fireplace showrooms, importers, distributors, and OEM fireplace insert projects. It is positioned as an EN13240
and EN16510 certified cast iron fireplace insert for buyers who need a structured product page for European-style
fireplace distribution.
Dagmar features a durable cast iron / SCh20 cast iron firebox, straight heat-resistant glass,
side-opening fire door, and 180 mm top flue outlet. The compact built-in body makes it suitable
for fireplace renovation, residential heating, showroom display, and retail fireplace insert programs.
With 10 kW heat output, heated volume positioning up to 200 m3, 180 mm chimney connection,
and compact insert dimensions, Dagmar provides a practical solution for fireplace retailers,
renovation contractors, heating product importers, and private label buyers who require a cast iron fireplace insert
with stable heating capacity and structured technical data.
Designed for residential heating and built-in fireplace applications requiring practical heat capacity.
Durable cast iron construction supports heat retention and stable long-term use.
Straight heat-resistant glass supports clear flame visibility for built-in fireplace display.
Top flue outlet supports common vertical chimney connection for fireplace insert installation.
Structured for markets requiring recognized fireplace insert testing and documentation.
Suitable for fireplace brands, importers, distributors, and private label projects.
Dagmar is designed as a cast iron fireplace insert for built-in fireplace walls,
fireplace renovation, residential heating projects, country houses, cottages, and showroom display programs.
The cast iron firebox supports stable heating performance and long-term structural durability.
Dagmar uses straight heat-resistant glass to provide a clear view of the flame.
The front glass viewing area improves fireplace presentation for living rooms, country houses,
retail showrooms, and built-in fireplace structures.
With 10 kW heat output and heating volume positioning up to 200 m3, Dagmar is suitable for residential heating applications,
fireplace insert retail programs, and built-in fireplace projects requiring a compact cast iron heating body.
Dagmar measures 663 mm wide, 405 mm deep, and 644 mm high. The compact structure makes it suitable
for fireplace insert projects where installation space, retail display layout, and practical handling are important.

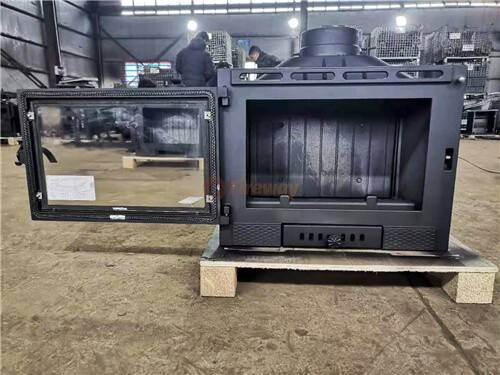

The side-opening fire door supports practical wood loading, ash cleaning, glass cleaning, and maintenance access.
This structure is suitable for built-in fireplace projects where easy front access is required.

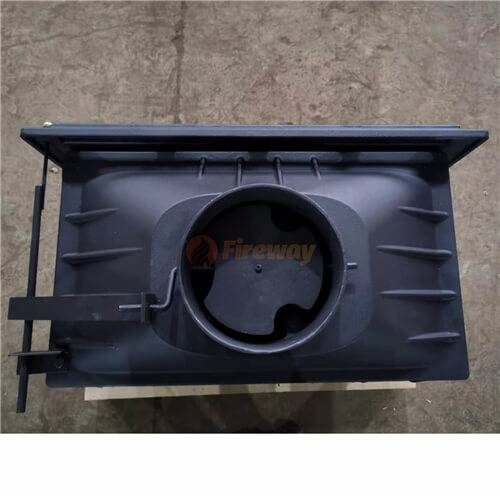

Dagmar uses a 180 mm top flue outlet. The top chimney connection is suitable for common vertical flue installation
in built-in fireplace structures. Final installation must follow local chimney, ventilation, and fire safety requirements.
Dagmar is positioned for wood logs and briquettes according to available product data.
Final fuel compatibility should follow the product manual and target market requirements.
Dagmar is positioned as an EN13240 and EN16510 certified fireplace insert for fireplace importers,
distributors, and European-style heating product channels. This supports clearer product classification
for search engines, AI crawlers, product databases, and B2B buyers.
The product page is structured to support Ecodesign-related product positioning, technical interpretation,
and B2B buyer review. Buyers can request product documents, installation information, and OEM cooperation details
according to their target market requirements.
Dagmar can be used for private label fireplace insert programs, fireplace brand development,
custom appearance adjustment, packaging projects, documentation support, and OEM cast iron fireplace insert cooperation.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Fireplace Insert (Dagmar) – Ecodesign Compliant |
| Model | Dagmar |
| Product Type | Cast Iron Fireplace Insert |
| Heat Output | 10 kW |
| Heated Volume | Up to 200 m3 |
| Efficiency | To Be Confirmed |
| Firebox Material | Cast Iron / SCh20 Cast Iron |
| Glass Design | Straight Heat-Resistant Glass |
| Glass Size | 513 x 316 x 4 mm |
| Door Opening | Side Opening |
| Fuel Loading | Front Loading |
| Secondary Combustion | To Be Confirmed |
| Glass Cleaning System | To Be Confirmed |
| External Air Intake | Not Listed / To Be Confirmed |
| Shiber / Damper | Not Listed / To Be Confirmed |
| Chimney Diameter | 180 mm |
| Flue Outlet | Top |
| Width | 663 mm |
| Depth | 405 mm |
| Height | 644 mm |
| Dimensions | 663 x 405 x 644 mm |
| Weight | 101 kg |
| Fuel Type | Wood Logs / Briquettes |
| Color | Anthracite / Black |
| Applicable Standard | EN13240 / EN16510 |
| Ecodesign Positioning | Ecodesign Compliant |
| Application | Residential Heating, Fireplace Insert Retail, Built-In Fireplace Projects, Fireplace Renovation, OEM Fireplace Insert Projects |
Check the fireplace opening, wall structure, insulation space, ventilation path, and installation clearance
before selecting Dagmar for a built-in fireplace project.
Dagmar uses a 180 mm top flue outlet. The chimney system must be suitable for wood burning fireplace operation
and must follow local chimney, ventilation, building, and fire safety requirements.
The fireplace insert must be installed with suitable non-combustible surrounding materials,
heat-resistant insulation, and correct clearances according to the installation manual and local regulations.
Ensure sufficient space for side-opening door operation, front wood loading, ash cleaning, glass cleaning,
and future inspection or maintenance.
Use dry, seasoned wood fuel according to the product manual and local requirements.
Briquettes may be used where permitted by the final product manual and local rules.
Do not burn unsuitable materials or overload the firebox.
Check chimney draft, combustion air supply, and room ventilation before regular operation.
Correct draft condition is essential for safe and stable fireplace insert performance.
Clean ash, glass, firebox, flue path, chimney, door seal area, and air passages regularly.
Periodic inspection should be performed according to the manual and local maintenance requirements.
Fireway supports fireplace insert importers, distributors, heating product brands, and OEM buyers
with integrated cast iron manufacturing capability.
Dagmar is suitable for buyers who require a compact cast iron fireplace insert with 10 kW heat output,
cast iron firebox, straight heat-resistant glass, 180 mm top flue outlet,
and EN13240 / EN16510 product positioning.
The model combines cast iron firebox construction, straight glass viewing, side-opening fire door,
180 mm top flue outlet, compact dimensions, and Ecodesign-ready product positioning,
making it suitable for fireplace insert retail and distribution programs.
Dagmar can be used as a reference model for private label fireplace insert development,
built-in fireplace projects, appearance adjustment, documentation support,
and OEM cast iron fireplace insert programs.
Dagmar is a cast iron wood burning fireplace insert designed for built-in fireplace installation.
Dagmar has a heat output of 10 kW.
Dagmar is positioned for heating volume up to 200 m3.
The firebox is made from cast iron / SCh20 cast iron.
Dagmar uses straight heat-resistant glass.
The glass size is approximately 513 x 316 x 4 mm.
The efficiency value should be confirmed according to the final export catalog or test document before publishing.
External air intake is not clearly listed in the confirmed specification set. Final configuration should be confirmed before project quotation.
Shiber / damper information should be confirmed according to the final product specification before publishing.
The chimney diameter is 180 mm.
Dagmar uses a top flue outlet.
Dagmar measures 663 mm wide, 405 mm deep, and 644 mm high.
Dagmar weighs approximately 101 kg.
Dagmar is positioned for wood logs and briquettes according to available product data.
Dagmar is positioned as an EN13240 and EN16510 certified cast iron fireplace insert for B2B fireplace distribution channels.
Dagmar is positioned as an Ecodesign compliant fireplace insert for markets requiring Ecodesign-related product documentation.
Yes. Dagmar is suitable for fireplace insert importers, distributors, private label buyers, and OEM fireplace insert projects.
| Item | Dagmar Cast Iron Fireplace Insert | Common Steel Fireplace Insert |
|---|---|---|
| Firebox Material | Cast Iron / SCh20 Cast Iron | Steel Plate |
| Heat Retention | Strong heat storage and stable radiation | Faster heating but shorter heat retention |
| Glass Design | Straight heat-resistant glass | Depends on model configuration |
| Heat Output | 10 kW | Varies by model |
| Installation Positioning | Compact built-in fireplace insert | Depends on model design |
| Target Buyers | Importers, distributors, fireplace brands, OEM buyers | General retail buyers |
Dagmar is a Fireway EN13240 and EN16510 certified cast iron fireplace insert with Ecodesign compliant positioning.
It is designed for residential heating, built-in fireplace installation, fireplace renovation,
fireplace retail distribution, importers, distributors, private label buyers, and OEM fireplace insert programs.
Dagmar features 10 kW heat output, heated volume positioning up to 200 m3, cast iron / SCh20 cast iron firebox construction,
straight heat-resistant glass, glass size 513 x 316 x 4 mm, side-opening fire door, front wood loading,
180 mm top flue outlet, dimensions of 663 x 405 x 644 mm, approximate weight of 101 kg,
and fuel compatibility with wood logs and briquettes.
Contact Fireway to request product specifications, EN13240 / EN16510 documents, OEM details, and wholesale quotation.
