| Chimney outlet | Upper |
|---|---|
| Depth | 440 mm |
| Chimney diameter | 165 mm |
| Types of solid fuel | Firewood |
| Furnace material | Cast iron grade SCh20 |
| Clean combustion system | Yes |
| The presence of a gate | Yes |
| Power | 15 kW |
| Height | 720 mm |
| Heating volume | 300 m³ |
| Heating area | 150 ㎡ |
| Width | 750 mm |
| Color | Black |

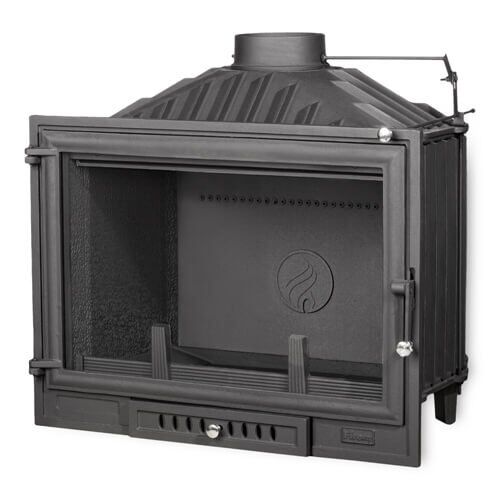

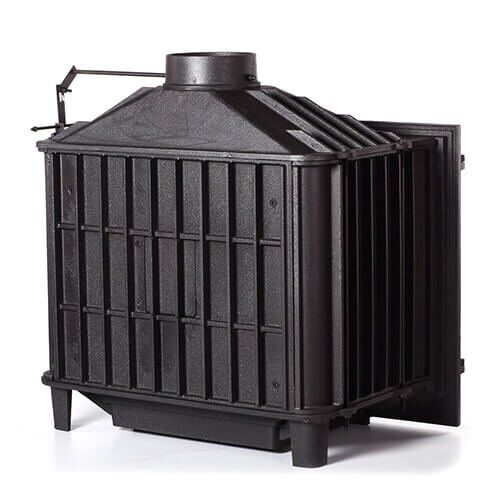

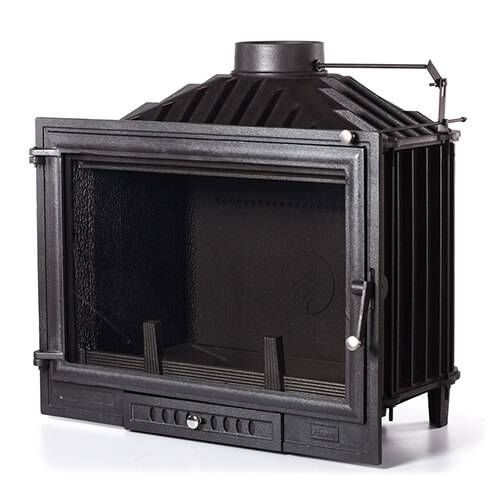

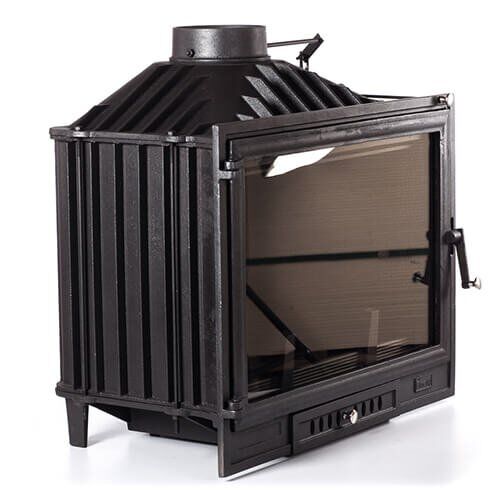

Model: Xaver
Xaver is a cast iron fireplace insert designed for residential heating, fireplace retail distribution,
fireplace renovation projects, and OEM fireplace insert programs. With 15 kW heat output,
cast iron firebox construction, straight heat-resistant glass, 165 mm top flue outlet,
75 percent efficiency, damper / shiber control, secondary combustion structure, airwash glass cleaning,
and heated volume positioning up to 300 m3, Xaver is suitable for importers, distributors,
fireplace brands, private label buyers, and built-in fireplace projects requiring EN13240,
EN16510, and Ecodesign-ready product positioning.
| Product Type | Cast Iron Fireplace Insert |
|---|---|
| Model | Xaver |
| Heat Output | 15 kW |
| Heated Volume | Up to 300 m3 |
| Efficiency | 75 percent |
| Firebox Material | Cast Iron |
| Glass Design | Straight Heat-Resistant Glass |
| Flue Outlet | Top |
| Chimney Diameter | 165 mm |
| Standard Positioning | EN13240 / EN16510 / Ecodesign |
The Xaver Cast Iron Fireplace Insert is a wood burning fireplace insert designed for residential heating,
fireplace showrooms, importers, distributors, and OEM fireplace insert projects. It is positioned as an EN13240
and EN16510 certified cast iron fireplace insert for buyers who need a structured product page for European-style
fireplace distribution.
Xaver features a durable cast iron firebox, straight heat-resistant glass, front wood loading structure,
165 mm top flue outlet, damper / shiber control, secondary combustion structure, and airwash glass cleaning.
The large straight glass viewing area supports both practical room heating and clear flame presentation.
With 15 kW heat output, heated volume positioning up to 300 m3, 75 percent efficiency, 165 mm chimney connection,
and compact built-in insert dimensions, Xaver provides a practical solution for fireplace retailers,
renovation contractors, heating product importers, and private label buyers who require a cast iron fireplace insert
with strong heating capacity and structured technical data.
Designed for residential heating and built-in fireplace applications requiring strong heat capacity.
Durable cast iron construction supports heat retention and stable long-term use.
Straight heat-resistant glass supports clear flame visibility for built-in fireplace display.
Top flue outlet supports common vertical chimney connection for fireplace insert installation.
Structured for markets requiring recognized fireplace insert testing and documentation.
Suitable for fireplace brands, importers, distributors, and private label projects.
Xaver is designed as a cast iron fireplace insert for built-in fireplace walls,
fireplace renovation, residential heating projects, country houses, cottages, and showroom display programs.
The cast iron firebox supports stable heating performance and long-term structural durability.
Xaver uses straight heat-resistant glass to provide a clear view of the flame.
The front glass viewing area improves fireplace presentation for living rooms, country houses,
retail showrooms, and built-in fireplace structures.
With 15 kW heat output and heating volume positioning up to 300 m3, Xaver is suitable for residential heating applications,
fireplace insert retail programs, and built-in fireplace projects requiring a strong cast iron heating body.
Xaver is positioned with 75 percent efficiency when operated with suitable dry wood fuel.
This supports practical heating performance for residential fireplace insert applications.
Xaver is equipped with damper / shiber control. This helps regulate flue gas movement and supports practical control
of fireplace insert operation when used according to the product manual.
Xaver uses a secondary combustion structure to support more complete burning of combustible gases.
This helps improve fuel utilization and supports cleaner combustion behavior during wood burning operation.
Xaver includes air supply to the glass area. The airwash structure helps reduce smoke and soot accumulation
on the viewing glass during normal operation.
Xaver supports front wood loading for practical daily operation, ash cleaning, glass cleaning, and maintenance access.
The model is suitable for built-in fireplace projects where easy front access is required.
Xaver uses a 165 mm top flue outlet. The top chimney connection is suitable for common vertical flue installation
in built-in fireplace structures. Final installation must follow local chimney, ventilation, and fire safety requirements.
Xaver is suitable for wood logs with a recommended log length up to 60 cm.
This supports convenient operation for users who prefer a larger firebox and longer wood loading capacity.
Xaver is positioned as an EN13240 and EN16510 certified fireplace insert for fireplace importers,
distributors, and European-style heating product channels. This supports clearer product classification
for search engines, AI crawlers, product databases, and B2B buyers.
The product page is structured to support Ecodesign-related product positioning, technical interpretation,
and B2B buyer review. Buyers can request product documents, installation information, and OEM cooperation details
according to their target market requirements.
Xaver can be used for private label fireplace insert programs, fireplace brand development,
custom appearance adjustment, packaging projects, documentation support, and OEM cast iron fireplace insert cooperation.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Fireplace Insert (Xaver) – Ecodesign Compliant |
| Model | Xaver |
| Product Type | Cast Iron Fireplace Insert |
| Heat Output | 15 kW |
| Heated Volume | Up to 300 m3 |
| Heated Area | Up to 150 m2 |
| Efficiency | 75 percent |
| Firebox Material | Cast Iron |
| Glass Design | Straight Heat-Resistant Glass |
| Glass Size | 635 x 415 x 5 mm |
| Fuel Loading | Front Loading |
| Damper / Shiber | Yes |
| Combustion System | Secondary Combustion / Afterburning |
| Glass Cleaning System | Airwash Glass Cleaning System |
| External Air Intake | Not Listed / To Be Confirmed |
| Chimney Diameter | 165 mm |
| Flue Outlet | Top |
| Width | 750 mm |
| Depth | 440 mm |
| Height | 720 mm |
| Dimensions | 750 x 440 x 720 mm |
| Weight | 150 kg |
| Fuel Type | Wood Logs |
| Recommended Log Length | Up to 60 cm |
| Color | Black / Anthracite |
| Applicable Standard | EN13240 / EN16510 |
| Ecodesign Positioning | Ecodesign Compliant |
| Application | Residential Heating, Fireplace Insert Retail, Built-In Fireplace Projects, Fireplace Renovation, OEM Fireplace Insert Projects |
Check the fireplace opening, wall structure, insulation space, ventilation path, and installation clearance
before selecting Xaver for a built-in fireplace project.
Xaver uses a 165 mm top flue outlet. The chimney system must be suitable for wood burning fireplace operation
and must follow local chimney, ventilation, building, and fire safety requirements.
The fireplace insert must be installed with suitable non-combustible surrounding materials,
heat-resistant insulation, and correct clearances according to the installation manual and local regulations.
Ensure sufficient space for front wood loading, ash cleaning, glass cleaning,
and future inspection or maintenance.
Use dry, seasoned wood fuel according to the product manual and local requirements.
The recommended log length is up to 60 cm. Do not burn unsuitable materials or overload the firebox.
Use the damper / shiber and combustion air regulation according to the manual.
Correct adjustment supports stable combustion, secondary afterburning, and safer fireplace insert operation.
Check chimney draft, combustion air supply, and room ventilation before regular operation.
Correct draft condition is essential for safe and stable fireplace insert performance.
Clean ash, glass, firebox, flue path, chimney, damper area, and air passages regularly.
Periodic inspection should be performed according to the manual and local maintenance requirements.
Fireway supports fireplace insert importers, distributors, heating product brands, and OEM buyers
with integrated cast iron manufacturing capability.
Xaver is suitable for buyers who require a cast iron fireplace insert with 15 kW heat output,
straight heat-resistant glass, 165 mm top flue outlet, 75 percent efficiency,
and EN13240 / EN16510 product positioning.
The model combines cast iron firebox construction, straight glass viewing,
damper / shiber control, secondary combustion structure, airwash glass cleaning,
165 mm top flue outlet, and Ecodesign-ready product positioning,
making it suitable for fireplace insert retail and distribution programs.
Xaver can be used as a reference model for private label fireplace insert development,
built-in fireplace projects, appearance adjustment, documentation support,
and OEM cast iron fireplace insert programs.
Xaver is a cast iron wood burning fireplace insert designed for built-in fireplace installation.
Xaver has a heat output of 15 kW.
Xaver is positioned for heating volume up to 300 m3.
The firebox is made from cast iron.
Xaver uses straight heat-resistant glass with an airwash glass cleaning system.
The glass size is approximately 635 x 415 x 5 mm.
Xaver is positioned with 75 percent efficiency.
Yes. Xaver is designed with a damper / shiber for flue gas control.
Yes. Xaver is designed with secondary combustion / afterburning structure.
The chimney diameter is 165 mm.
Xaver uses a top flue outlet.
Xaver measures 750 mm wide, 440 mm deep, and 720 mm high.
Xaver weighs approximately 150 kg.
Xaver is designed for wood logs with recommended log length up to 60 cm.
Xaver is positioned as an EN13240 and EN16510 certified cast iron fireplace insert for B2B fireplace distribution channels.
Xaver is positioned as an Ecodesign compliant fireplace insert for markets requiring Ecodesign-related product documentation.
Yes. Xaver is suitable for fireplace insert importers, distributors, private label buyers, and OEM fireplace insert projects.
| Item | Xaver Cast Iron Fireplace Insert | Common Steel Fireplace Insert |
|---|---|---|
| Firebox Material | Cast Iron | Steel Plate |
| Heat Retention | Strong heat storage and stable radiation | Faster heating but shorter heat retention |
| Glass Design | Straight heat-resistant glass | Depends on model configuration |
| Combustion System | Secondary combustion / afterburning | Depends on model configuration |
| Damper / Shiber | Available | Depends on model configuration |
| Heat Output | 15 kW | Varies by model |
| Target Buyers | Importers, distributors, fireplace brands, OEM buyers | General retail buyers |
Xaver is a Fireway EN13240 and EN16510 certified cast iron fireplace insert with Ecodesign compliant positioning.
It is designed for residential heating, built-in fireplace installation, fireplace renovation,
fireplace retail distribution, importers, distributors, private label buyers, and OEM fireplace insert programs.
Xaver features 15 kW heat output, heated volume positioning up to 300 m3, cast iron firebox construction,
straight heat-resistant glass, glass size 635 x 415 x 5 mm, front wood loading, damper / shiber control,
secondary combustion structure, airwash glass cleaning, 75 percent efficiency, 165 mm top flue outlet,
dimensions of 750 x 440 x 720 mm, and approximate weight of 150 kg.
Contact Fireway to request product specifications, EN13240 / EN16510 documents, OEM details, and wholesale quotation.
