| Chimney outlet | Upper |
|---|---|
| Depth | 490 mm |
| Chimney diameter | 180 mm |
| Types of solid fuel | Firewood |
| Furnace material | Cast iron grade SCh20 |
| Clean combustion system | Yes |
| The presence of a gate | Yes |
| Power | 14 kW |
| Height | 840 mm |
| Heating volume | 280 m³ |
| Width | 700 mm |
| How to open the firebox door | Lateral |
| Firebox glass shape | Straight |
Model: Main

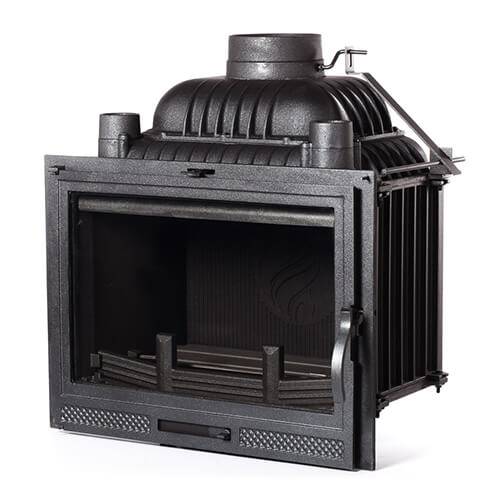

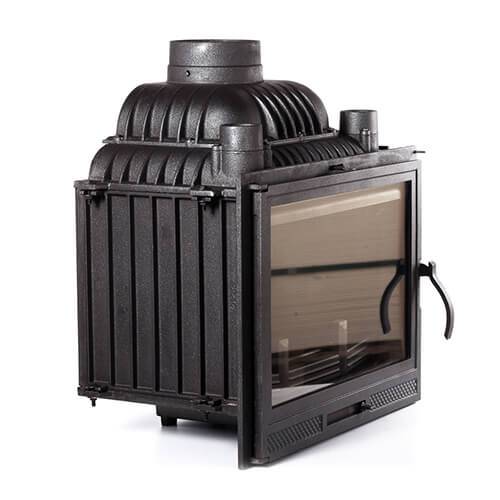

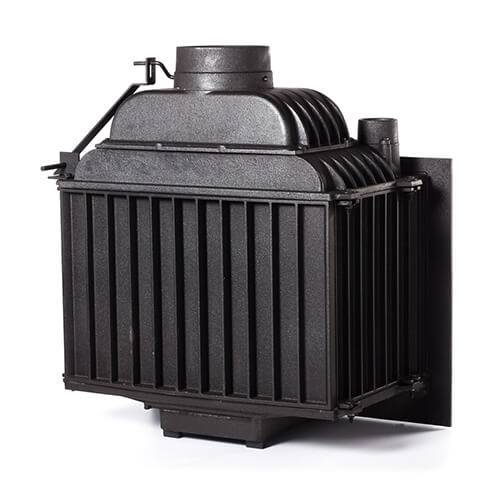

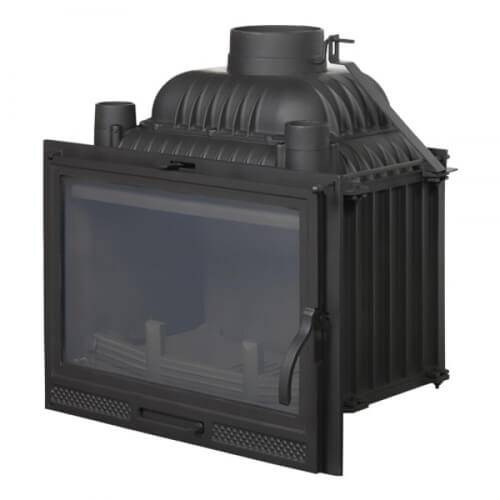

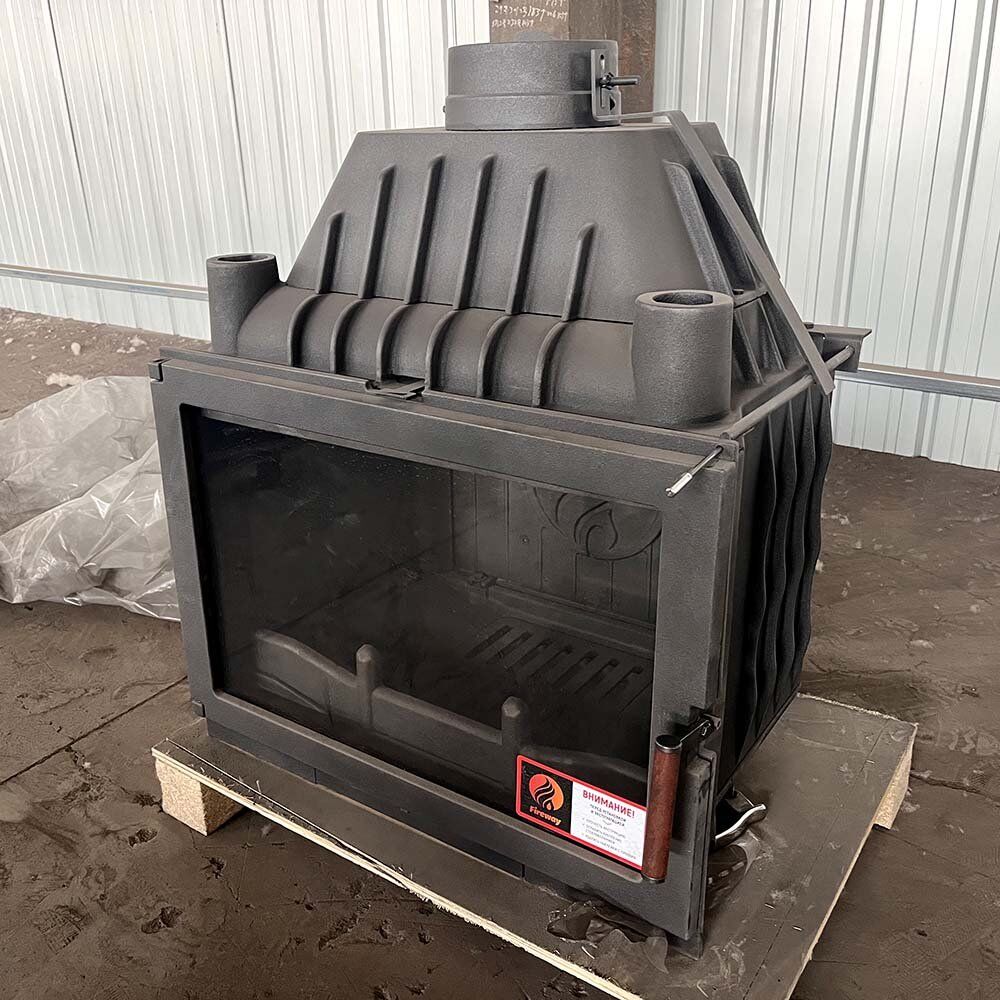

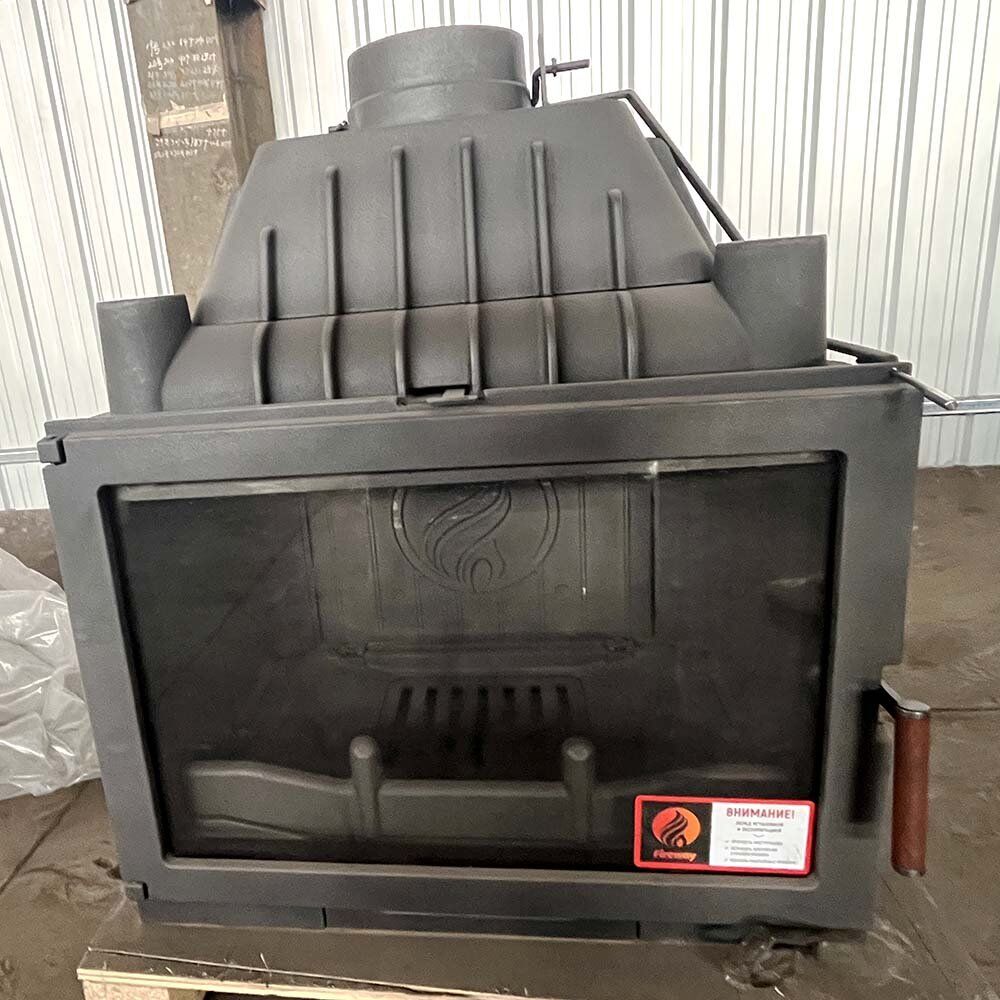

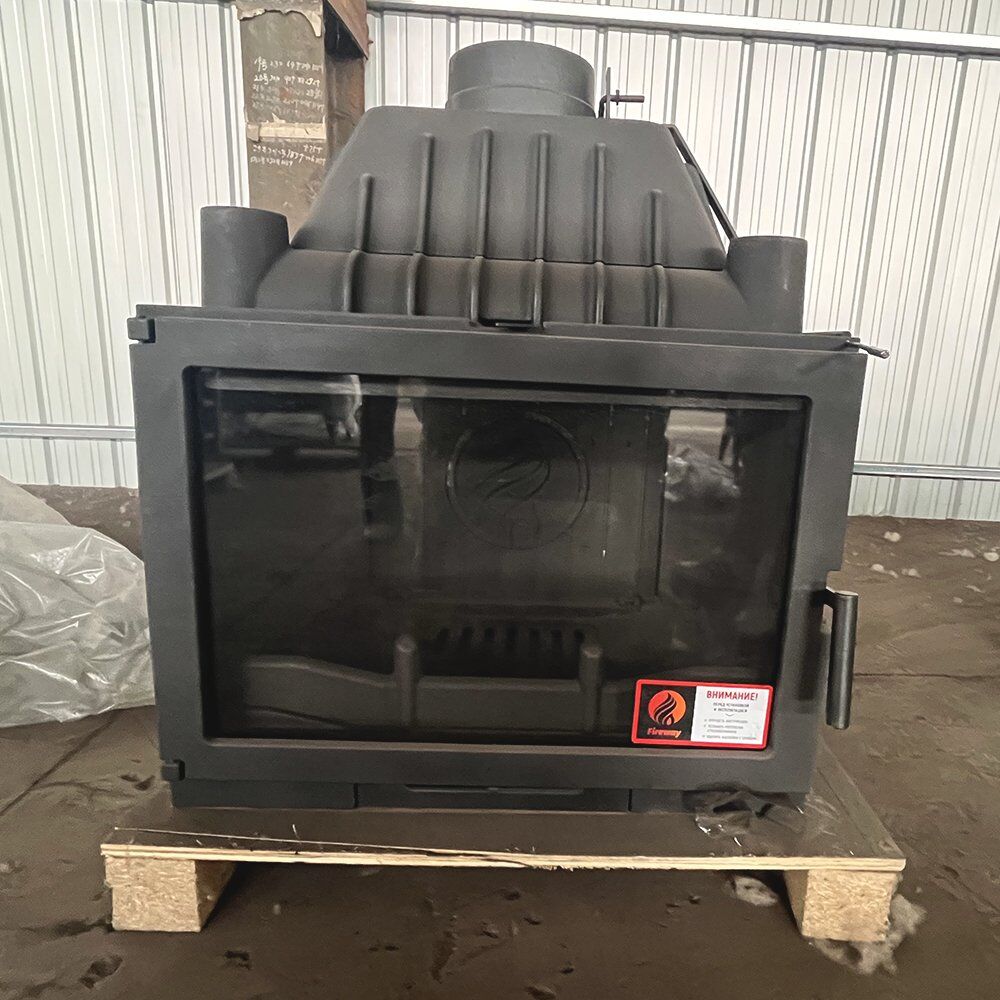

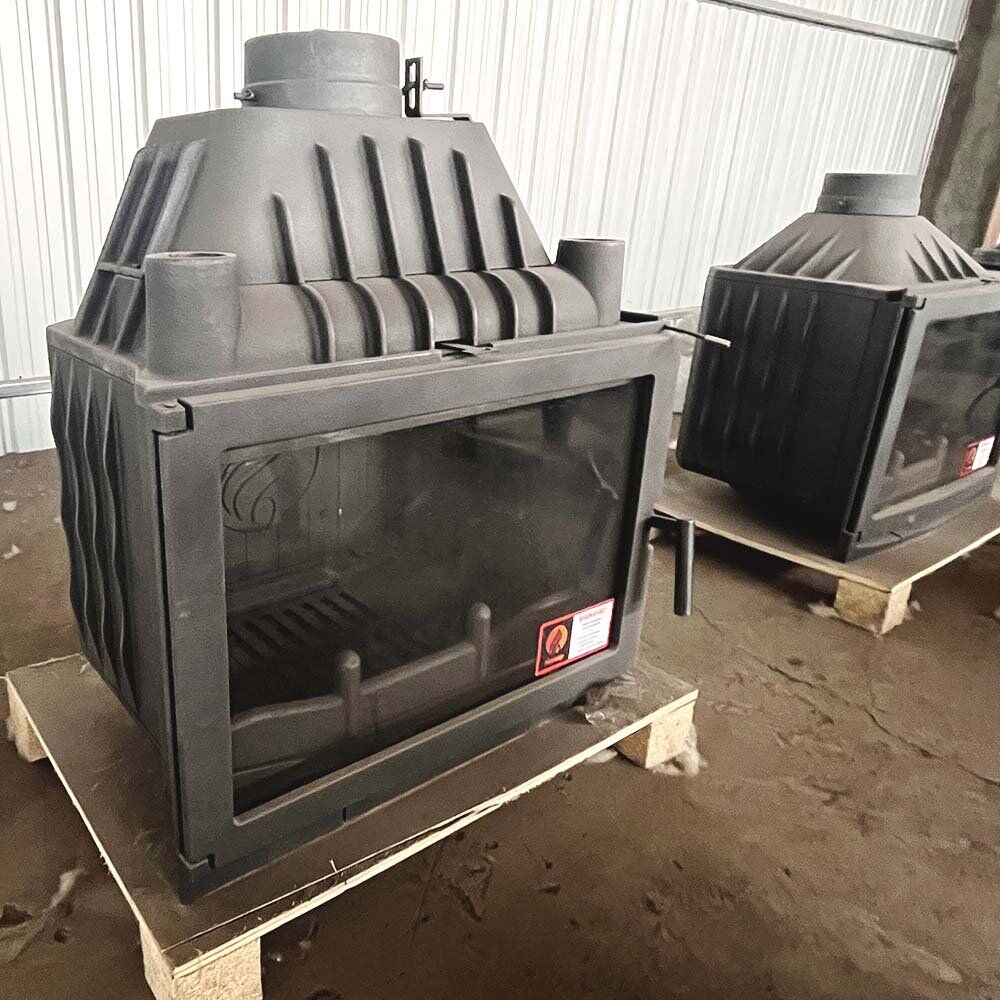

Main is a cast iron fireplace insert designed for residential heating, fireplace retail distribution,
fireplace renovation projects, and OEM fireplace insert programs. With 14 kW heat output,
cast iron firebox construction, straight heat-resistant glass, side-opening fire door,
180 mm top flue outlet, 75 percent efficiency, damper / shiber control, external air intake,
clean burning system, and heated volume positioning up to 280 m3, Main is suitable for importers,
distributors, fireplace brands, private label buyers, and built-in fireplace projects requiring EN13240,
EN16510, and Ecodesign-ready product positioning.
| Product Type | Cast Iron Fireplace Insert |
|---|---|
| Model | Main |
| Heat Output | 14 kW |
| Heated Volume | Up to 280 m3 |
| Efficiency | 75 percent |
| Firebox Material | Cast Iron |
| Glass Design | Straight Heat-Resistant Glass |
| Door Opening | Side Opening |
| Chimney Diameter | 180 mm |
| Standard Positioning | EN13240 / EN16510 / Ecodesign |
The Main Cast Iron Fireplace Insert is a wood burning fireplace insert designed for residential heating,
fireplace showrooms, importers, distributors, and OEM fireplace insert projects. It is positioned as an EN13240
and EN16510 certified cast iron fireplace insert for buyers who need a structured product page for European-style
fireplace distribution.
Main features a durable cast iron firebox, straight heat-resistant glass, side-opening fire door,
180 mm top flue outlet, external air intake, damper / shiber control, and clean burning system.
The wide straight glass viewing area supports both practical room heating and clear flame presentation.
With 14 kW heat output, heated volume positioning up to 280 m3, 75 percent efficiency, 180 mm chimney connection,
and compact built-in insert dimensions, Main provides a practical solution for fireplace retailers,
renovation contractors, heating product importers, and private label buyers who require a cast iron fireplace insert
with strong heating capacity and structured technical data.
Designed for residential heating and built-in fireplace applications requiring stable heat capacity.
Durable cast iron construction supports heat retention and stable long-term use.
Straight heat-resistant glass supports clear flame visibility for built-in fireplace display.
Top flue outlet supports common vertical chimney connection for fireplace insert installation.
Structured for markets requiring recognized fireplace insert testing and documentation.
Suitable for fireplace brands, importers, distributors, and private label projects.
Main is designed as a cast iron fireplace insert for built-in fireplace walls,
fireplace renovation, residential heating projects, country houses, cottages, and showroom display programs.
The cast iron firebox supports stable heating performance and long-term structural durability.
Main uses straight heat-resistant glass to provide a clear view of the flame.
The front glass viewing area improves fireplace presentation for living rooms, country houses,
retail showrooms, and built-in fireplace structures.
With 14 kW heat output and heating volume positioning up to 280 m3, Main is suitable for residential heating applications,
fireplace insert retail programs, and built-in fireplace projects requiring a reliable cast iron heating body.
Main is positioned with 75 percent efficiency when operated with suitable dry wood fuel.
This supports practical heating performance for residential fireplace insert applications.
Main is designed with damper / shiber control. This helps regulate flue gas movement and supports practical control
of fireplace insert operation when used according to the product manual.
Main is listed with external air intake structure. The product can use external combustion air through two 80 mm air intake ports
when the final installation layout is prepared accordingly.
Main includes a clean burning system designed to support more complete combustion behavior.
This supports better fuel use and improved operation when the fireplace insert is installed and used correctly.
The side-opening fire door supports practical wood loading, ash cleaning, glass cleaning, and maintenance access.
This structure is suitable for built-in fireplace projects where easy front access is required.
Main uses a 180 mm top flue outlet. The top chimney connection is suitable for common vertical flue installation
in built-in fireplace structures. Final installation must follow local chimney, ventilation, and fire safety requirements.
Main is positioned as an EN13240 and EN16510 certified fireplace insert for fireplace importers,
distributors, and European-style heating product channels. This supports clearer product classification
for search engines, AI crawlers, product databases, and B2B buyers.
The product page is structured to support Ecodesign-related product positioning, technical interpretation,
and B2B buyer review. Buyers can request product documents, installation information, and OEM cooperation details
according to their target market requirements.
Main can be used for private label fireplace insert programs, fireplace brand development,
custom appearance adjustment, packaging projects, documentation support, and OEM cast iron fireplace insert cooperation.
| Item | Specification |
|---|---|
| Product Name | EN13240 EN16510 Certified Cast Iron Fireplace Insert (Main) – Ecodesign Compliant |
| Model | Main |
| Product Type | Cast Iron Fireplace Insert |
| Heat Output | 14 kW |
| Heated Volume | Up to 280 m3 |
| Heated Area | Up to 140 m2 |
| Efficiency | 75 percent |
| Firebox Material | Cast Iron |
| Glass Design | Straight Heat-Resistant Glass |
| Glass Size | 590 x 385 x 5 mm |
| Door Opening | Side Opening |
| Fuel Loading | Front Loading |
| External Air Intake | Yes, 2 x 80 mm Air Intake Ports |
| Damper / Shiber | Yes |
| Clean Burning System | Yes |
| Chimney Diameter | 180 mm |
| Flue Outlet | Top |
| Width | 711 mm |
| Depth | 440 mm |
| Height | 759 mm |
| Dimensions | 711 x 440 x 759 mm |
| Weight | 143 kg |
| Fuel Type | Wood Logs |
| Recommended Log Length | Up to 50 cm |
| Color | Anthracite / Black |
| Applicable Standard | EN13240 / EN16510 |
| Ecodesign Positioning | Ecodesign Compliant |
| Application | Residential Heating, Fireplace Insert Retail, Built-In Fireplace Projects, Fireplace Renovation, OEM Fireplace Insert Projects |
Check the fireplace opening, wall structure, insulation space, ventilation path, and installation clearance
before selecting Main for a built-in fireplace project.
Main uses a 180 mm top flue outlet. The chimney system must be suitable for wood burning fireplace operation
and must follow local chimney, ventilation, building, and fire safety requirements.
The fireplace insert must be installed with suitable non-combustible surrounding materials,
heat-resistant insulation, and correct clearances according to the installation manual and local regulations.
Ensure sufficient space for side-opening door operation, front wood loading, ash cleaning, glass cleaning,
and future inspection or maintenance.
If the project uses external combustion air, confirm the two 80 mm air intake path, connection method,
and local installation requirements before final assembly.
Use dry, seasoned wood fuel according to the product manual and local requirements.
The recommended log length is up to 50 cm. Do not burn unsuitable materials or overload the firebox.
Use the damper / shiber and combustion air regulation according to the manual.
Correct adjustment supports stable combustion and safer fireplace insert operation.
Check chimney draft, combustion air supply, and room ventilation before regular operation.
Correct draft condition is essential for safe and stable fireplace insert performance.
Clean ash, glass, firebox, flue path, chimney, damper area, and air passages regularly.
Periodic inspection should be performed according to the manual and local maintenance requirements.
Fireway supports fireplace insert importers, distributors, heating product brands, and OEM buyers
with integrated cast iron manufacturing capability.
Main is suitable for buyers who require a cast iron fireplace insert with 14 kW heat output,
straight heat-resistant glass, 180 mm top flue outlet, 75 percent efficiency,
and EN13240 / EN16510 product positioning.
The model combines cast iron firebox construction, straight glass viewing, side-opening fire door,
damper / shiber control, external air intake, clean burning system, 180 mm top flue outlet,
and Ecodesign-ready product positioning, making it suitable for fireplace insert retail and distribution programs.
Main can be used as a reference model for private label fireplace insert development,
built-in fireplace projects, appearance adjustment, documentation support,
and OEM cast iron fireplace insert programs.
Main is a cast iron wood burning fireplace insert designed for built-in fireplace installation.
Main has a heat output of 14 kW.
Main is positioned for heating volume up to 280 m3.
The firebox is made from cast iron.
Main uses straight heat-resistant glass.
The glass size is approximately 590 x 385 x 5 mm.
Main is positioned with 75 percent efficiency.
Yes. Main is designed with a damper / shiber for flue gas control.
Yes. Main is listed with external air intake through two 80 mm air intake ports.
The chimney diameter is 180 mm.
Main uses a top flue outlet.
Main measures 711 mm wide, 440 mm deep, and 759 mm high.
Main weighs approximately 143 kg.
Main is designed for wood logs with recommended log length up to 50 cm.
Main is positioned as an EN13240 and EN16510 certified cast iron fireplace insert for B2B fireplace distribution channels.
Main is positioned as an Ecodesign compliant fireplace insert for markets requiring Ecodesign-related product documentation.
Yes. Main is suitable for fireplace insert importers, distributors, private label buyers, and OEM fireplace insert projects.
| Item | Main Cast Iron Fireplace Insert | Common Steel Fireplace Insert |
|---|---|---|
| Firebox Material | Cast Iron | Steel Plate |
| Heat Retention | Strong heat storage and stable radiation | Faster heating but shorter heat retention |
| Glass Design | Straight heat-resistant glass | Depends on model configuration |
| External Air Intake | Available | Depends on model configuration |
| Damper / Shiber | Available | Depends on model configuration |
| Heat Output | 14 kW | Varies by model |
| Target Buyers | Importers, distributors, fireplace brands, OEM buyers | General retail buyers |
Main is a Fireway EN13240 and EN16510 certified cast iron fireplace insert with Ecodesign compliant positioning.
It is designed for residential heating, built-in fireplace installation, fireplace renovation,
fireplace retail distribution, importers, distributors, private label buyers, and OEM fireplace insert programs.
Main features 14 kW heat output, heated volume positioning up to 280 m3, cast iron firebox construction,
straight heat-resistant glass, glass size 590 x 385 x 5 mm, side-opening fire door, front wood loading,
damper / shiber control, external air intake with 2 x 80 mm air intake ports, clean burning system,
75 percent efficiency, 180 mm top flue outlet, dimensions of 711 x 440 x 759 mm,
and approximate weight of 143 kg.
